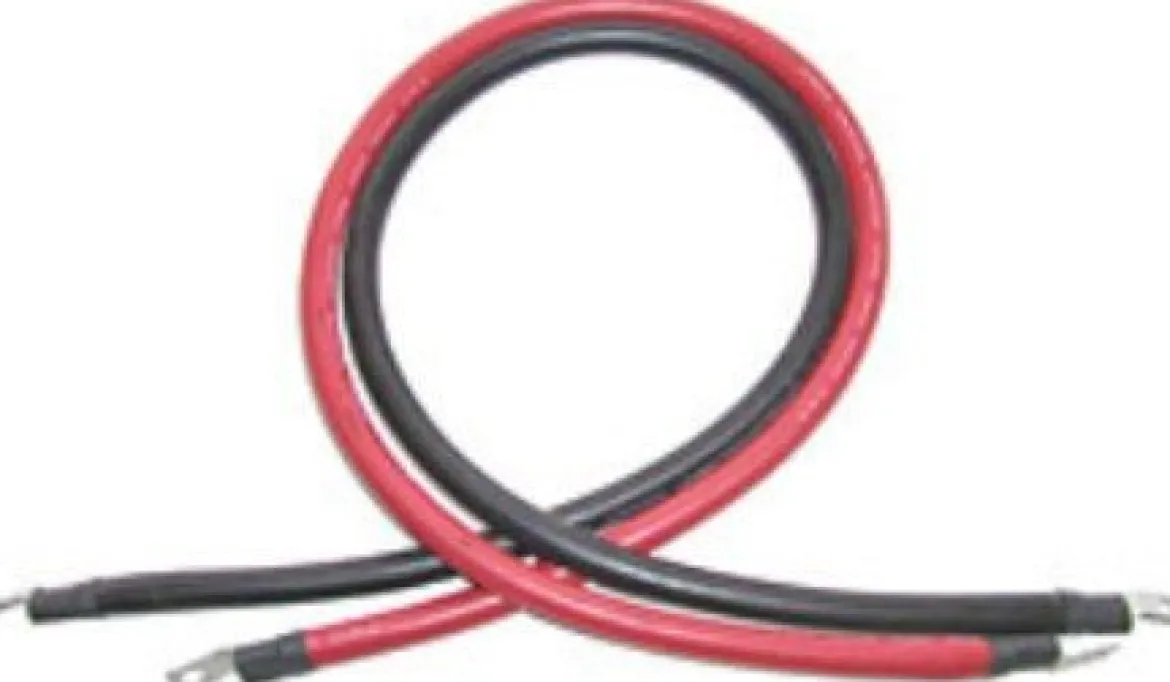

AIMS Power 1 Foot Inverter Cable 157 Amps Max (CBL01FT4AWG)

AIMS Power 4 AWG UL Certified Lugged Cable Set is a high-quality, flexible cable designed for a wide range of applications including inverter systems, battery chargers, motor leads, and power hookups. It’s ideal for use in uninterruptible power supply equipment, transformers, switchboard panels, and more. The cable is highly resistant to moisture, abrasion, acids, diesel fuel, and oil, making it durable for tough environments. Its extra flexibility makes it easy to work with, and it is RT4 rated for outdoor use.

Key Features & Specifications:

• Cable Type: 4 AWG UL Certified
• Lugged Ends: Both ends are pre-lugged for easy installation
• Inverter Compatibility: 1500W 12VDC, 2000W 24VDC (high surge), 3000W 24VDC
• Material: Polyvinyl chloride (PVC) – flame retardant, moisture, abrasion, acid, diesel fuel, and oil resistant
• Flexibility: Extra flexible, RT4 rated for outdoor use
• Max Current: 155A
• Max Temperature: 105°C
• Weight: 0.5 lbs per foot per set (includes one red and one black cable)
• Outer Diameter: 0.43 inches
• Lug Diameter: 3/8 inches
• Voltage Rating: 600V
• Conductor: Soft drawn bare copper, ASTM B172
• Certifications: UL 1338 & UL 10070, BC-5W2
