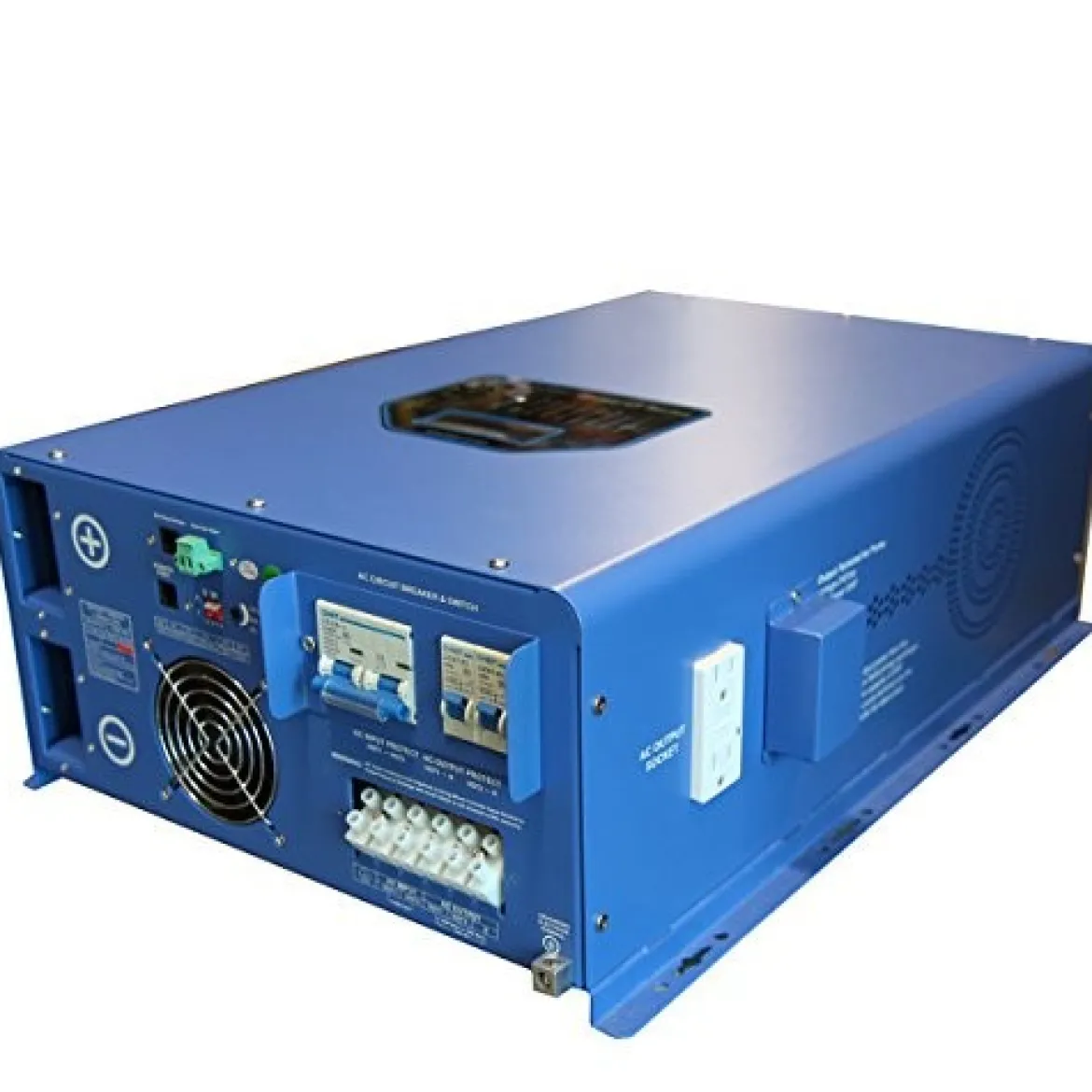

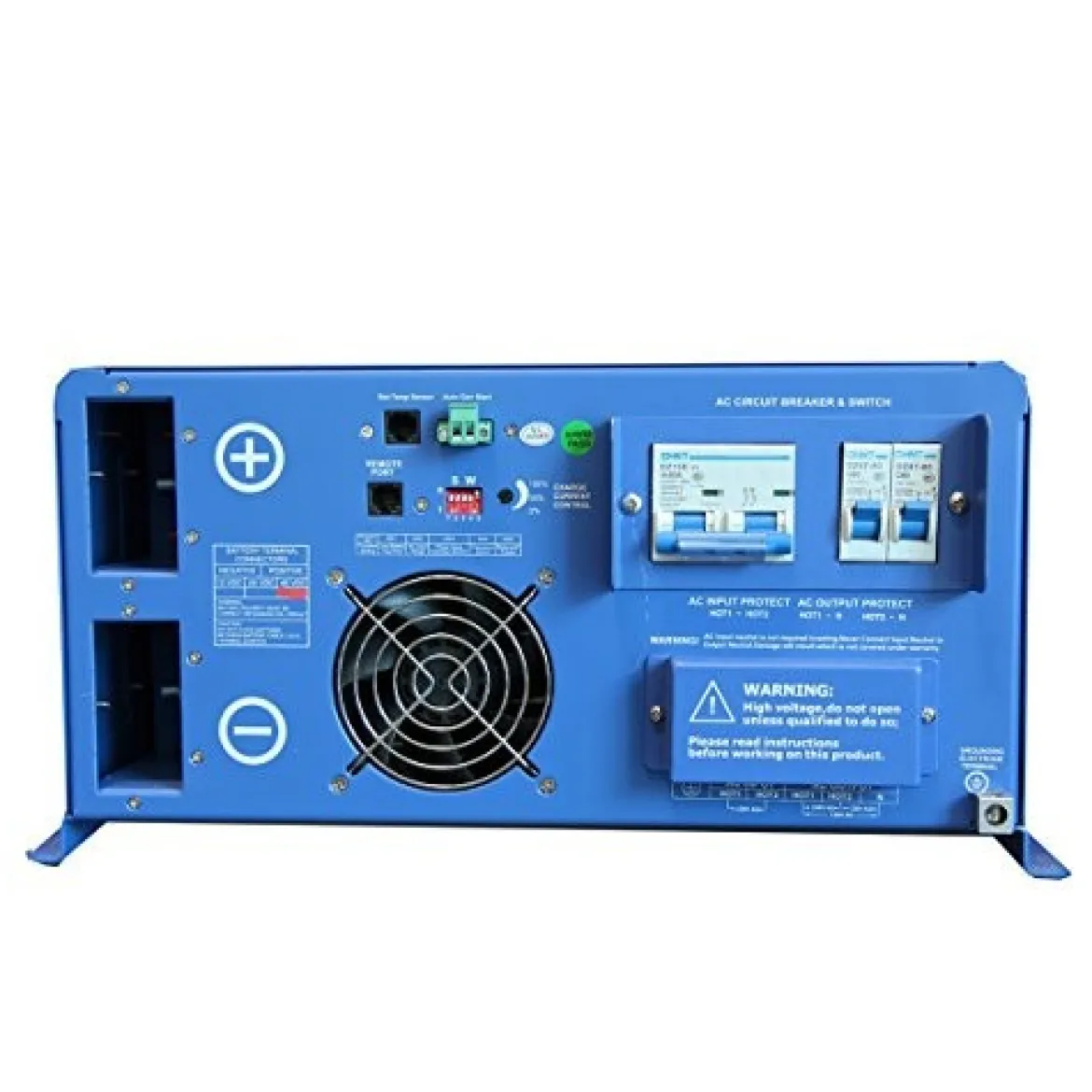

AIMS Power 10,000 Watt Pure Sine Inverter Charger 48VDC (PICOGLF10KW48V240VS)

AIMS Power 10,000 Watt Pure Sine Inverter Charger is a reliable, high-performance power solution designed for off-grid, RV, and commercial applications. This inverter charger features a multi-stage smart charger, which supports various battery types such as GEL, Lead, AGM, and Lithium. With a selectable power-save mode, it ensures maximum energy efficiency, while the automatic transfer switch enables seamless operation. The inverter also includes essential protection features such as a battery priority selector, temperature compensation, and a marine-coated design for added durability in challenging environments. The extremely quick transfer time and remote panel compatibility enhance the usability and convenience of this inverter charger, making it a great choice for both residential and commercial solar systems.

Key Features & Specifications:

• Continuous Output Power: 10,000 Watts
• Surge Rating: 30,000 Watts (for 20 seconds)
• Output Waveform: Pure Sine / Same as Input (Bypass Mode)
• Output Voltage: 100-110-120Vac / 220-230-240Vac
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: <10% DC
• Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Input Voltage: 48Vdc
• Low Battery Alarm: 42.0Vdc–44.0Vdc
• Low Battery Trip: 40.0Vdc–42.0Vdc
• High Voltage Alarm: 64.0Vdc
• Low Battery Voltage Restart: 62.0Vdc
• Idle Consumption: 150 Watts
• Power Saver Mode Idle Consumption: 35 Watts
• Charger Rate: 100A
• Battery Type Settings: 8 selectable options
• Protection Level: Marine coated and protected
• Transfer Switch: Automatic
• Warranty: 1 Year
• Unit Weight: 145.5 lbs.
• Unit Dimensions: 23.3 x 16.3 x 7.9 inches
• Shipping Weight: 190 lbs.
• Shipping Dimensions: 30 x 21.25 x 15.25 inches
