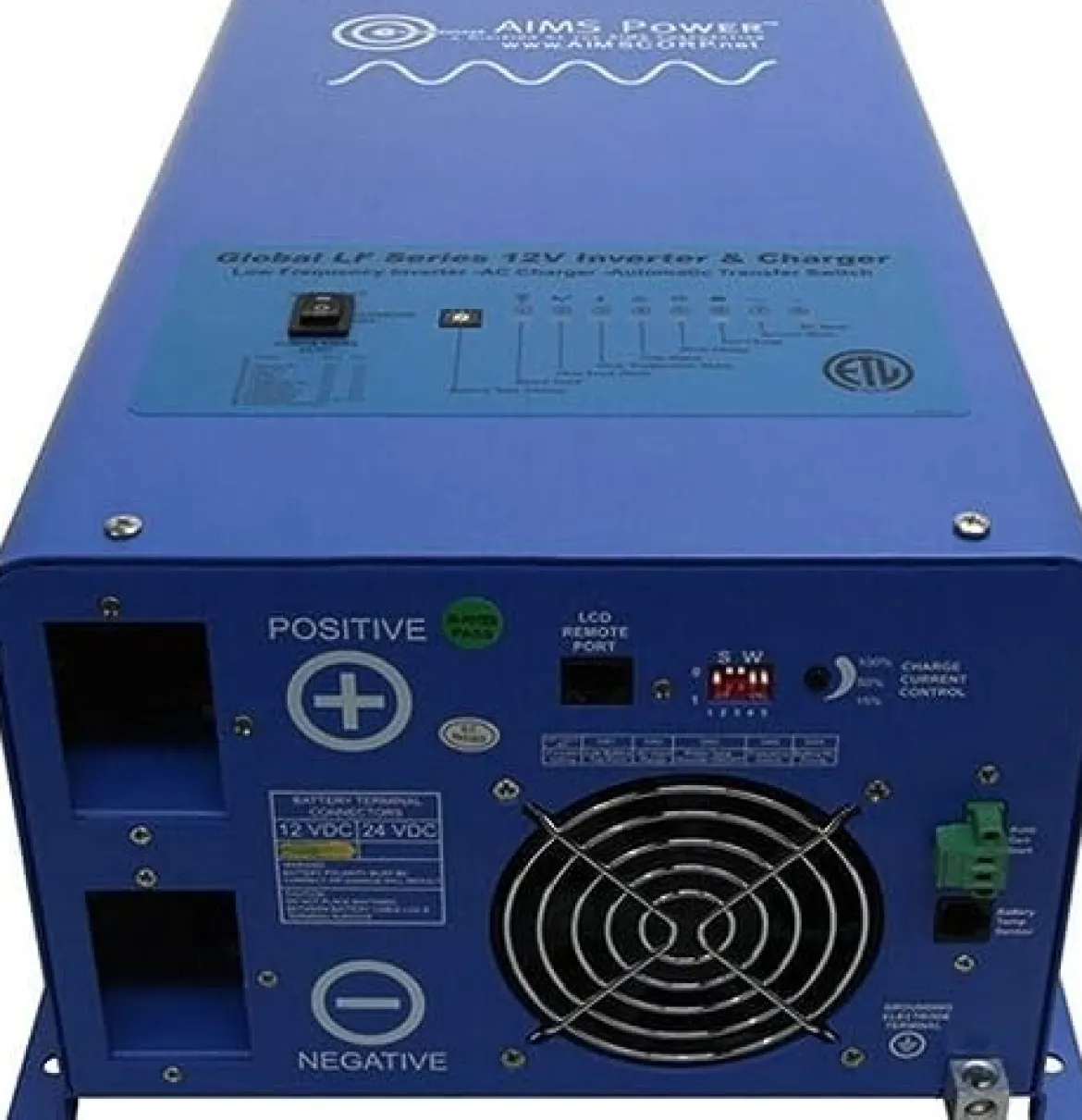

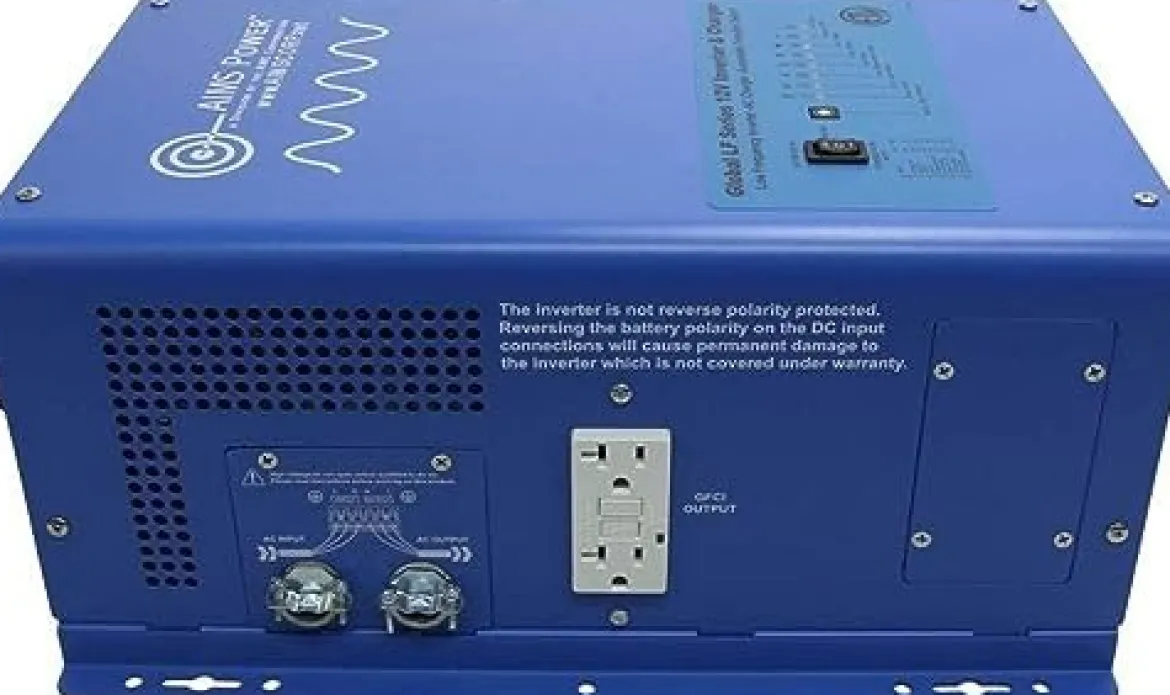

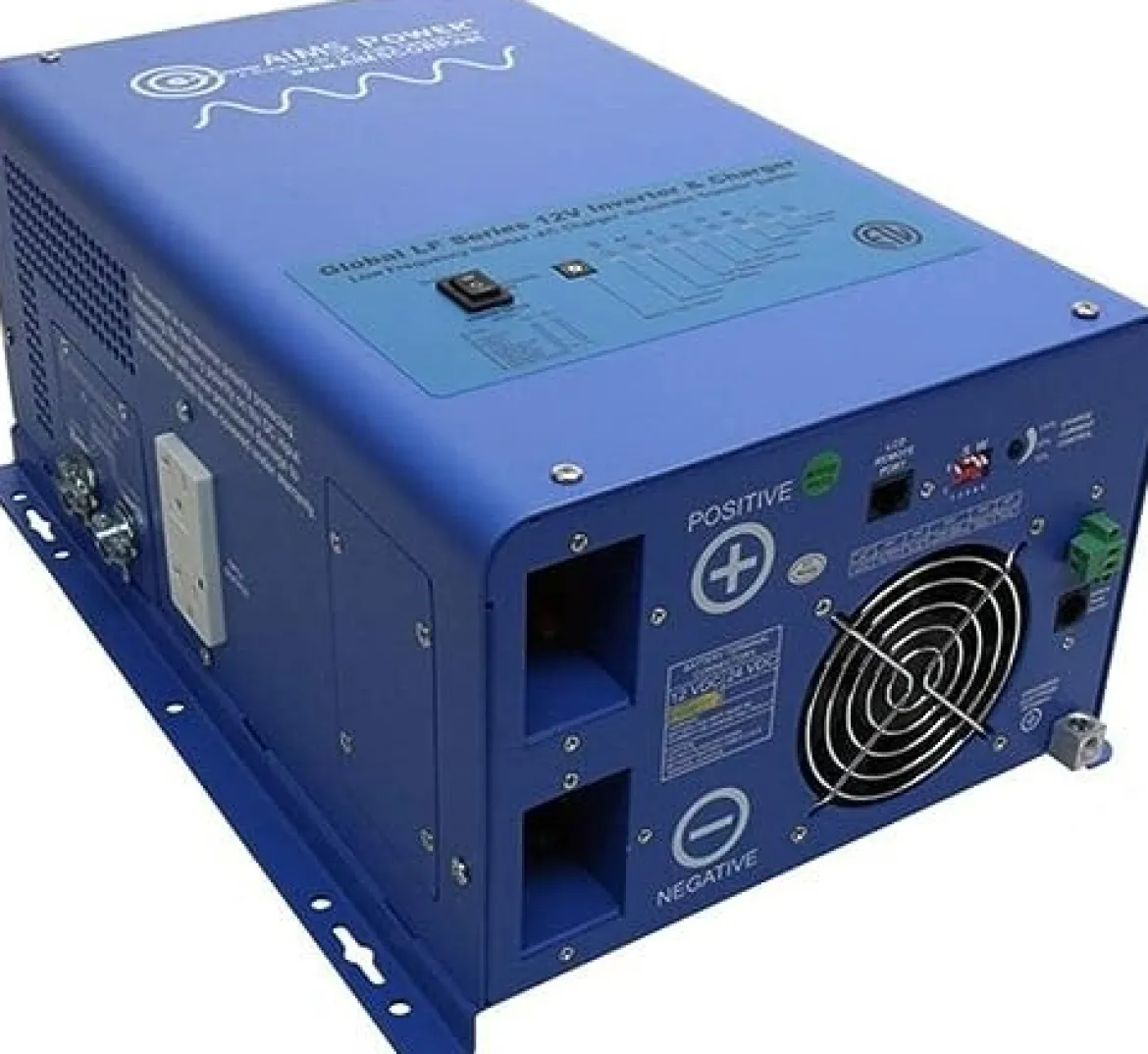

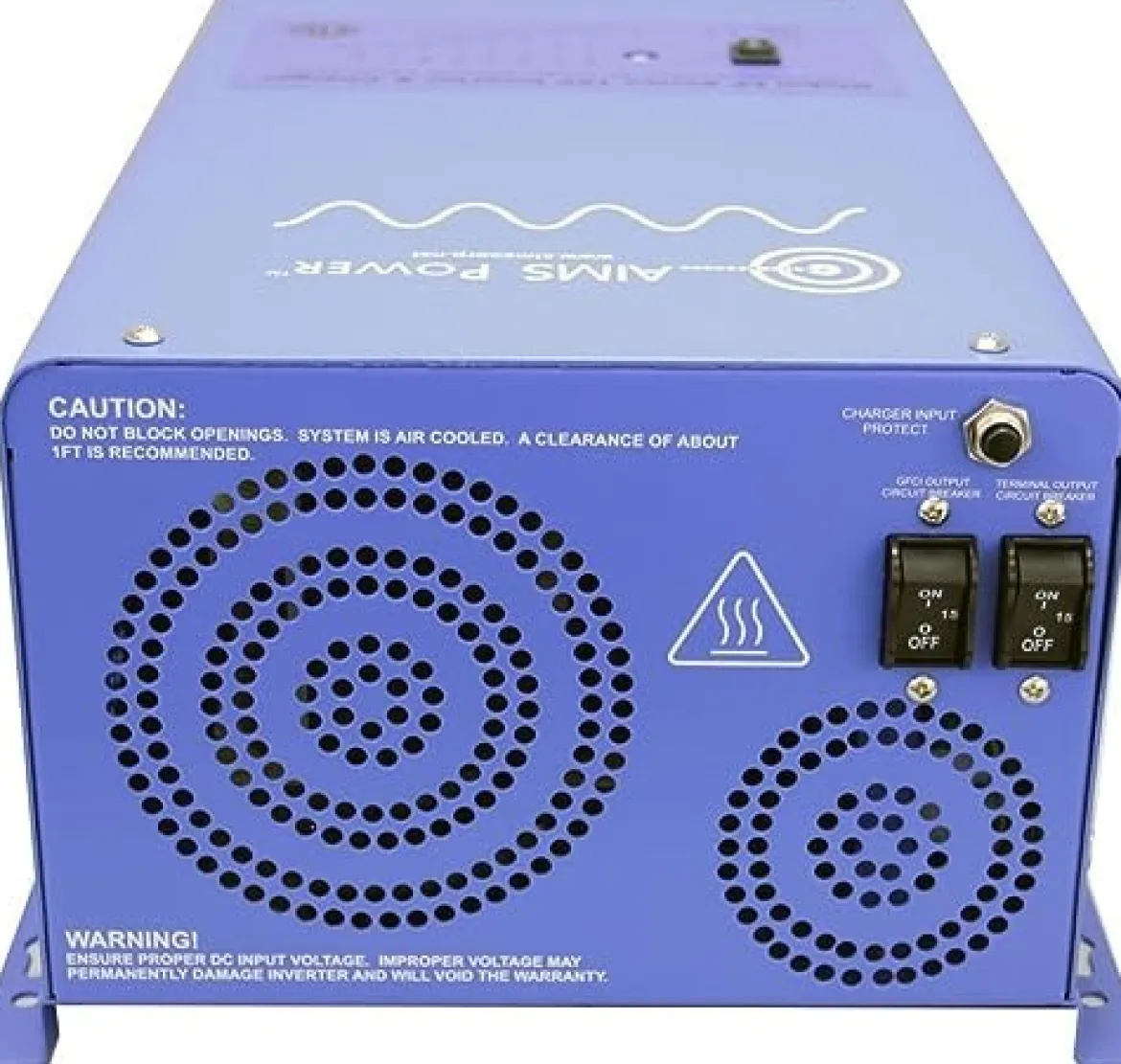

AIMS Power 1000W 12V DC Pure Sine Wave Inverter (PICOGLF10W12V120V)

AIMS Power 1000 Watt Pure Sine Low-Frequency Inverter Charger (PICOGLF10W12V120V) is a versatile, high-performance power solution designed for small industrial applications, off-grid backup power, and recreational use. Perfect for powering essential appliances during emergencies, this inverter charger is ideal for off-grid homes, solar systems, RVs, boats, campsites, and tailgating events. This inverter charger can be used globally, thanks to its auto-frequency detection. It features a dual GFCI outlet, battery priority mode, and low-voltage shutdown to protect your batteries. Whether you need a reliable off-grid solution or a backup power source for your business, home, or RV, this AIMS Power inverter is designed to provide consistent, safe, and efficient power.

Key Features:

• 1000W continuous output, 3000W surge (20 seconds)
• Battery priority selector for direct battery use
• 35A multi-stage smart charger for gel, AGM, and LiFePO4 batteries
• Marine-coated for protection against corrosion
• GFCI outlet (10A), ideal for safety
• Auto frequency detection for worldwide use
• Power saver mode with 25W hibernation
• Selectable 7 battery type settings for optimal charging
• Optional remote panel for convenient operation
• Automatic transfer switch with 10ms transfer time

Specifications:

Inverter Output:

• Continuous Output Power: 1000W
• Surge Rating: 3000W (20 seconds)
• Output Waveform: Pure Sine (Bypass Mode)
• Nominal Efficiency: >88%
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms
• THD: < 10%

Input Specifications:

• Nominal Input Voltage: 12.0VDC
• Minimum Start Voltage: 10.0VDC
• Low Battery Alarm: 10.5VDC–11.0VDC
• Low Battery Trip: 10.0VDC–10.5VDC
• High Voltage Alarm: 16.0VDC
• Low Battery Voltage Restart: 13.3VDC
• Idle Consumption: < 12.5W
• Power Saver Mode Idle Consumption: < 7.5W

Charger Specifications:

• Output Voltage: Depends on Battery Type
• Charger Rate: 35A
• Overcharge Protection: 15.7V
• Charge Current Adjustability: Off, 20%, 100%
• Four-Stage Smart Charger

Transfer Switch:

• 30A Automatic Transfer Switch
• Transfer Time: 10ms (max)

Dimensions & Weight:

• Unit Weight: 35 lbs
• Unit Dimensions (L x W x H): 14.1 x 8.74 x 7.10 inches
• Shipping Weight: 39 lbs
• Shipping Dimensions (L x W x H): 20.75 x 12.75 x 12.50 inches
