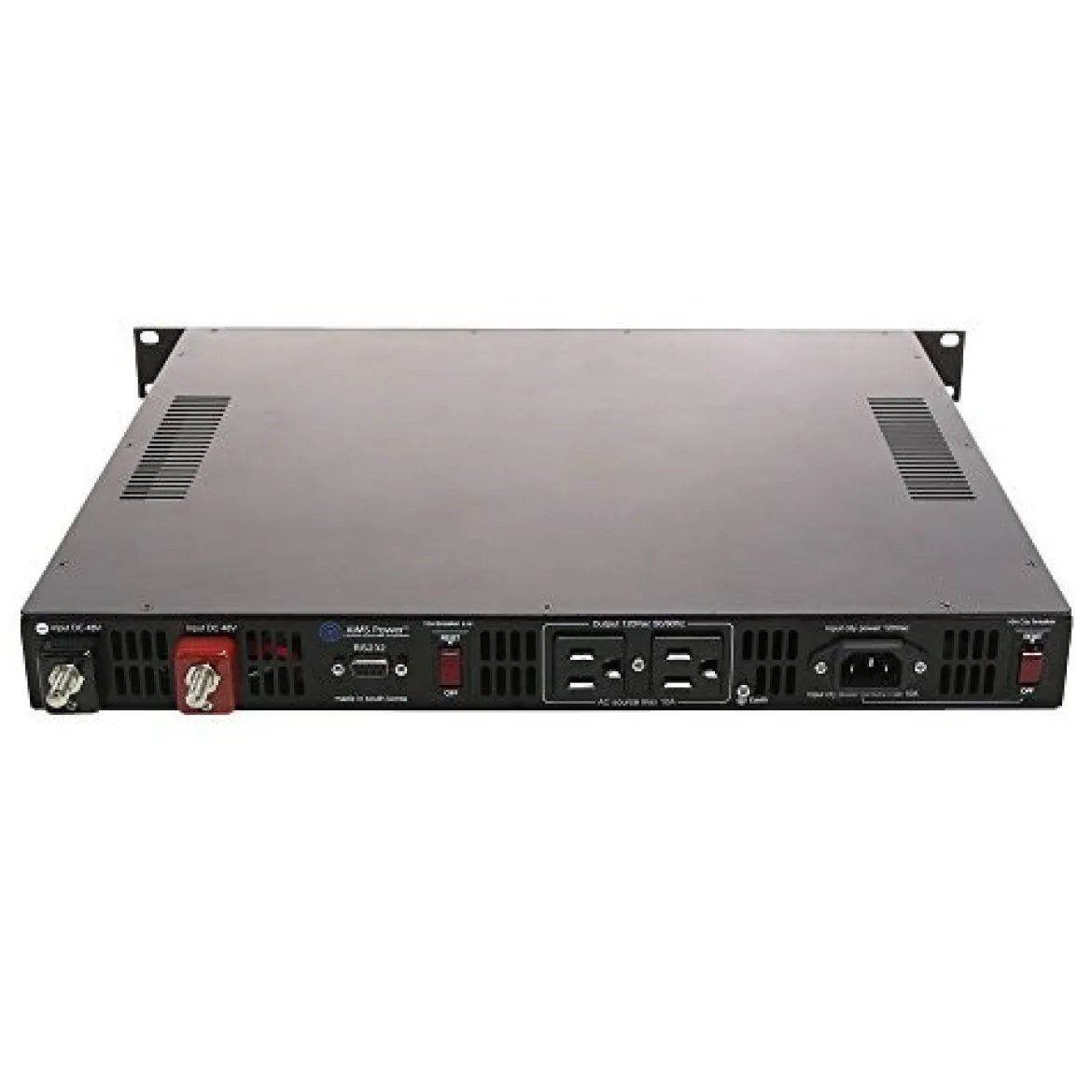

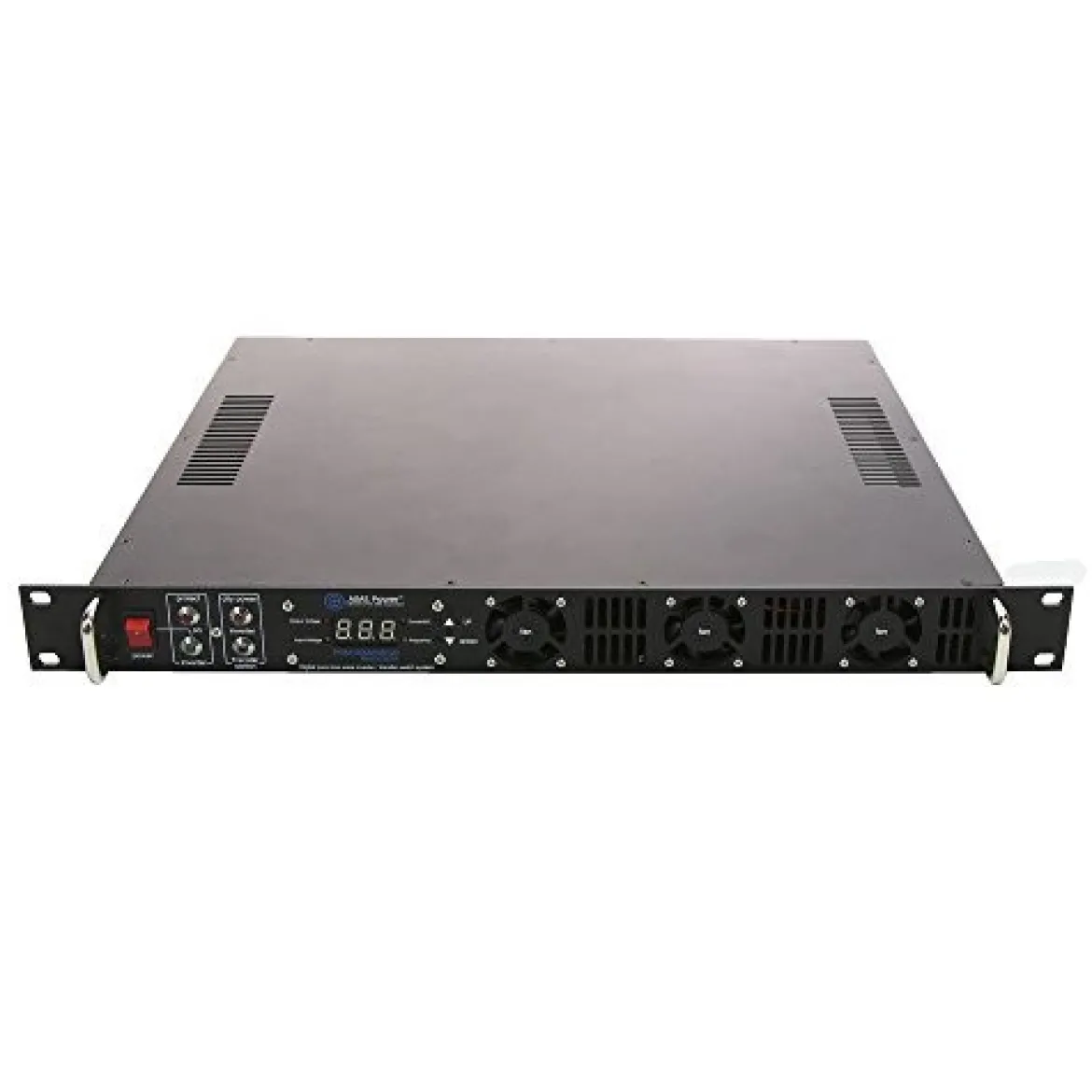

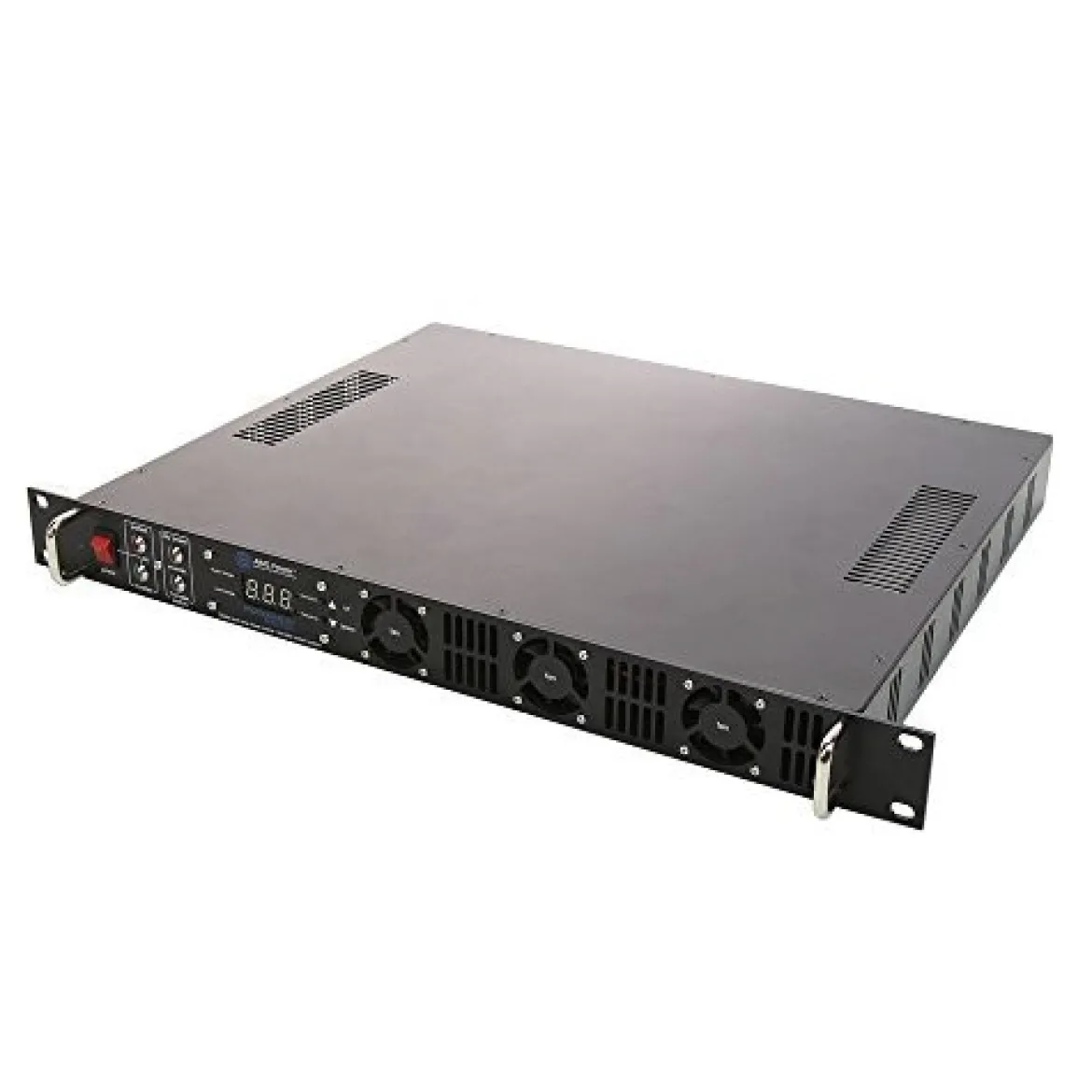

AIMS Power 1000W Rack Mount 24VDC Pure Sine Wave Inverter (PRM1000W24120S)

AIMS Power PRM1000W24120S 1000W Rack Mount 24VDC Pure Sine Wave Inverter is designed to provide reliable backup power to your essential equipment with pure sine wave output. It features a built-in automatic transfer switch that allows seamless transition between utility power and backup DC power. The inverter’s fast transfer time of less than 20 milliseconds ensures continuous power delivery without interruption. Equipped with an RS232 communication port, it allows for remote monitoring of key parameters, including DC input voltage, AC output voltage, frequency, and current. This versatile inverter is ideal for rackmount installations in server rooms, off-grid applications, and critical backup systems.

Features:

• 1000W continuous power, 2000W surge capability (peak power).
• Pure sine wave output – clean, stable power for sensitive equipment.
• 1U Rack Mount design for space-saving and efficient installation.
• RS232 communication port for remote monitoring via PC.
• Automatic Transfer Switch with seamless switchover from utility to DC power.
• Dual AC receptacles for versatile power connections.
• FCC Class B for electromagnetic compatibility.
• Digital status display for easy monitoring of key parameters.
• Thermal and load-based fan for optimal cooling and performance.
• Overload protection, short circuit protection, and over-temperature shutdown for added safety.
• Low and high input voltage protection with automatic shutdown.
• Free 1-year tech support and 1-year warranty (parts and labor).

Benefits:

• Provides clean, reliable power for sensitive equipment.
• Space-saving design ideal for rackmount installations.
• Allows for easy remote monitoring with RS232 port.
• Seamless transfer between utility and backup power ensures uninterrupted service.
• Offers protection features for safety and longevity of the system.

Technical Specifications:

• Model: PRM1000W24120S
• DC Input Voltage: 21.0V to 30.0V
• AC Output Voltage: 120V AC
• Output Waveform: Pure sine wave
• Output Frequency: 60 Hz
• Low Battery Voltage Shutdown: 20.0V
• Low Battery Voltage Recovery: 22.4V
• Efficiency: 91% at peak load
• Operating Temperature Range: -4°F to 172°F
• AC Output Socket Type: Dual Type 2 – 3 prong
• RS232 Communication Port: Yes, for remote monitoring
• AC Output Protection: 10A breaker with bypass
• No Load Power Consumption: 0.38A DC (fan off), 0.47A DC (fan on)
• Unit Dimensions: 19″ x 1.7″ x 14″
• Unit Weight: 11 lbs.
