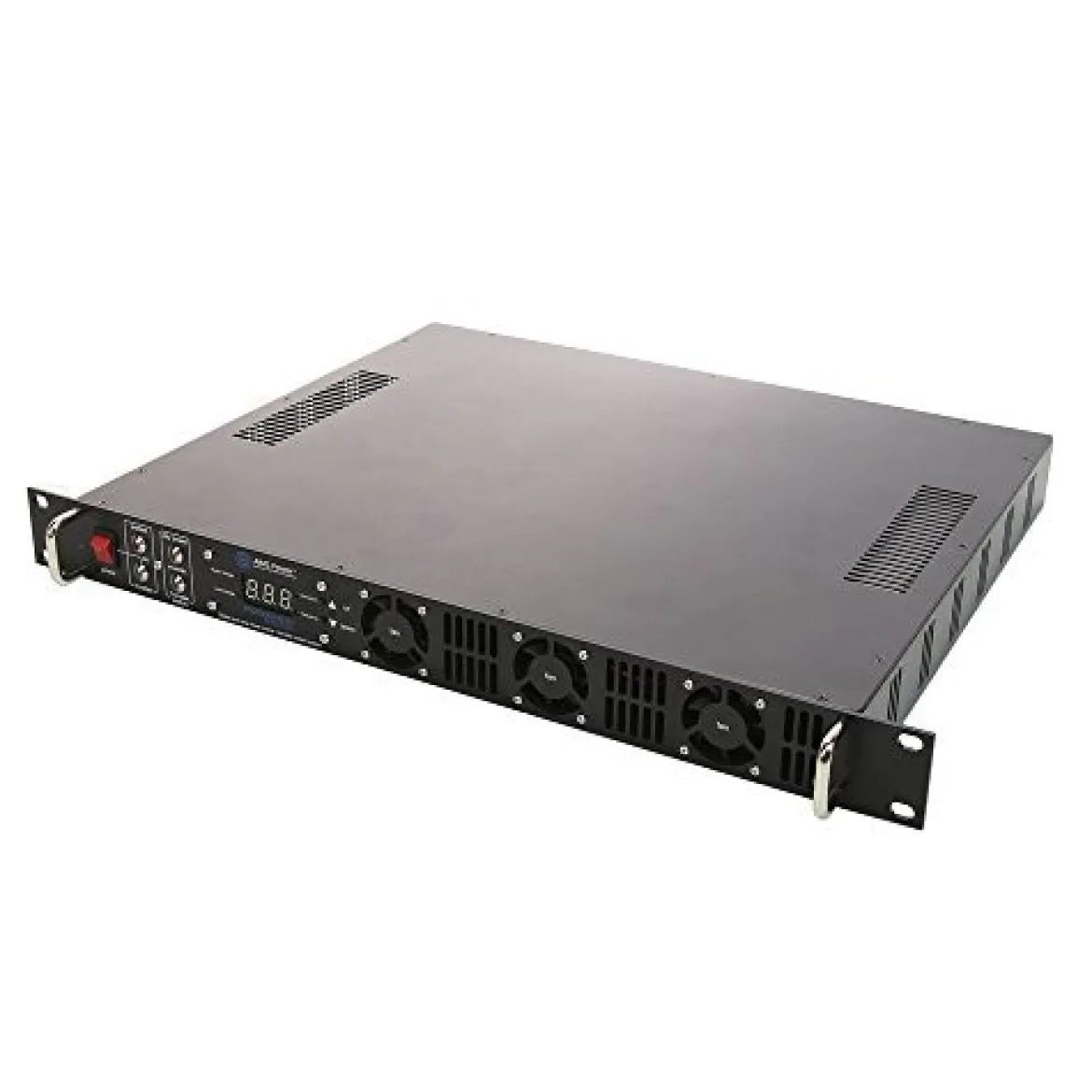

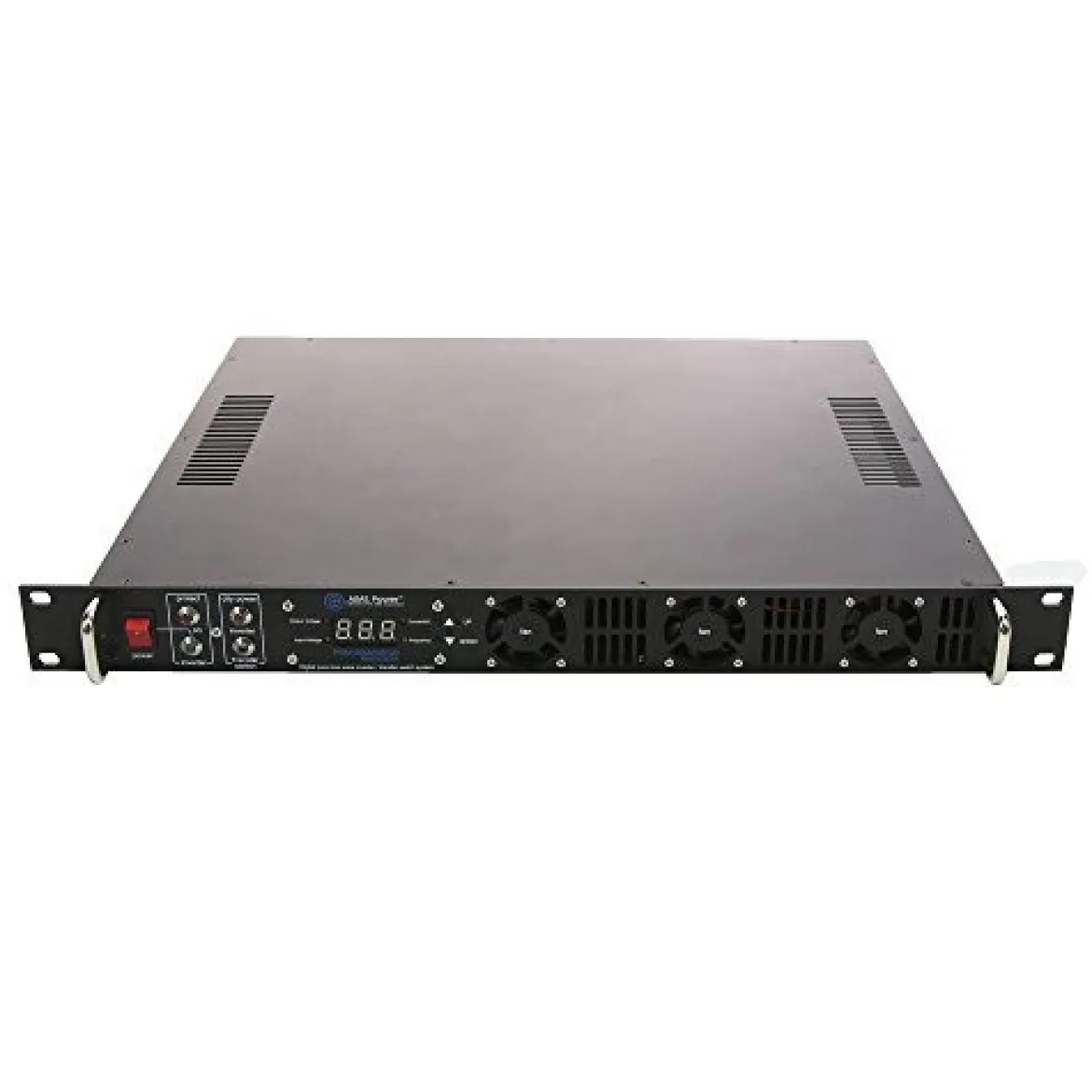

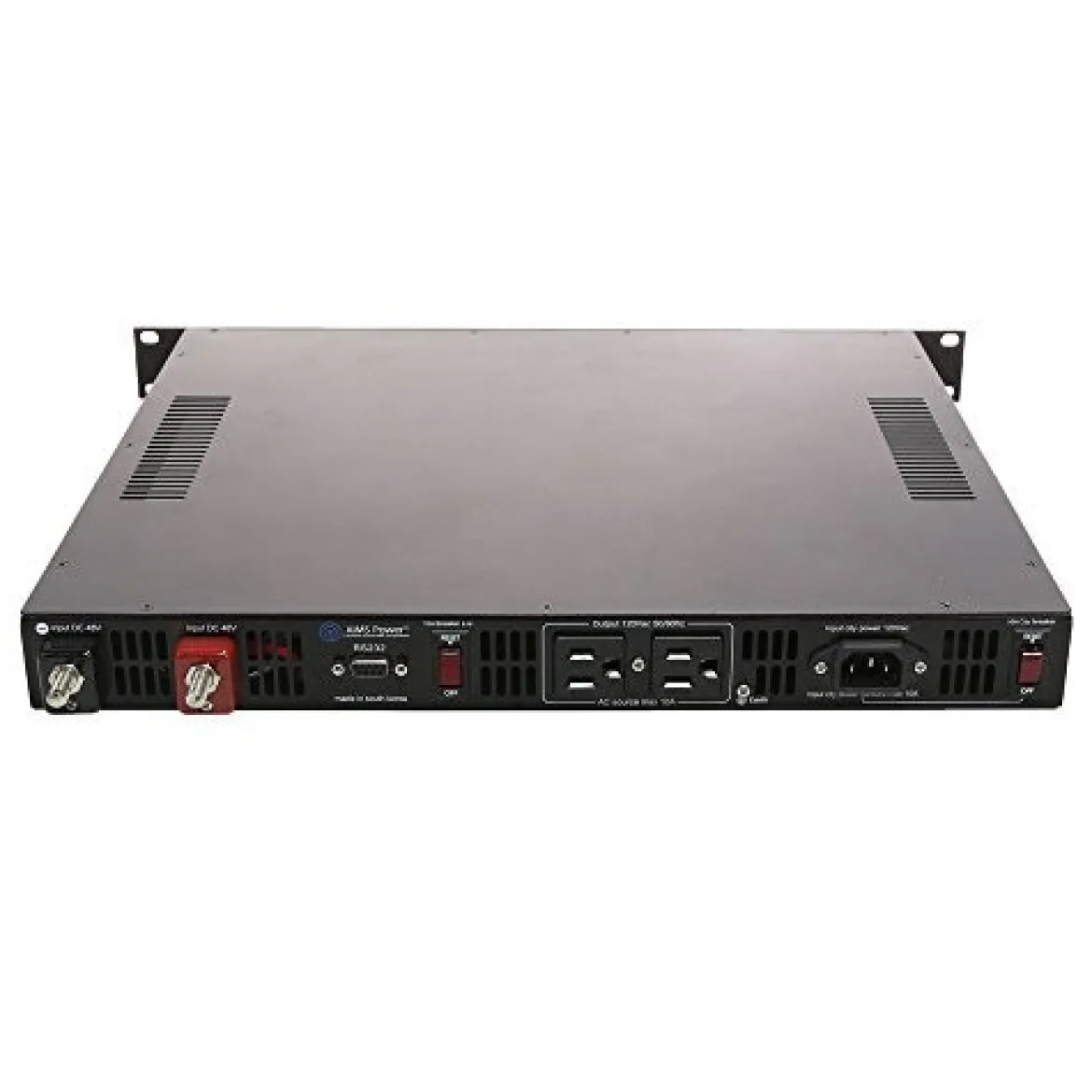

AIMS Power 1000W Rack Mount 48VDC Pure Sine Wave Inverter (PRM1000W48120S)

AIMS Power 1000W Rack Mount 48VDC Pure Sine Wave Inverter (PRM1000W48120S) is designed to provide reliable backup power for essential equipment. Featuring an automatic transfer switch, the inverter seamlessly switches between utility power and DC power. When utility power is lost, the inverter automatically activates backup DC power, maintaining continuous power to connected equipment. The inverter supports remote monitoring through the RS232 communication port, allowing real-time tracking of input voltage, output voltage, frequency, and current. This unit offers essential protection features, including overload protection, short circuit protection, and temperature monitoring for enhanced safety.

Key Features:

• 1000W continuous power, 2000W surge capability (peak power)
• Pure sine wave output for clean, stable power
• 1U Rack Mount design for efficient, space-saving installation
• Automatic Transfer Switch with seamless switchover from utility to DC power
• Dual AC receptacles for versatile power connections
• FCC Class B for electromagnetic compatibility
• Digital status display for easy monitoring of key parameters
• Thermal and load-based fan for optimal cooling and performance
• Overload protection, short circuit protection, and over-temperature shutdown for added safety
• Low and high input voltage protection with automatic shutdown
• Free 1-year tech support and 1-year warranty (parts and labor)

Specifications:

• DC Input/Operating Voltage: 41.0V to 60.0V
• AC Output Voltage: 120V AC
• Output Waveform: Pure Sine Wave
• Output Frequency: 60Hz
• Low Battery Voltage Shutdown: 40.6V
• Low Battery Voltage Recovery: 42.7V
• Efficiency: 91%
• Over Temperature Protection (Low): -4°F ± 5°F
• Over Temperature Protection (High): 172°F ± 5°F
• Operating Temperature Recovery: 136°F (Automatic Shutdown) ± 5°F
• AC Output Socket Type: Dual Type 2 – 3 prong
• RS232 Communication Port: Yes, for remote monitoring
• AC Output and Bypass Protection: 10A Breaker
• Unit Dimensions (L x W x H): 19″ x 14″ x 1.7″
• Unit Weight: 11 lbs.
• FCC Class B: F690501/RF-EMC000377(H)
