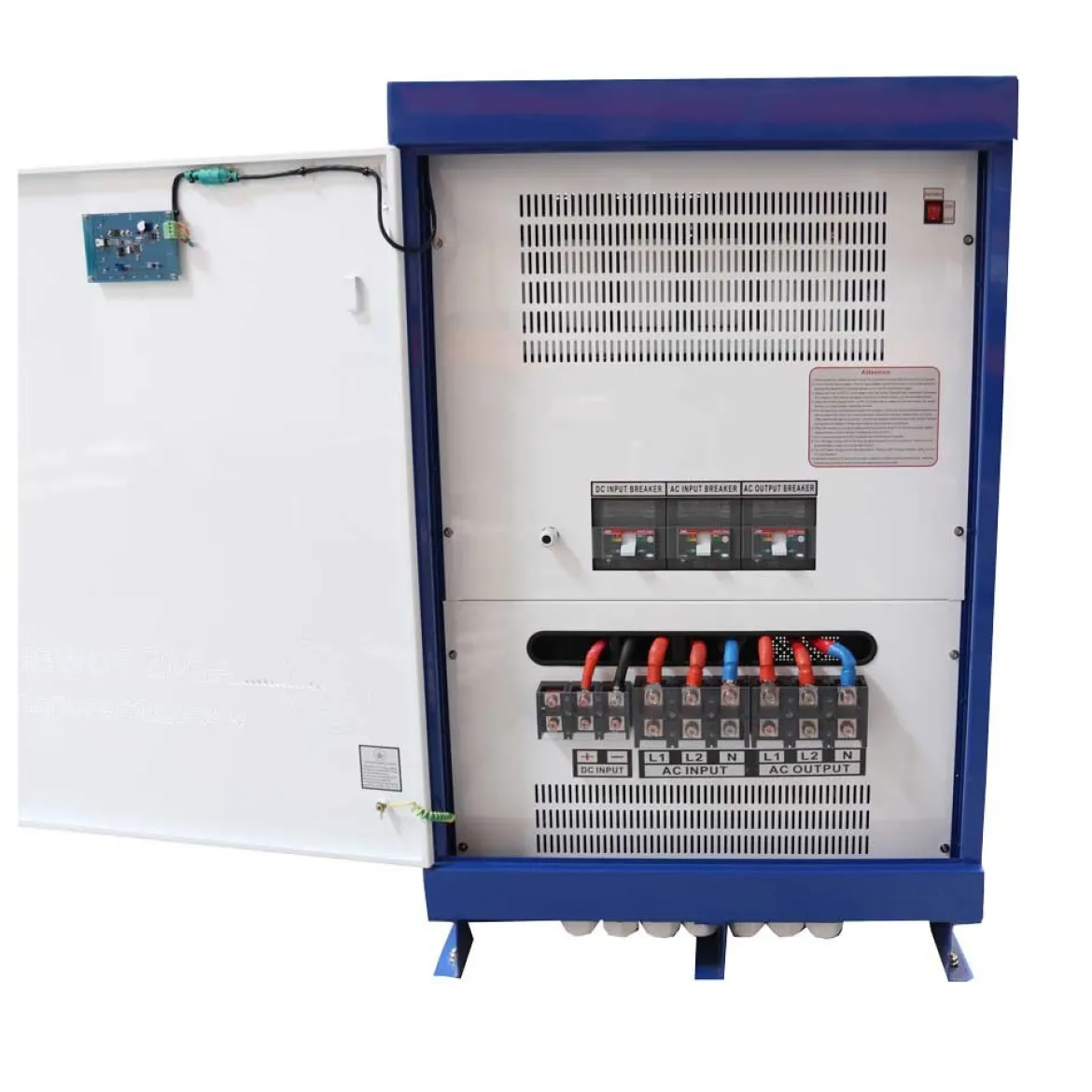

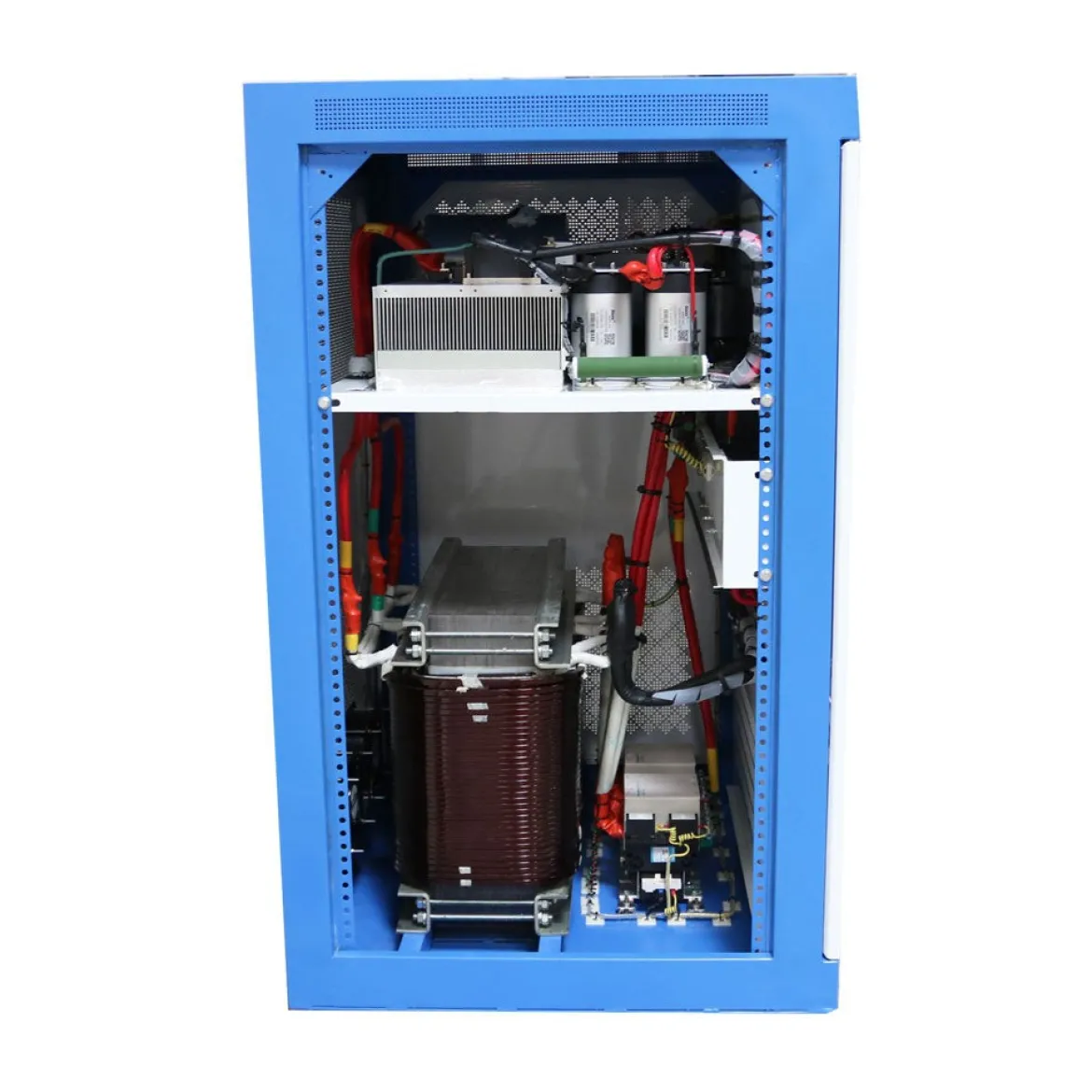

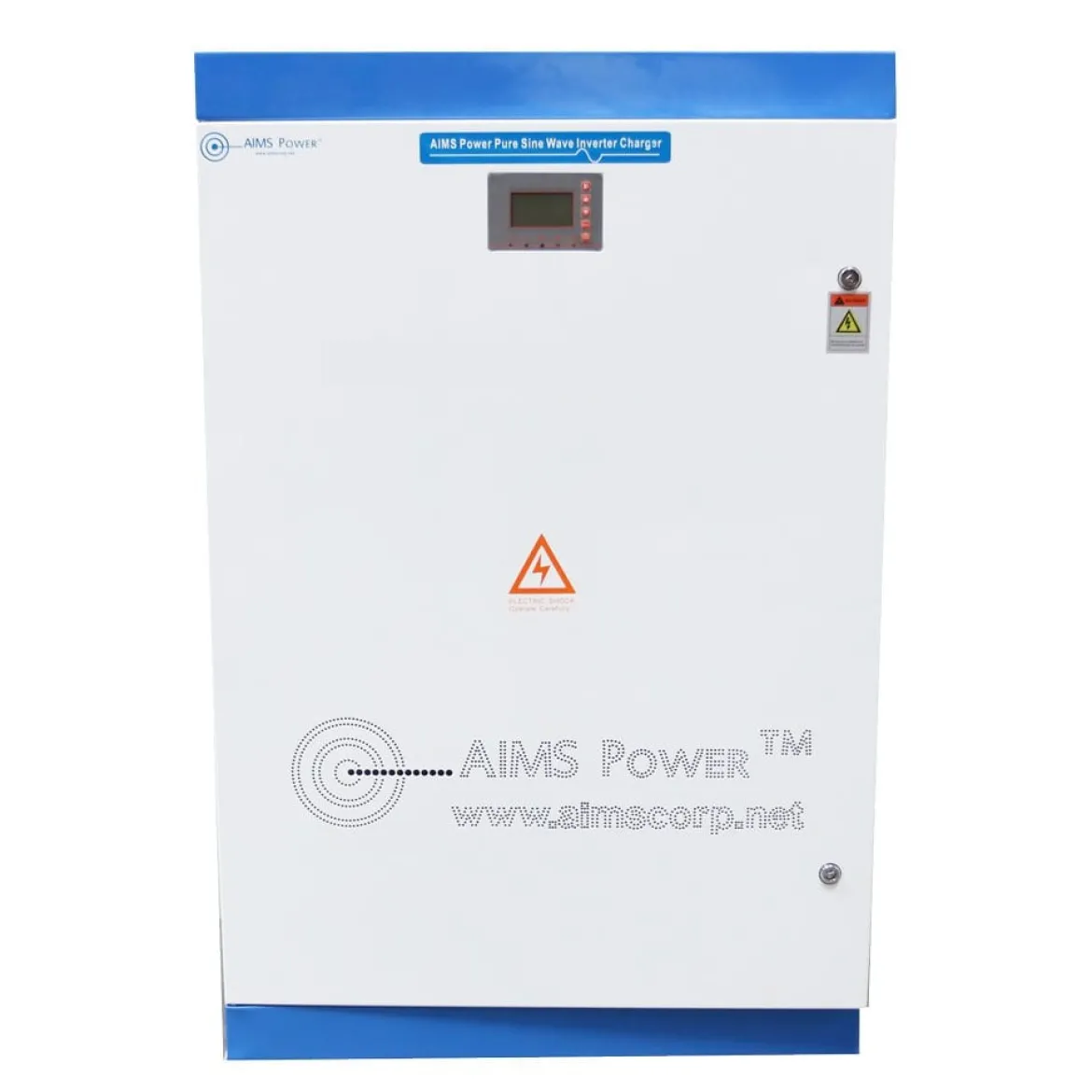

AIMS Power 30kW Pure Sine Inverter Charger (PICOGLF30KW300V4083P)

AIMS Power PICOGLF30KW300V4083P 30kW Pure Sine Inverter Charger is a high-performance power conversion solution that uses pure sine wave technology to efficiently convert DC to AC power. This inverter charger is ideal for high-demand applications like off-grid solar systems, backup power solutions, and industrial use. With an adjustable output voltage range and various programmable settings, it ensures flexibility and reliability. Featuring a user-friendly LCD panel and low idle consumption, the inverter is easy to maintain while offering a high efficiency of over 94%. It is equipped with comprehensive protections such as overvoltage, undervoltage, and overload safeguards, making it a safe and efficient solution for critical power needs.

Features:

• DC Input: 300V (Range: 200-600V DC).
• Rated Current: 100A.
• AC Output Power: 30kW (30,000W).
• Output Voltage: 208V (+- 3%) with customizable options (110/120/220/230/240/280/400/415/440).
• Frequency: Adjustable 50/60Hz.
• Power Factor: >0.95.
• Current: 83.3A per phase.
• Inverter Technology: Pure sine wave for clean, reliable power.
• LCD Display: For easy monitoring and adjustments.
• Protections: Overload, short circuit, over-voltage, under voltage, and over temperature protection.
• Humidity: 90% non-condensing.
• Operating Temperature: -25°C to 55°C (-13°F to 131°F).
• Cooling: Fan cooled (Always on).
• Noise Level: <50dB.
• Certifications: CE, CSA 22.2, UL 1741, CEC.
• Dimensions: 33.5″D x 33.5″W x 51.2″H.
• Weight: 926 lbs.

Benefits:

• Efficient and reliable power conversion for high-demand systems.
• Flexible voltage and frequency options to fit various applications.
• User-friendly LCD display for real-time monitoring.
• High efficiency of over 94%, saving energy and reducing operating costs.
• Comprehensive protection system ensures safety and prevents system failures.
• Suitable for off-grid solar systems, backup power solutions, and industrial use.
• Robust and reliable for harsh environmental conditions.

Technical Specifications:

• Model: PICOGLF30KW300V4083P.
• DC Input: 300V (Range: 200-600V DC).
• AC Output Power: 30kW (30,000W).
• Output Voltage: 208V (+- 3%) with customizable options.
• Frequency: Adjustable 50/60Hz.
• Power Factor: >0.95.
• Current: 83.3A per phase.
• Cooling: Fan cooled (Always on).
• Noise Level: <50dB.
• Dimensions: 33.5″D x 33.5″W x 51.2″H.
• Weight: 926 lbs.
