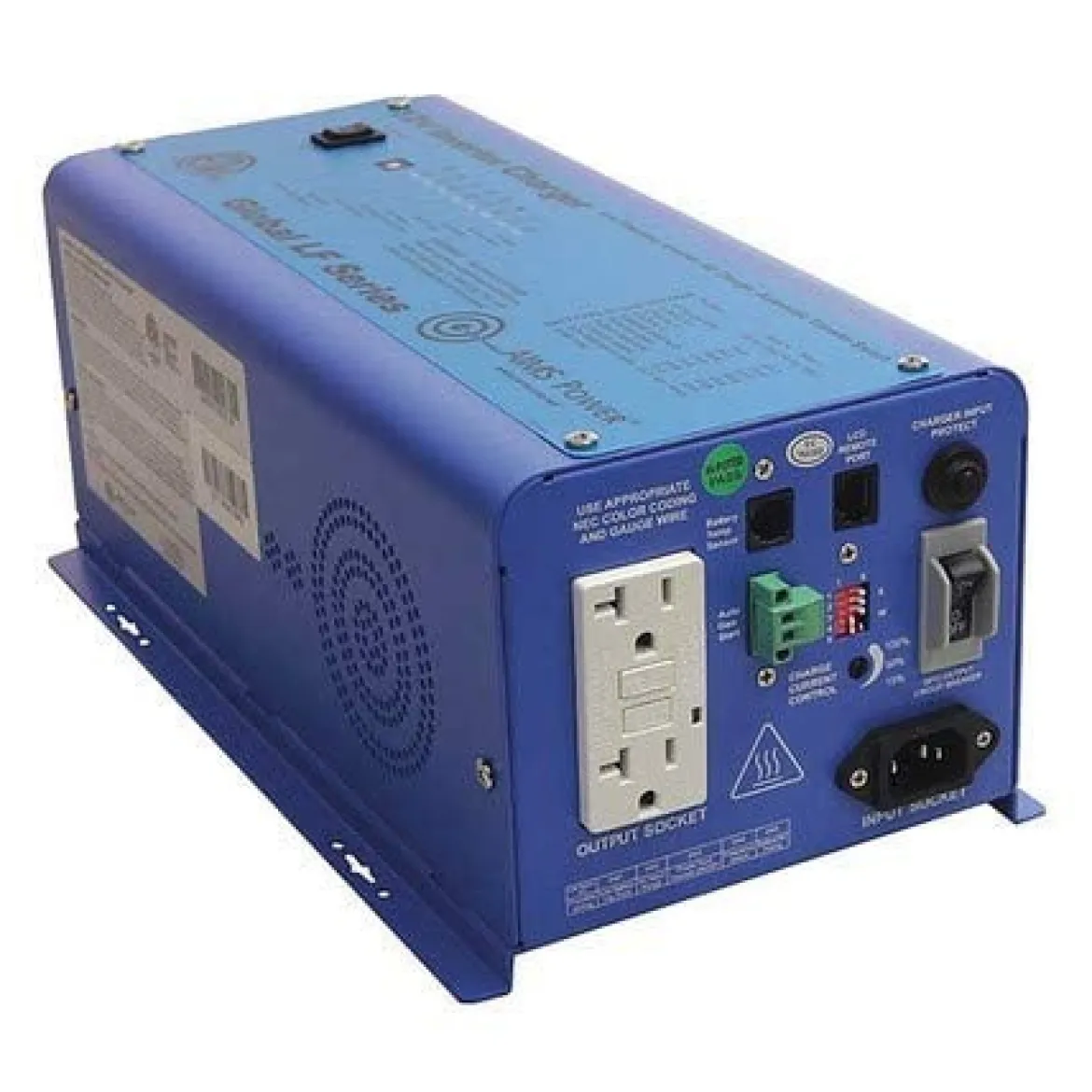

AIMS Power 600W Pure Sine Inverter Charger 12V to 120V (PICOGLF6W12V120VETL)

AIMS Power 600W Pure Sine Inverter Charger is a versatile, high-performance solution that combines an inverter, battery charger, and AC auto-transfer switch in a single unit. ETL is listed and compliant with UL 458 standards, and this inverter provides efficient DC-to-AC conversion with a peak efficiency of 80%. It features multi-stage smart charging and pure sine wave output, which ensures clean, stable power for sensitive electronics and tools.

Designed with advanced features like AC/Battery priority switching, auto generator start, and a selectable power-save mode, it offers excellent flexibility for renewable energy systems. This inverter charger is capable of charging GEL, Lead, AGM, and Lithium batteries, making it ideal for mobile, off-grid, and emergency backup power needs.

Key Features:

• 600W continuous output power
• 1800W surge for 20 seconds (300% surge capacity)
• Pure sine wave output for clean, stable power
• Multi-stage smart charger (20A) with 7 battery type settings
• AC/Battery priority modes for backup or renewable energy systems
• Auto generator start for low battery voltage
• GFCI outlet and marine-rated conformal coating
• Remote panel available for easy control
• 25W selectable power save (hibernation) mode
• Automatic transfer switch with less than 10ms transfer time
• Adjustable charge current from 20% to 100%

Specifications:

• Continuous Output Power: 600W
• Surge Power: 1800W (20 seconds)
• Output Voltage: 120V AC
• Nominal Efficiency: 80% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
• Typical Transfer Time: <10ms
• Total Harmonic Distortion (THD): <10%
• Nominal Input Voltage: 12V DC
• Minimum Start Voltage: 10V DC
• Low Battery Alarm: 10.5V – 11.0V
• Low Battery Trip: 10.0V – 10.5V
• Charger Output: 20A
• Overcharge Protection Shutdown: 15.7V
• Unit Dimensions (L x W x H): 14.75″ x 7″ x 5.5″
• Unit Weight: 18 lbs
• Shipping Weight: 20 lbs
