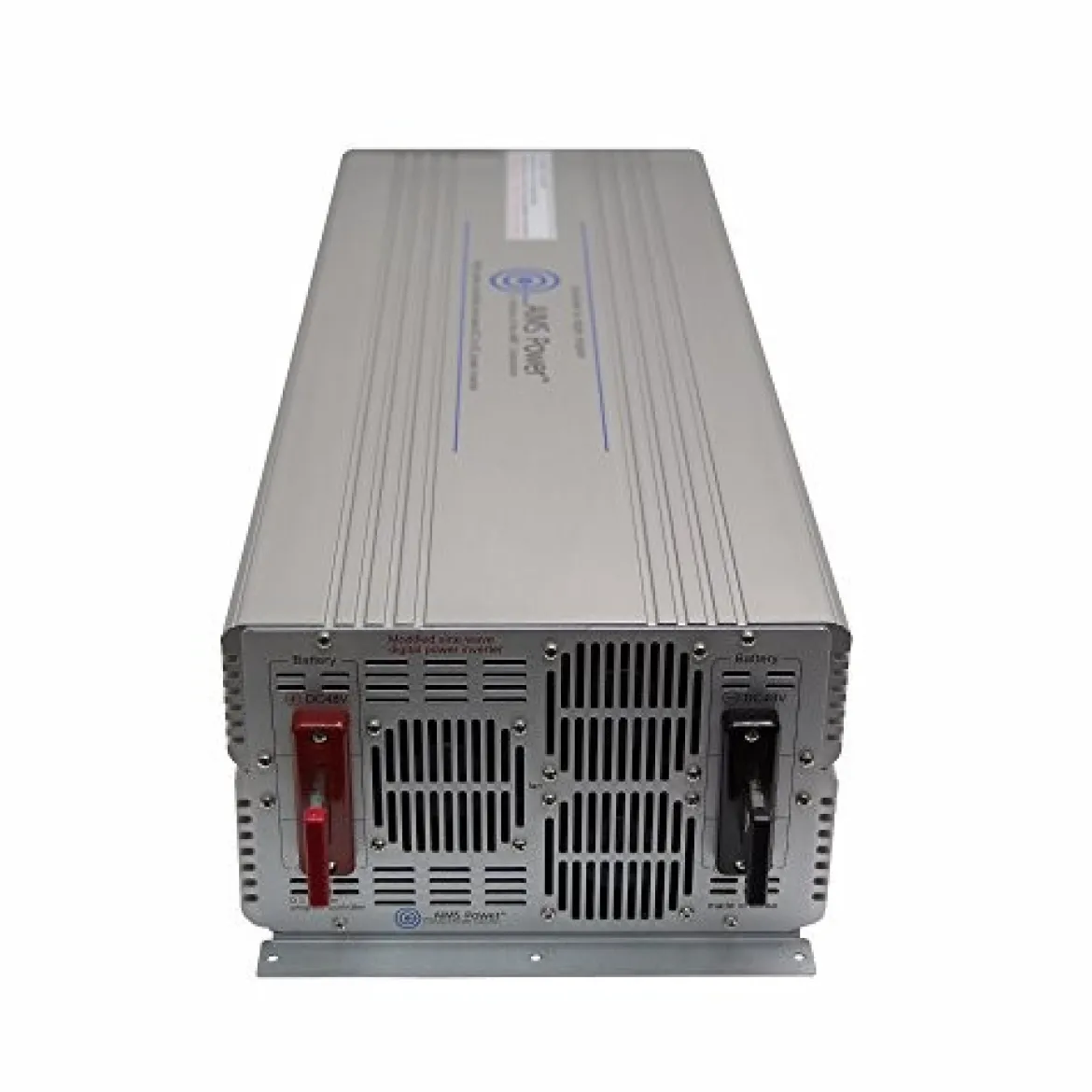

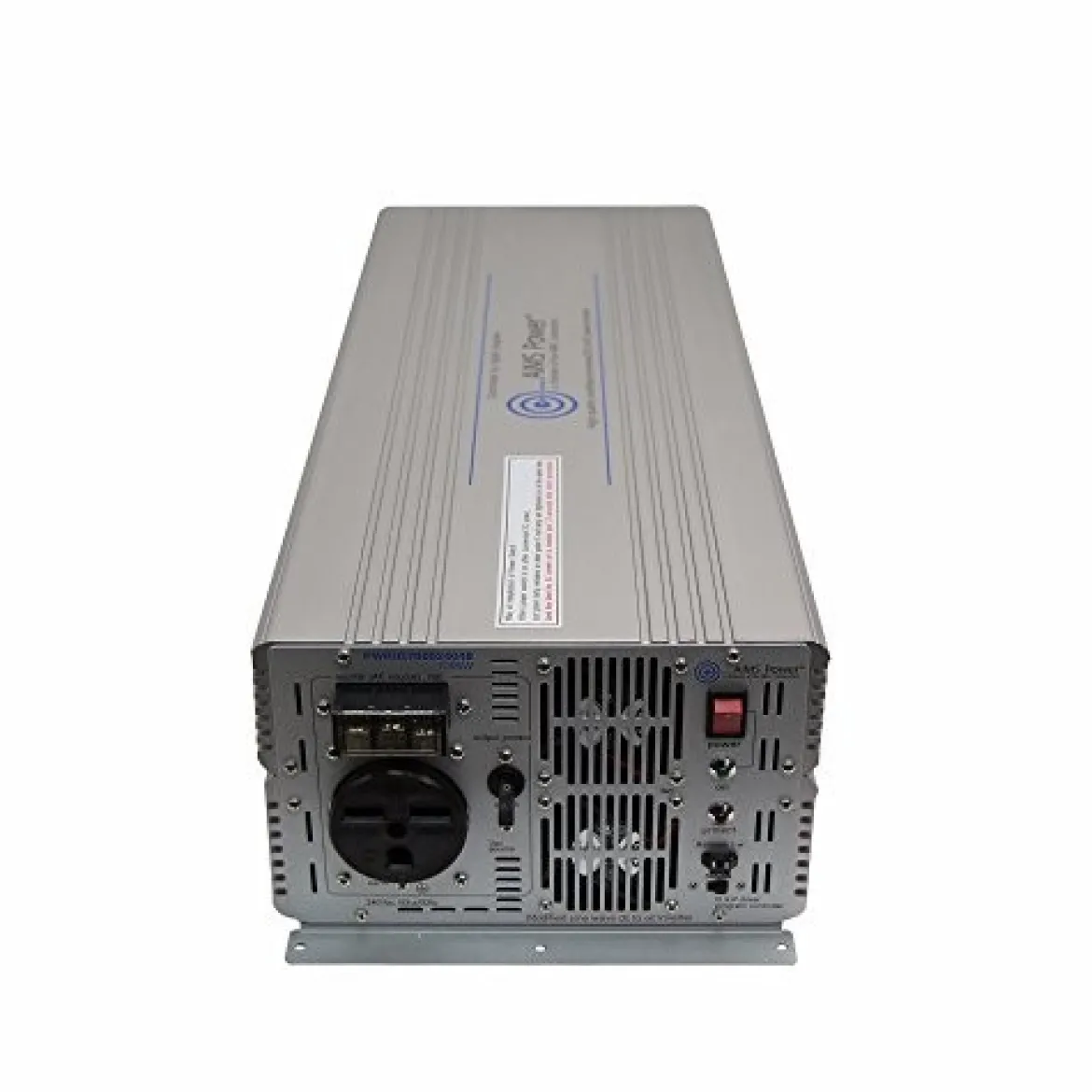

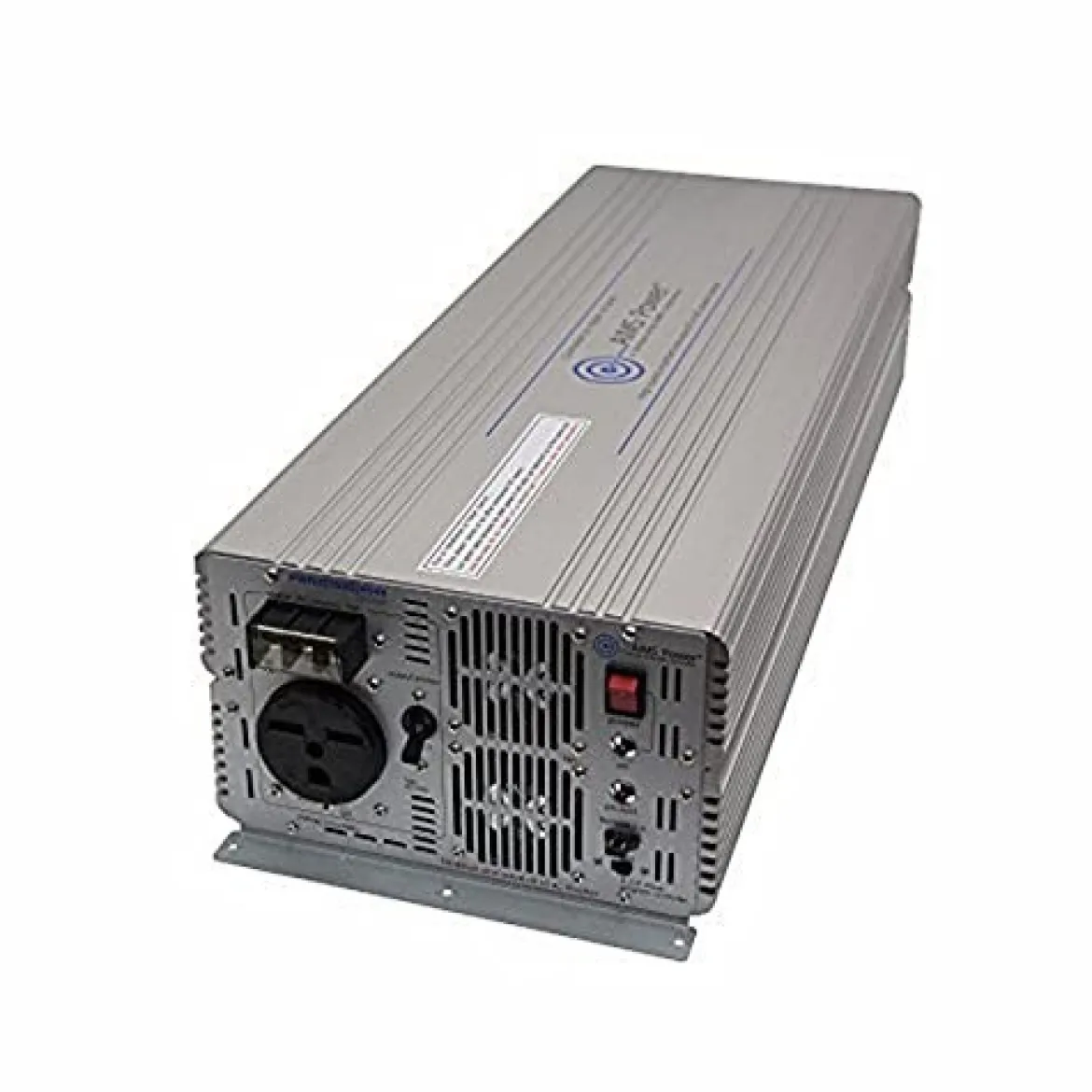

AIMS Power 7000W 48V DC to 240V AC Industrial Inverter (PWRIG700024048)

AIMS Power 7000W 48V DC to 240V AC Industrial Inverter is a high-performance power inverter designed to deliver reliable power conversion for heavy-duty applications. It features overload protection, over-temperature indicators, and a thermally controlled fan for optimal cooling. The inverter also includes a DC volt meter, an LED bar for load usage, and externally located resettable circuit breakers for added safety. With an aluminum case and pre-wired remote on/off switch, it ensures efficient performance in demanding environments.

Key Features & Specifications:

• Continuous Output Power: 7000 Watts
• Surge Power: 14,000 Watts (9-second duration)
• Input Voltage: 42-60V DC
• Output Voltage: 240V AC ± 10%
• Output Waveform: Modified sine wave with phase correction
• Frequency: 50/60 Hz ± 1 Hz
• Low Battery Alarm: 42 ± 0.5 Volts
• Low Battery Shutdown: 41.5 ± 0.5 Volts
• High Input Voltage Protection: 60 ± 0.5 Volts
• Efficiency: 90% at full load
• No Load Current: 0.18A (fan off) / 0.66A (fan on)
• Cooling Fan: Auto start at 107°F for optimal cooling
• Full Load Maximum Operating Temperature: 154°F
• AC Output Socket Type: Single 240V plug
• Product Dimensions: 22.5” x 10” x 6.5”
• Weight: 31 lbs
• Warranty: 1 Year (Parts & Labor)
• Remote on/off switch: Pre-wired
• Overload and Over Temperature Protection: Included
• AC Short Circuit Protection: Yes
• Externally Located Resettable Circuit Breakers: Yes
• Thermally Controlled Fan: Yes
• Instruction Manual: Included
• Tech Support: Free 1-year tech support
