AIMS Power Hybrid Inverter Charger 4.6kW Output 6.9kW Solar Capacity (PIHY4600)

AIMS Power Hybrid Inverter Charger 4.6kW Output 6.9kW Solar Capacity (PIHY4600) is a highly efficient and versatile inverter designed for both off-grid and grid-tied applications. With an impressive AC output and a high solar input capacity, this hybrid inverter supports a variety of battery types, including lithium and lead. It is equipped with safety features like anti-islanding protection, PV arc detection, and rapid shutdown, making it an ideal solution for residential, commercial, and off-grid solar systems. The unit is stackable, offers load sharing, and supports remote monitoring via Wi-Fi and RS485.

Key Features & Specifications:

• Max PV Input Power: 6.9 kW
• MPPT Range: 80-550 V
• Max PV Voltage: 660 V
• Startup Voltage: 100 V
• Nominal Voltage: 360 V
• Max Charge/Discharge Power: 6.9 kW
• Max Charge/Discharge Current: 50 A
• Battery Voltage Range: 80-495 V
• Battery Types: Lithium & Lead
• Max Continuous Power: 4.6 kW
• Nominal Grid Voltage: 240 V (Split Phase)
• Efficiency: Max Efficiency 97.6%, PV to Battery Efficiency 98.1%
• Cooling: Natural Convection
• Enclosure Protection: IP65, NEMA4X
• Operating Temperature: -25°C to 60°C (-77°F to 140°F)
• Mounting: Wall Bracket

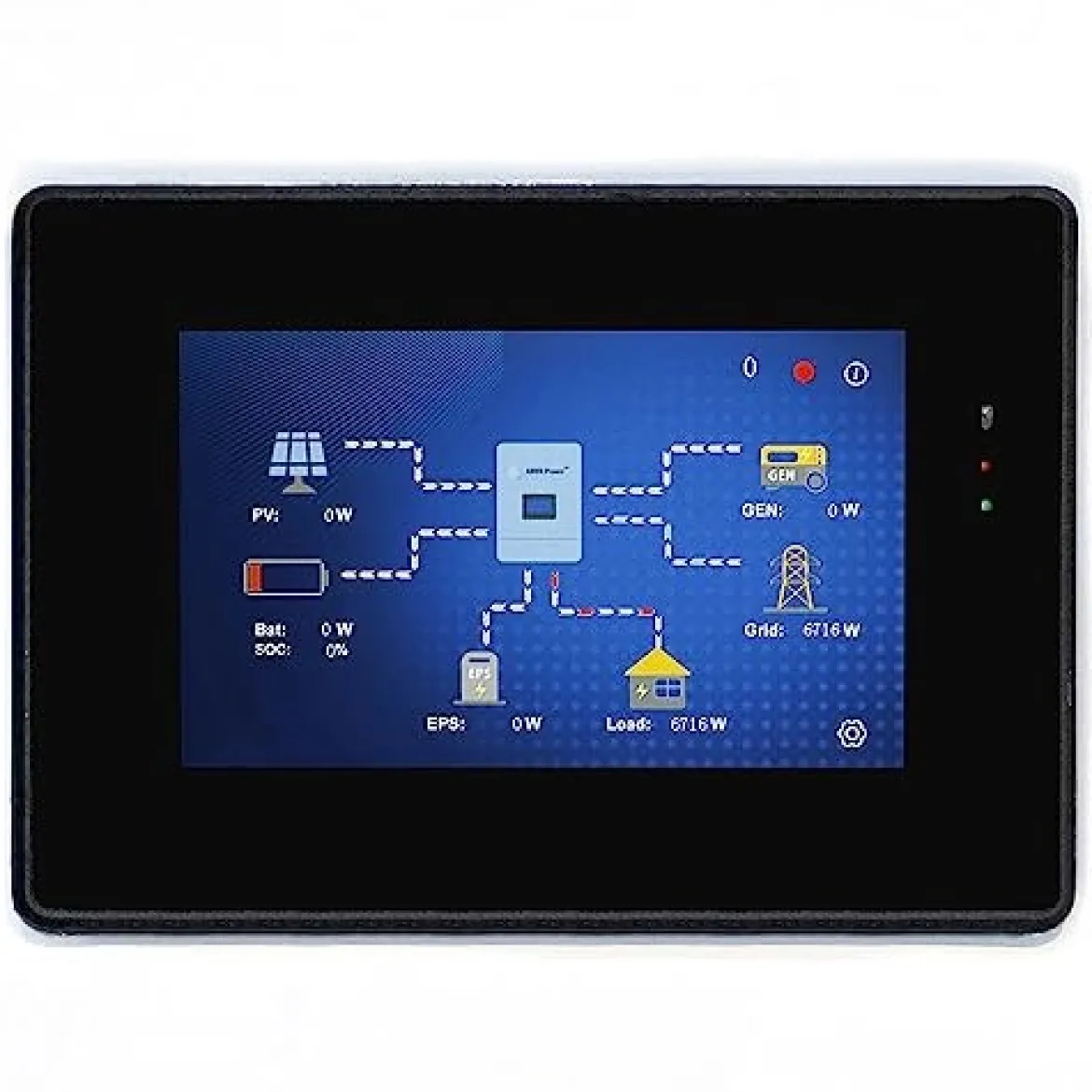

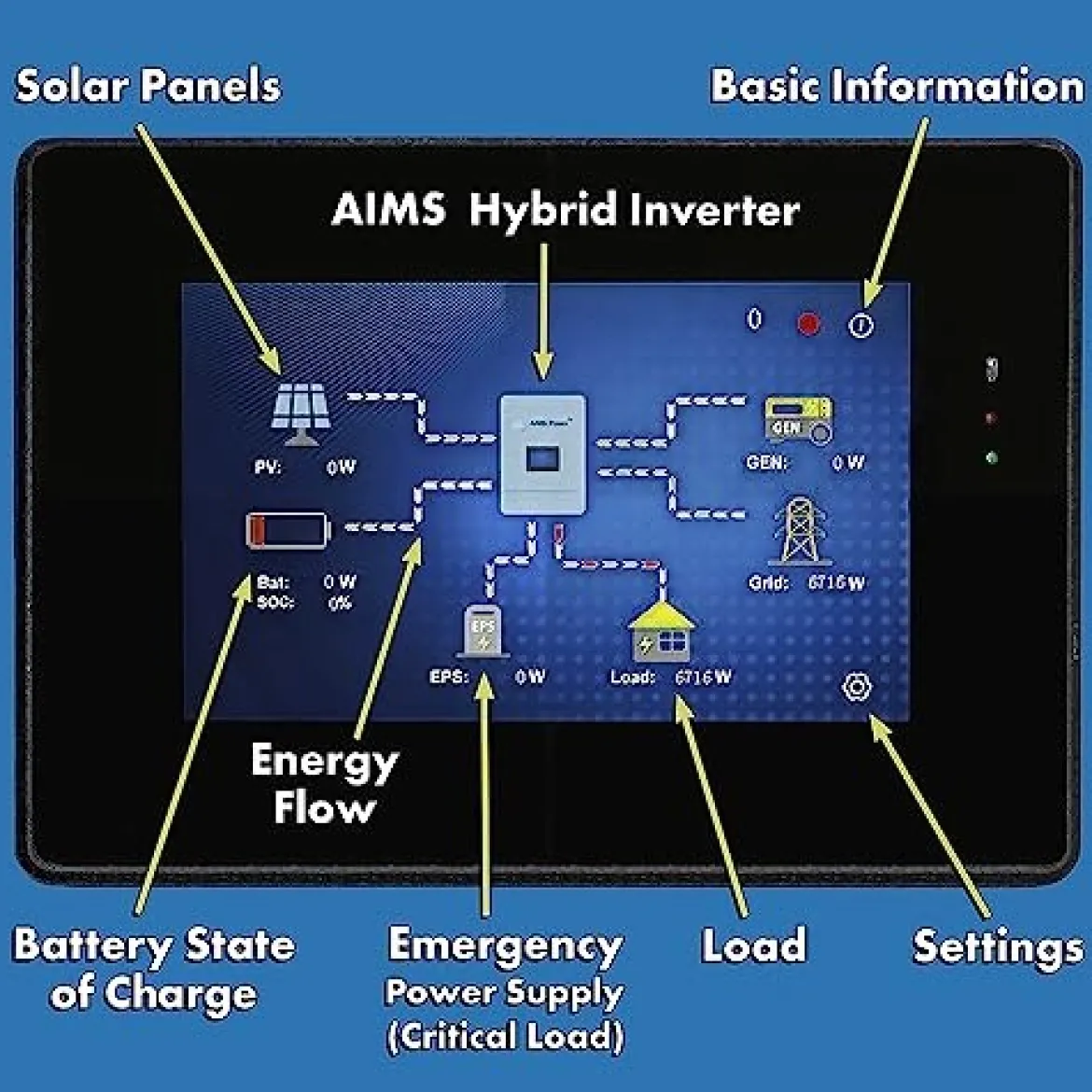

• Display: 5-inch Full Color LED
• Communication: RS485, CAN, Wi-Fi, 4G
• Certifications: UL 1741 SA, CSA 22.2 No. 107-01, UL 1998, FCC Part 15 Class B
• Warranty: 10 years
