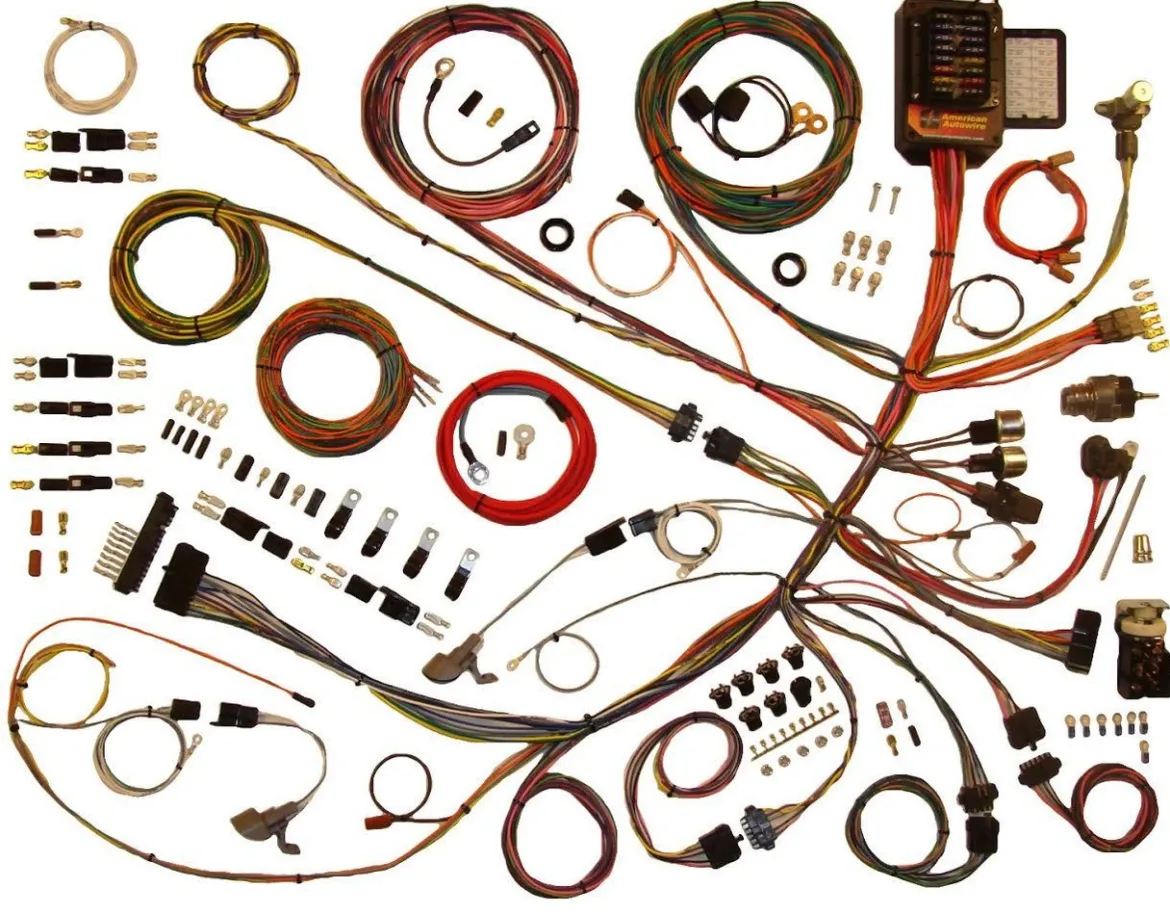

American Autowire 1961-66 Ford Truck Classic Update Kit (AAW510260)

The American Autowire 1961-66 Ford Truck Classic Update Kit (AAW510260) is a complete wiring solution designed to modernize and replace the entire electrical system of classic Ford trucks including the F-100, F-250, and F-350 models from 1961 to 1966. This kit is ideal for restorations or custom builds, supporting modern modifications such as EFI, aftermarket gauges, and air conditioning. It replaces brittle, outdated wiring with reliable GXL wiring and adds a modern ATO-style fuse panel to provide safety, durability, and enhanced capacity for high-performance accessories.

KEY FEATURES AND BENEFITS:

• Complete Electrical Upgrade: Replaces the entire factory wiring system with modern, reliable GXL wiring.
• Modern Compatibility: Supports upgrades like EFI, aftermarket A/C, and gauge systems.
• Enhanced Safety: Features an ATO-style fuse panel with modern fuses and integrated 175-amp mega fuse kit for high-output charging systems.
• Simplified Installation: Includes pre-built dash, engine, and rear harnesses with clearly labeled wires for easy identification.
• Improved Serviceability: Gauge cluster disconnect allows easy removal and servicing of the instrument panel.

SPECIFICATIONS:

• Product ID: AAW510260
• Vehicle Compatibility: 1961-1966 Ford F-100, F-250, and F-350
• Fuse Panel: ATO-style with enclosed cover
• Included Components:
  • Pre-built dash harness with gauge cluster disconnect
  • Engine and front light harness
  • Rear body harness
  • Replacement headlight switch with 30-amp circuit breaker
  • Floor-mounted dimmer switch
  • Standard turn signal flasher, hazard flasher, and horn relay
  • Replacement ignition switch
  • 175-amp mega fuse kit with 6-gauge charge cable
  • Steering column adapter kit
  • Power and tach leads for GM-style HEI distributors
  • Six-way power accessory plug

HOW TO USE:

1. Preparation: Disconnect the battery and remove the old wiring harness. Lay out the new kit to identify each section (dash, engine, rear).
2. Mount the Fuse Panel: Install the ATO fuse panel securely under the dashboard in an accessible location.
3. Install the Dash Harness: Route and connect the pre-built dash harness to gauges, switches, and lights. Use the gauge cluster disconnect for a neat installation.
4. Connect Engine and Front Lights: Route the harness through the firewall and connect to the alternator, starter, ignition (HEI or EFI), and headlights.
5. Route Rear Body Harness: Run the harness to the back and connect to taillights, license plate lamp, and fuel sender.
6. Final Connections: Install the headlight switch, dimmer switch, and mega fuse kit. Reconnect the battery and test all circuits.

BENEFITS OF USING AMERICAN AUTOWIRE 1961-66 FORD TRUCK CLASSIC UPDATE KIT (AAW510260):

• Eliminates risks of shorts, fire, and electrical failures common with old wiring.
• Provides added capacity for modern upgrades like EFI, aftermarket gauges, and A/C.
• Clearly labeled wires and pre-assembled harnesses reduce installation errors and time.
• Ensures long-term reliability and safety with heavy-gauge wires and high-amp support.
• Enhances the overall performance, value, and dependability of your classic Ford truck.

FEATURES:

• Modern ATO-style fuse panel with secure enclosed cover.
• Pre-built dash harness designed for straightforward installation.
• Dedicated gauge cluster disconnect for convenient service.
• Extra-long harness leads to allow custom routing.
• Integrated 175-amp mega fuse kit for high-output alternators.
• Color-coded, labeled wires for simplified identification.
• Heavy-gauge alternator feed wire with fusible link for protection.
• Compatible replacement ignition switch for HEI and EFI setups.
• Includes a six-way accessory plug for additional circuits.
