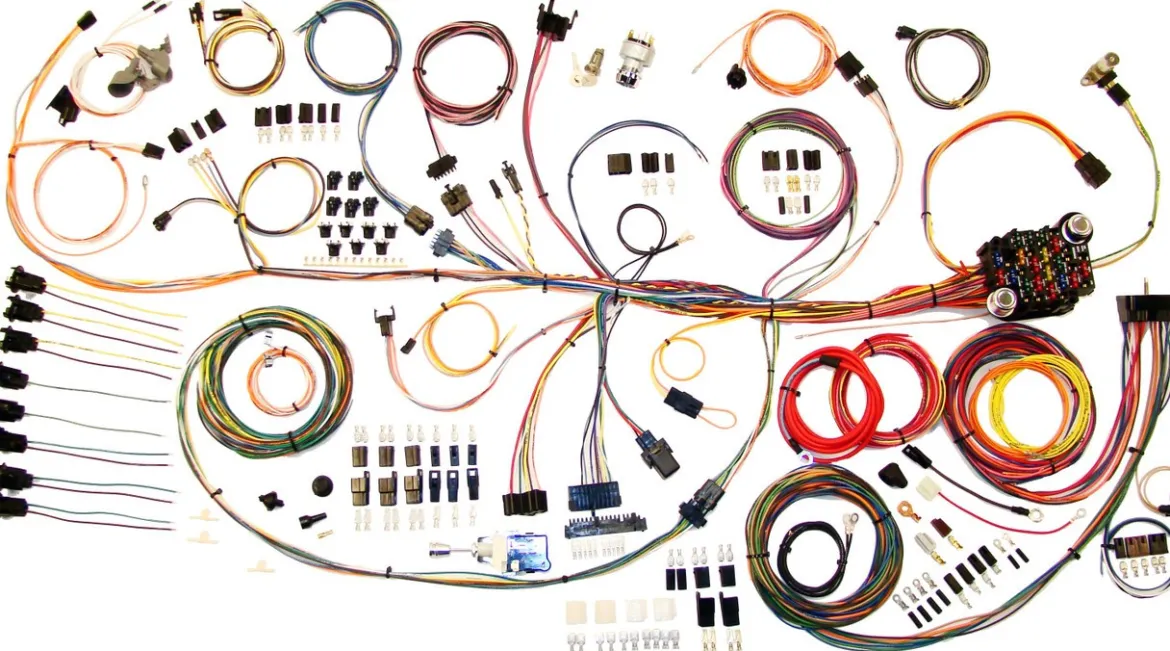

American Autowire 1964-67 Pontiac GTO Classic Update Kit (AAW510188)

The American Autowire 1964-67 Pontiac GTO Classic Update Kit (AAW510188) is a comprehensive wiring solution engineered for the complete electrical replacement of 1964-1967 Pontiac GTO, LeMans, and Tempest models. Designed for “restomod” projects, this kit provides a foundation that can handle the increased electrical demands of modern components and accessories. It is not intended for original OEM restorations but is specifically tailored to support popular add-ons such as electronic fuel injection (EFI), aftermarket gauges, and high-output alternators.

KEY FEATURES AND BENEFITS:

• Complete System Replacement: Replaces all original wiring from headlights to taillights for a fully integrated electrical system.
• Modern Compatibility: Accommodates EFI, HEI ignition, and aftermarket A/C or heating systems.
• Enhanced Safety and Reliability: Features an updated ATC fuse panel with modern fuses, plus a 175 amp mega fuse and 6-gauge charge cable for high-output charging systems.
• Simplified Installation: Wires are labeled every few inches, with pre-built harnesses and original-style bulkhead connectors included.
• Serviceability and Customization: Dash harness features a gauge cluster disconnect system and extra-long leads for flexible routing.

SPECIFICATIONS:

• Product ID: AAW510188
• Vehicle Compatibility: 1964-1967 Pontiac GTO, LeMans, and Tempest
• Fuse Type: ATO-style (ATC)
• Wire Type: GXL wire
• Included Components:
• Pre-built dash harness
• Engine and front light harness
• Rear body harness
• Headlight switch with 26 amp circuit breaker
• New floor dimmer switch
• Ignition switch with tumbler and key
• Six-way power accessory plug
• 175 amp mega fuse kit with 6-gauge charge cable
• Turn signal flasher, hazard flasher, and horn relay
• Connectors for late-model GM steering columns

HOW TO USE:

1. Preparation: Disconnect the battery, remove the old wiring harnesses, and prepare the chassis for installation.
2. Mounting the Fuse Panel: Securely install the new fuse panel under the dashboard in an accessible location.
3. Install Harnesses: Route and connect the main dash harness, then install the engine/front light harness and the rear body harness.
4. Connect Accessories: Attach switches, gauges, and other components using the provided schematics.
5. Final Checks: Inspect all connections, reconnect the battery, and test all electrical systems before operation.

BENEFITS OF USING AMERICAN AUTOWIRE 1964-67 PONTIAC GTO CLASSIC UPDATE KIT (AAW510188):

• Safe and Reliable: Provides a modern electrical foundation that reduces the risks associated with old wiring.
• Supports Modern Upgrades: Simplifies integration of EFI, HEI, and other aftermarket components.
• Enhanced Safety: Modern fuses and heavy-duty charge components minimize fire risks.
• Time-Saving: Pre-labeled wiring and detailed instructions streamline installation.
• Value-Adding: Improves functionality and enhances the value of classic Pontiac vehicles.

FEATURES:

• Encased ATC fuse panel for added protection
• Harnesses formed to fit original locations
• Dash harness with instrument cluster disconnect
• Engine harness with extra-long leads for custom routing
• Original-style bulkhead connectors included
• Six-way power accessory plug provided
• Rear body wiring with extra-long leads
• Replacement headlight switch with 26 amp circuit breaker
• Ignition switch compatible with HEI and EFI systems
• Connector included for late-model GM steering columns
