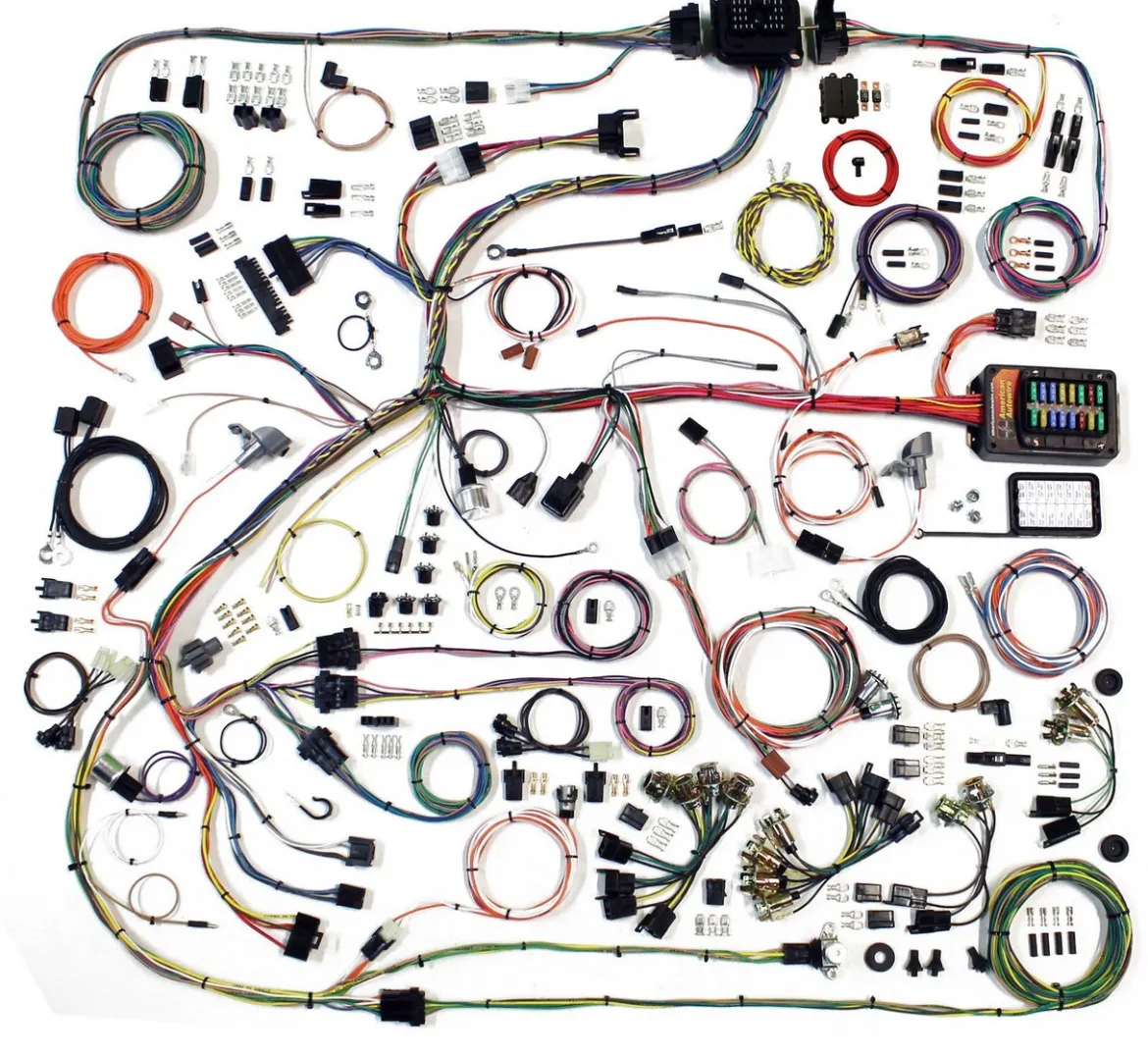

American Autowire 1968-70 Mopar B Body Classic Update Kit (AAW510634)

The American Autowire 1968-70 Mopar B Body Classic Update Kit (AAW510634) is a comprehensive wiring solution for a full vehicle rewire. It modernizes your classic Mopar’s electrical system, providing additional circuits and features to support popular modifications and aftermarket accessories while ensuring a reliable and organized electrical foundation.

KEY FEATURES AND BENEFITS:

• Accommodates Modern Upgrades: Supports EFI, aftermarket gauges, air conditioning, and power accessories with additional circuits beyond the original harness.
• Simplified Installation: Modern GXL wires labeled every 3-5 inches simplify installation and troubleshooting.
• Modern Fuse Panel: Updated ATO/ATC fuse panel with more circuits, designed to fit stock location with a template for minor firewall modifications.
• Enhanced Power and Charging Support: Includes a 175-amp mega fuse kit with 6-gauge charge cable for high-output alternators.
• Complete and Comprehensive: Provides pre-built dash, engine/front light, and rear body harnesses for a full vehicle rewire.

SPECIFICATIONS:

• Wire Type: GXL wire
• Fuse Type: ATO/ATC style
• Included Components:
  • New ATO/ATC fuse panel
  • Pre-built dash harness with gauge cluster disconnect system
  • Engine and front light harness
  • Rear body wiring harness
  • 175-amp mega fuse kit with 6-gauge charge cable
  • New headlight switch with internal circuit breaker
  • New floor dimmer switch
  • Original-style connectors and terminals
  • Steering column adapter kit
  • Correct original replacement printed circuit board connector

HOW TO USE:

• Preparation: Disconnect the battery and remove the old wiring harness.
• Fuse Panel Installation: Install the new ATO/ATC fuse panel in the stock location using the provided template for any firewall modifications.
• Harness Routing: Route the dash, engine, and rear body harnesses through the vehicle; extra-long leads allow flexible routing.
• Connect to Components: Use labeled wires and connectors to hook up headlights, taillights, engine sensors, gauges, and accessories.
• Steering Column Integration: Connect the harness to your stock or aftermarket steering column using the included adapter kit.
• Power Up: Install headlight switch, dimmer switch, and charging system components. Reconnect the battery and test the electrical system.

BENEFITS OF USING AMERICAN AUTOWIRE 1968-70 MOPAR B BODY CLASSIC UPDATE KIT (AAW510634):

• Safety and Reliability: Replaces old wiring prone to shorts and failures with a safer, robust system.
• Accommodates Growth: Extra circuits support future modifications and upgrades without adding separate wiring.
• Simplified Troubleshooting: Labeled wires make diagnosing electrical issues much easier.
• Professional Finish: Correct original-style connectors and modern fuse panel result in a clean, organized installation.
• Time-Saving: Pre-built harnesses and detailed instructions reduce complexity compared to building a custom harness.

FEATURES:

• Pre-built dash, engine, and rear body harnesses for a complete vehicle rewire.
• Unique “cluster harness disconnect” system for easy instrument cluster service.
• Extra-long wire leads for flexible factory or custom routing.
• New headlight switch with integrated circuit breaker.
• Includes horn relay, standard turn signal flasher, and hazard flasher mounted remotely on the harness.
• Provides a switched trigger wire for custom electric fan relay.
• Six-way power accessory plug for convenient power access.
• Connectors for both original points-type and GM H.E.I. distributors.
