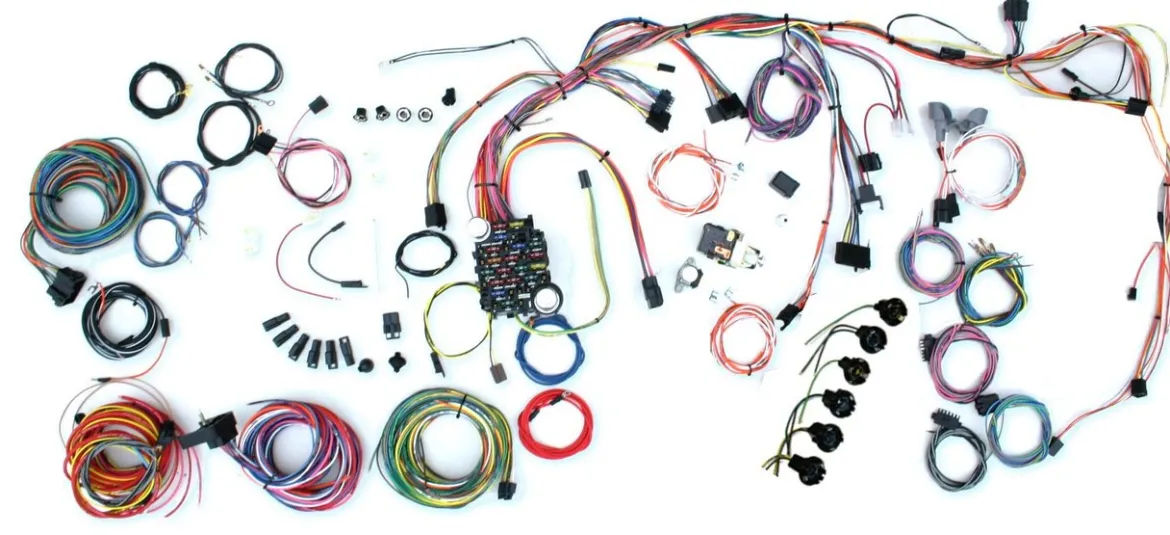

American Autowire 1969-72 Chevy Nova Classic Update Kit (AAW500878)

The American Autowire 1969-72 Chevy Nova Classic Update Kit (AAW500878) is a comprehensive wiring solution designed to completely replace your vehicle’s old electrical system with a modern, reliable one. It provides a full-vehicle harness that is specifically tailored to fit the 1969-72 Chevy Nova chassis while supporting the addition of a wide array of aftermarket components. The main benefit of this kit is its ability to handle the increased electrical load from popular modifications like electronic fuel injection, high-output alternators, and aftermarket gauges, which an original harness cannot safely support. The included modern ATC fuse panel offers superior circuit protection compared to the original glass fuses. The kit is engineered to streamline the installation process, featuring pre-built harnesses and wires that are clearly labeled every 3 to 5 inches, which significantly reduces installation time and minimizes the potential for errors.

KEY FEATURES AND BENEFITS:

• Modern Circuit Protection: ATC fuse panel provides superior safety compared to outdated glass fuses.
• Supports Aftermarket Upgrades: Designed to handle EFI, high-output alternators, aftermarket gauges, and more.
• Time-Saving Installation: Wires labeled every 3 to 5 inches minimize confusion during setup.
• Vehicle-Specific Fitment: Tailored for 1969-72 Chevy Nova models to ensure easy installation and compatibility.
• Comprehensive Kit: Includes pre-built harnesses, connectors, and a detailed instruction manual with full-color schematics.

SPECIFICATIONS:

• Product Name: 1969-72 Chevy Nova Classic Update Kit
• Part Number: AAW500878
• Wire Type: GXL automotive wire
• Fuse Panel: Modern ATC (blade-style) fuse panel
• Included Components:
• Pre-built dash harness
• Engine and front light harness with extra-long leads
• Rear body wiring harness
• Updated ATC fuse panel and fuses
• New headlight switch with 26 amp internal circuit breaker
• New floor dimmer switch
• 175 amp mega fuse kit with 6-gauge charge cable
• Standard turn signal flasher, hazard flasher, and horn relay
• Gauge cluster printed circuit board connector and terminals
• Original-replacement connectors, terminals, and lamp sockets
• Detailed, full-color instruction manual and schematics

HOW TO USE:

1. Preparation: Begin by safely disconnecting the battery and removing the old wiring harness from the vehicle. Carefully label any components or connections that you wish to reuse.
2. Dash Harness Installation: Route the new pre-built dash harness through the firewall. Connect it to the new ATC fuse panel, which fits in the original location.
3. Engine and Front Light Harness: Connect the engine and front light harness to the dash harness using the included original-style bulkhead connector. Route wires to headlights, turn signals, engine components, and charging system.
4. Rear Body Harness: Plug in the rear body harness and route it to the taillights, license plate lamp, and fuel tank sender. Trim leads to fit as needed.
5. Component Connection: Connect all switches, gauges, and accessories using the labeled wires and gauge cluster disconnect system.
6. Final Checks and Power-Up: Verify all connections with the provided schematic, then reconnect the battery and test all circuits.

BENEFITS OF USING AMERICAN AUTOWIRE 1969-72 CHEVY NOVA CLASSIC UPDATE KIT (AAW500878):

• Modernization: Upgrades your vehicle’s wiring for safety, reliability, and compatibility with today’s components.
• Vehicle-Specific Design: Tailored for Chevy Nova models, minimizing modification during installation.
• Safety Upgrade: GXL wiring and ATC fuses reduce fire risk from old or brittle wiring.
• Complete Solution: Provides everything needed to rewire the entire vehicle from headlight to taillight.
• Professional Results: Labeled wires and full-color schematics make the install process straightforward for both DIY and professional builds.

FEATURES:

• Updated ATC fuse panel with modern blade-style fuses.
• GXL automotive-grade wire throughout the harness.
• Labeled wires every 3 to 5 inches for easy identification.
• Pre-built dash, engine, and rear body harnesses.
• Exclusive gauge cluster disconnect system for stock or aftermarket instruments.
• Original-style bulkhead connectors for the engine compartment.
• Includes new headlight switch with internal circuit breaker and a new floor dimmer switch.
• 175 amp mega fuse kit to support high-output charging systems.
• Six-way power accessory plug for aftermarket components.
• Switched trigger wire for electric fan relay.
• Compatible with both original and late-model GM steering columns.
