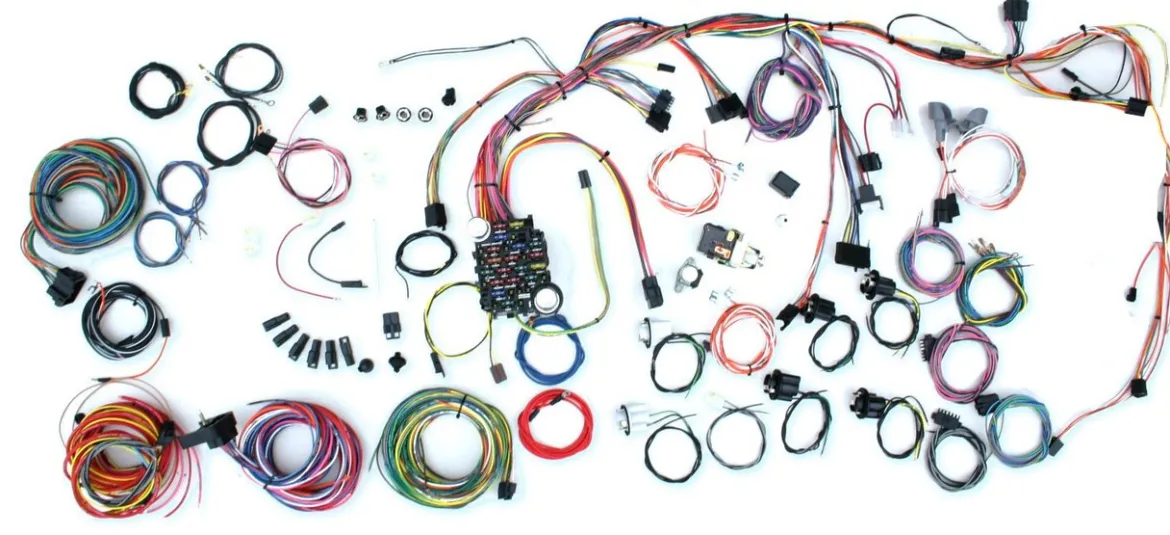

American Autowire 1969 Chevy Camaro Classic Update Kit (AAW500686)

The American Autowire 1969 Chevy Camaro Classic Update Kit (AAW500686) provides a modern, all-in-one electrical solution for a full vehicle rewire. This comprehensive kit is designed for projects that require more circuits and power than the original chassis harness could provide. It simplifies the electrical overhaul of your classic Camaro by including all necessary wiring from the headlights to the taillights. The system is built to accommodate popular modern upgrades and accessories like electronic fuel injection (EFI), aftermarket gauges, and modern heating and air conditioning systems. The included components, such as a modernized ATO fuse panel and high-quality GXL wire, ensure a safe and reliable electrical system.

KEY FEATURES AND BENEFITS:

• Complete Rewire Solution: Covers the entire vehicle from headlights to taillights, providing a comprehensive electrical foundation.
• Modern Compatibility: Supports upgrades like electronic fuel injection (EFI), aftermarket gauges, and modern HVAC systems.
• Enhanced Safety: Features a modern ATO fuse panel and high-quality GXL wire for improved reliability and protection.
• Simplified Installation: Pre-built harnesses with labeled wires reduce time and complexity during installation.
• Upgrade Ready: Designed with additional circuits and high-output support for future electrical modifications.

SPECIFICATIONS:

• Vehicle Compatibility: 1969 Chevrolet Camaro
• Fuse Panel Type: ATO fuse panel with modern fuses
• Wire Type: GXL automotive-grade wire, labeled every 3 to 5 inches
• Charging System Support: 175-amp mega fuse kit with a 6-gauge charge cable for high-output alternators
• Included Components:
• Pre-built harnesses for the dash, engine, front lights, and rear body
• New headlight switch with 26 amp internal circuit breaker
• New floor dimmer switch
• New horn relay
• Original-style bulkhead connectors
• Connectors for factory and aftermarket steering columns and gauge clusters
• Connector, wiring, and lamp sockets for factory center console

HOW TO USE:

1. Prepare the Vehicle: Safely disconnect and remove the old wiring harness from your 1969 Camaro. Remove all accessories and components connected to the original electrical system.
2. Mount the Fuse Panel: Install the new ATO fuse panel in the original factory location. Secure it according to the included instructions.
3. Install the Harnesses: Begin with the pre-built dash harness, connecting it to the new fuse panel. Route and connect the engine, front light, and rear body harnesses as directed. Use the labeled wires for proper placement.
4. Connect Components: Attach the wiring to headlights, taillights, engine components (distributor, alternator), gauge cluster, steering column, and any aftermarket accessories.
5. Secure and Test: Secure all wiring runs and connections to prevent damage. Re-install the battery and test each electrical circuit (lights, horn, gauges, etc.) to confirm proper function.

BENEFITS OF USING AMERICAN AUTOWIRE 1969 CHEVY CAMARO CLASSIC UPDATE KIT (AAW500686):

• Improved Safety: Modern fuse panel and high-quality wiring reduce the risk of shorts and fire hazards.
• Future-Proofing: Extra circuits and high-output support allow for easy integration of future electrical upgrades.
• Ease of Installation: Labeled, pre-built harnesses and clear instructions save time and effort.
• Seamless Integration: Designed with original-style connectors and compatibility with aftermarket components for a professional finish.

FEATURES:

• Updated ATC fuse panel with modern fuses
• Wire functions labeled every 3 to 5 inches
• Pre-built dash harness with a gauge cluster disconnect system
• Engine and front light harnesses with extra-long leads for custom routing
• Original-style bulkhead connectors included
• Six-way power accessory plug for aftermarket accessories
• Rear body wiring with extra-long leads for flexible routing
• 175 amp mega fuse kit with 6-gauge charge cable for high-output systems
• Original-style replacement connectors, terminals, and lamp sockets
• New headlight switch with 26 amp internal circuit breaker and new floor dimmer switch
• Connector for 69+ GM steering column with mating connector for late-model columns
• All necessary connectors, wiring, and lamp sockets for the factory center console
