American Autowire 1969 Ford Mustang Classic Update Kit (AAW510177)

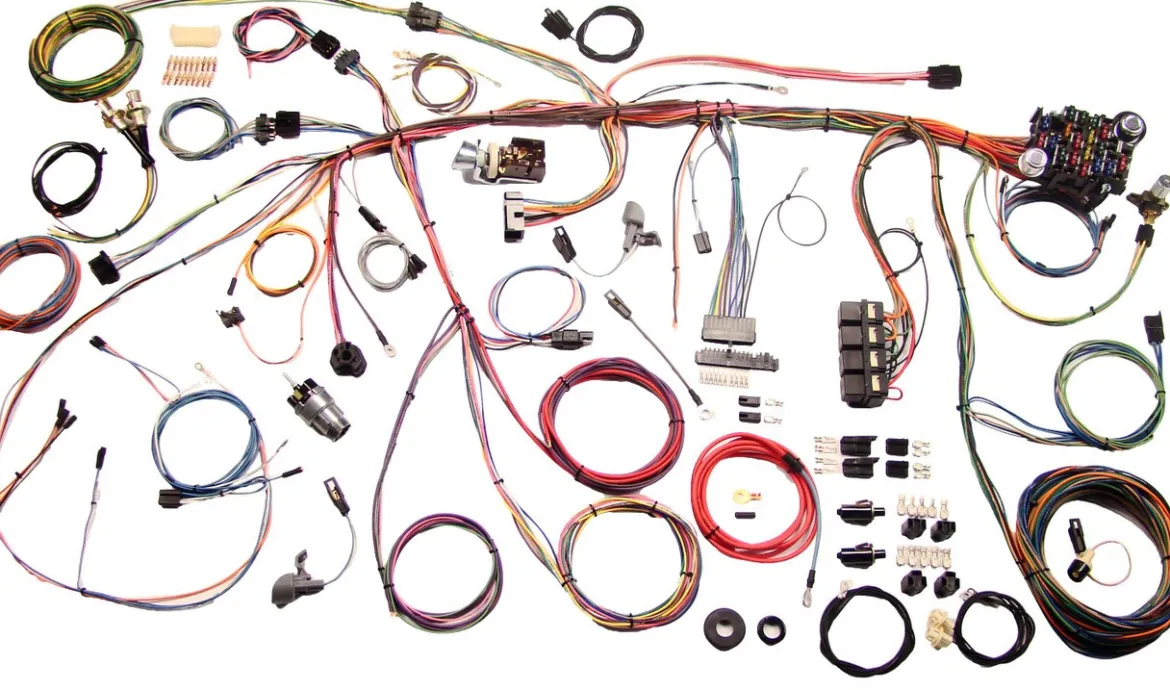

The American Autowire 1969 Ford Mustang Classic Update Kit (AAW510177) is a comprehensive wiring solution engineered to modernize the electrical system of your classic Mustang. Specifically designed for modified vehicles, this kit provides additional circuits beyond the original harness, making it ideal for accommodating popular aftermarket accessories. With pre-built harnesses, updated components, and labeled GXL wire, it ensures a reliable, professional-quality installation while enhancing the vehicle’s safety and performance.

KEY FEATURES AND BENEFITS:

• Comprehensive Wiring Solution: Complete system replacement with additional circuits for modern upgrades.
• Support for Aftermarket Accessories: Designed to accommodate EFI, aftermarket gauges, high-output alternators, and more.
• Pre-Built Dash Harness: Includes a gauge cluster disconnect system for easy service and access.
• Modern Circuit Protection: Features built-in relays for headlights, fog lights, and horn, reducing load on switches.
• High-Output Charging Support: Equipped with a 175-amp mega fuse kit and 6-gauge charge cable.
• Labeled Wiring: GXL wires are labeled every 3 to 5 inches for easier installation and troubleshooting.
• Flexible Installation: Extra-long leads allow custom routing for a professional finish.

SPECIFICATIONS:

• Part Number: AAW510177
• Application: 1969 Ford Mustang (for modified vehicles)
• Harness Type: Classic Update Series, Complete Wiring Kit
• Fuse Panel: Updated ATC fuse panel and fuses
• Wire Type: Modern GXL wire with function labels every 3 to 5 inches
• Included Components:
  • Pre-built dash harness with gauge cluster disconnect system
  • Engine and front light harness
  • Rear body wiring harness
  • Headlight switch with 26 amp internal circuit breaker
  • New floor dimmer switch
  • Replacement ignition switch
  • 175 amp mega fuse kit with 6-gauge charge cable
  • Built-in headlight, fog light, and horn relays
  • Six-way power accessory plug
  • Original-replacement connectors, terminals, and lamp sockets
  • Steering column adapter kit
  • Color schematics and instructions
  • All required hardware

HOW TO USE:

1. Preparation: Disconnect the battery before installation to avoid electrical shorting.
2. Installation: Mount the main fuse panel harness under the dash near the firewall as per instructions.
3. Wiring: Follow the color schematics to connect engine, front lights, dash, and rear body harnesses. Use labeled wires for guidance.
4. Grounding: Ensure proper grounding (battery to engine block, frame, and body) before reconnecting the battery.
5. Final Check: Test all circuits and components to confirm proper functionality.

BENEFITS OF USING AMERICAN AUTOWIRE 1969 FORD MUSTANG CLASSIC UPDATE KIT (AAW510177):

• Replaces old, brittle wiring with a reliable modern solution.
• Supports high-demand aftermarket accessories such as EFI and air conditioning.
• Improves safety with modern relays and circuit protection.
• Simplifies troubleshooting and modifications with labeled wires.
• Provides an organized and professional-quality installation with detailed schematics.

FEATURES:

• Designed for modified 1969 Ford Mustangs requiring more circuits than stock.
• Includes pre-built dash harness and gauge cluster disconnect system.
• Features a modern ATC fuse panel and labeled GXL wiring.
• Equipped with built-in relays for headlights, fog lights, and horn.
• Provides a 175-amp mega fuse kit with a 6-gauge charge cable.
• Includes new ignition switch, headlight switch, and floor dimmer switch.
• Comes with extra-long leads for flexible routing of engine and body harnesses.
• Compatible with both stock and aftermarket steering columns via adapter kit.
• Supplied with original-style connectors, terminals, and lamp sockets.
• Includes full-color schematics and step-by-step instructions.
