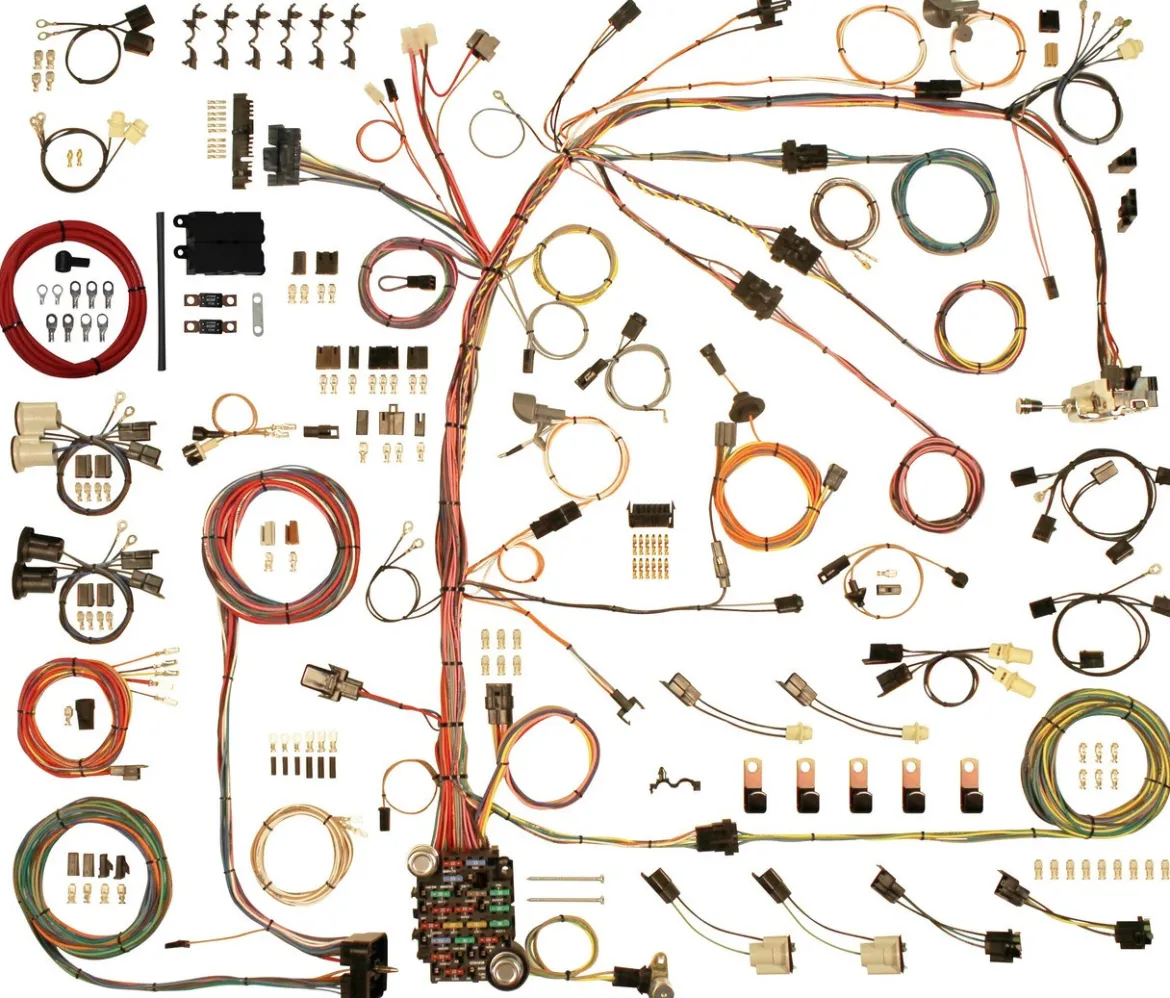

American Autowire 1974-77 Chevy Camaro Classic Update Kit (AAW510567)

The American Autowire 1974-77 Chevy Camaro Classic Update Kit (AAW510567) is a comprehensive wiring solution designed to replace the entire electrical system of your vehicle. This kit provides a reliable, modern foundation for any restoration or modification project, allowing you to easily integrate popular aftermarket accessories and handle the demands of today’s electronics. Every detail has been considered to make the installation process as straightforward as possible, from the labeled wires to the pre-built harnesses and original-style connectors.

KEY FEATURES AND BENEFITS:

• Modern Fuse Panel: Includes an updated ATO-style fuse panel with extra circuits to support accessories such as electronic fuel injection and modern audio systems, using readily available blade-style fuses.
• Labeled GXL Wires: All wires are high-temperature GXL, labeled every 3-5 inches with their function to simplify installation and future troubleshooting.
• Comprehensive Harnesses: Pre-built individual harnesses for dash, engine, and rear body sections ensure a clean, organized electrical system throughout the vehicle.
• Supports Aftermarket Upgrades: Designed to accommodate a variety of aftermarket components, with extra-long leads for custom routing and connections for popular upgrades like high-output alternators and both stock and late-model steering columns.
• Original-Style Connectors: Many connectors are original-style, allowing direct plug-and-play connections with stock components while maintaining a modern electrical backbone.

SPECIFICATIONS:

• Included Components:
• Main dash harness
• Engine harness
• Front light harness
• Rear body harness
• ATO-style fuse panel
• Replacement headlight switch
• New floor dimmer switch
• 175-amp mega fuse kit with 6-gauge charge cable
• Standard turn signal and hazard flashers
• Horn relay
• Original-style connectors and terminals
• Detailed, full-color installation instructions

HOW TO USE:

• Preparation: Disconnect the battery and remove the old wiring harnesses. Organize the new harnesses and review the instructions and full-color schematics.
• Install the Fuse Panel: Mount the new ATO-style fuse panel in its designated location, typically on the firewall, ensuring a secure fit before connecting any harnesses.
• Install the Dash Harness: Route the pre-built dash harness and connect it to the fuse panel. Attach labeled wires to the ignition switch, light switch, instrument cluster, and other dash components.
• Install Engine and Front Light Harnesses: Connect to the main bulkhead connector on the firewall. Route wires to headlights, turn signals, engine sensors, coil, and other engine bay components.
• Install the Rear Body Harness: Connect to the main harness and route to the rear of the vehicle. Connect wires to tail lights, brake lights, side markers, and fuel tank sender.
• Final Connections: Install the headlight and dimmer switches. Reconnect the battery and test all electrical functions to ensure proper operation.

BENEFITS OF USING THE AMERICAN AUTOWIRE 1974-77 CHEVY CAMARO CLASSIC UPDATE KIT (AAW510567):

• Improved Safety: Replacing old wiring with modern GXL wire and a new fuse panel reduces the risk of shorts and electrical fires.
• Simplified Installation: Pre-built harnesses and clearly labeled wires reduce the time and complexity of a full vehicle rewire.
• Future-Proofing: Extra circuits and support for high-output charging systems allow easy addition of future accessories without overloading.
• Reliable Performance: Ensures stable, correct power to all electrical components, from headlights to ignition.

FEATURES:

• New ATO fuse panel with extra circuits for modern accessories
• GXL-type wire with circuit functions printed every 3 to 5 inches
• Pre-built dash, engine, and rear body harnesses
• Supports both stock and most aftermarket instrument clusters
• Connects to original 1974-77 GM steering columns and most late-model aftermarket columns
• Six-way power accessory plug for convenient power sourcing
• High-output charging system support with a 175-amp mega fuse kit
• Includes new headlight and dimmer switches
• Pre-wired leads for electric choke and electric speedometer
• Designed to accommodate electronic fuel injection (EFI) systems
