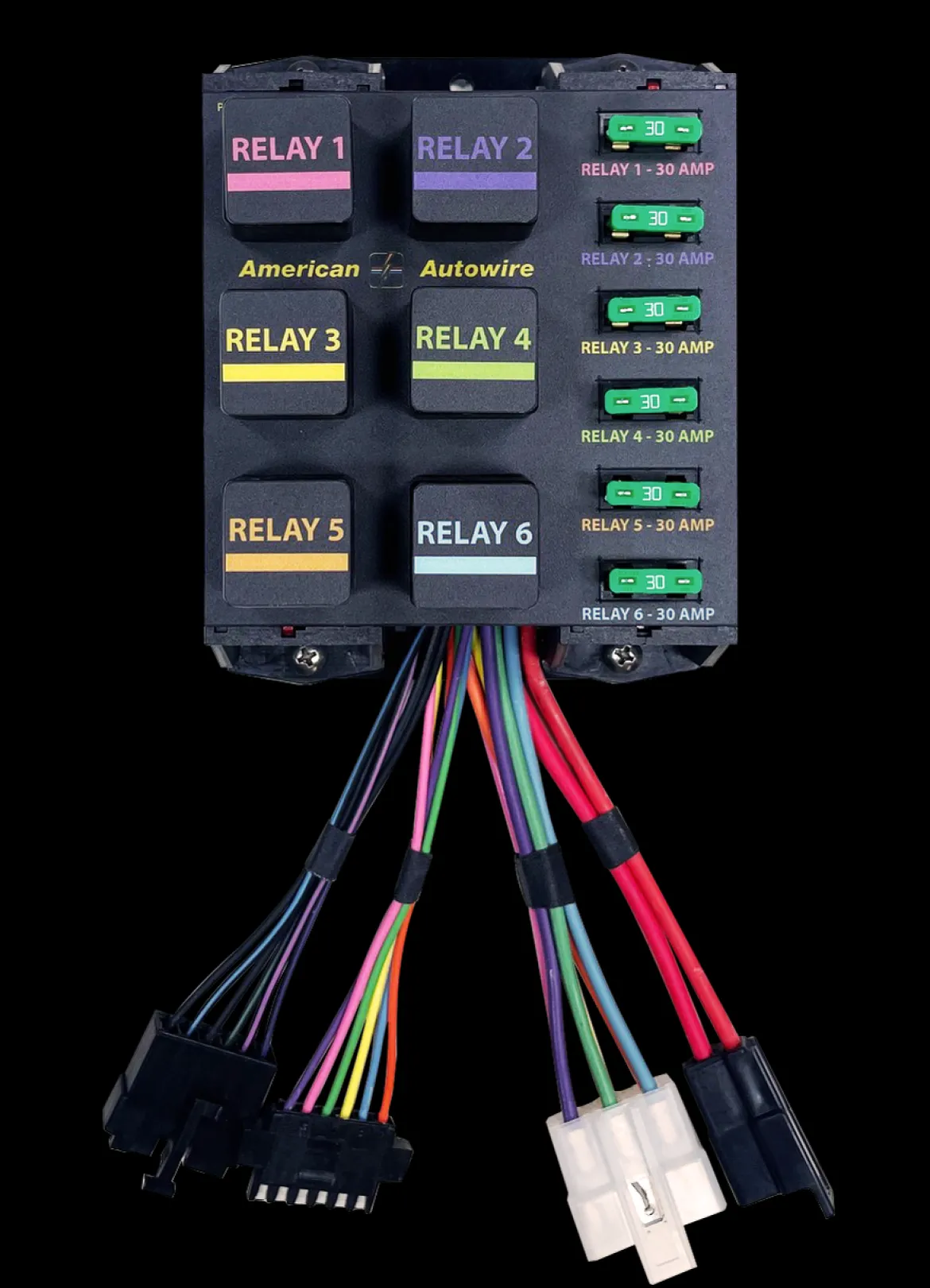

American Autowire 6-Position Banked Relay Panel (AAW510922)

The American Autowire 6-Position Banked Relay Panel (AAW510922) is a comprehensive solution designed to organize and simplify your vehicle’s electrical system. This pre-assembled kit provides a single, central hub for wiring and protecting up to six electrical accessories. It’s the perfect choice for anyone undertaking a new build, a restoration project, or simply looking to clean up the existing wiring in a modified vehicle. By consolidating your relays and fuses into one compact panel, you can eliminate clutter and ensure a reliable, safe, and professional-looking electrical setup.

KEY FEATURES AND BENEFITS:

• Centralizes your electrical components, eliminating scattered relays and fuses throughout the vehicle.
• Pre-assembled panel saves time and effort during installation.
• Durable G10 composite base plate ensures long-lasting reliability.
• Each relay can be configured for ground or 12-volt trigger, providing installation flexibility.
• Color-coordinated labels make identifying and managing circuits easier.

SPECIFICATIONS:

• Part Number: AAW510922
• Dimensions: 4.5 inches x 6.0 inches x 3.25 inches (Height)
• Capacity: 6-position
• Included in the Kit:
• Pre-assembled 6-position relay panel
• Fuses
• Six 30-amp relays
• Color-coordinated labels
• Detailed installation instructions
• Hardware
• 48-inch GXL wire lead

HOW TO USE:

1. Mount the Panel: Choose a secure, accessible location in your vehicle and mount the panel using the provided hardware.
2. Connect the Power: Attach the included 48-inch GXL wire lead to the main power source, ensuring it is properly fused and protected.
3. Wire Your Accessories: Connect the positive and trigger wires for each accessory to the panel, configuring each relay for ground or 12-volt operation as needed.
4. Install Fuses and Relays: Place the provided fuses and 30-amp relays into their designated positions on the panel.
5. Label Your Circuits: Apply the included color-coordinated labels to identify each circuit for easy troubleshooting and future upgrades.

BENEFITS OF USING THE AMERICAN AUTOWIRE 6-POSITION BANKED RELAY PANEL (AAW510922):

• Provides a clean, organized installation that simplifies troubleshooting and maintenance.
• Reduces wiring clutter and minimizes potential failure points.
• Constructed with high-quality materials, including G10 composite base and 6-gauge bus bars, for durability.
• Offers a central location for relays and fuses, improving protection and accessibility.
• Pre-assembled design and clear labeling save time during installation and upgrades.

FEATURES:

• Fully assembled panel for hassle-free installation.
• 6-gauge bus bars deliver strong and reliable power distribution.
• Non-conductive G10 composite base plate provides insulation and durability.
• Includes 48 inches of GXL wire for flexible power connections.
• Relays configurable for ground or 12-volt operation.
• Includes fuses, 30-amp relays, and color-coded labels.
• Ideal for new builds or cleaning up existing vehicle wiring systems.
