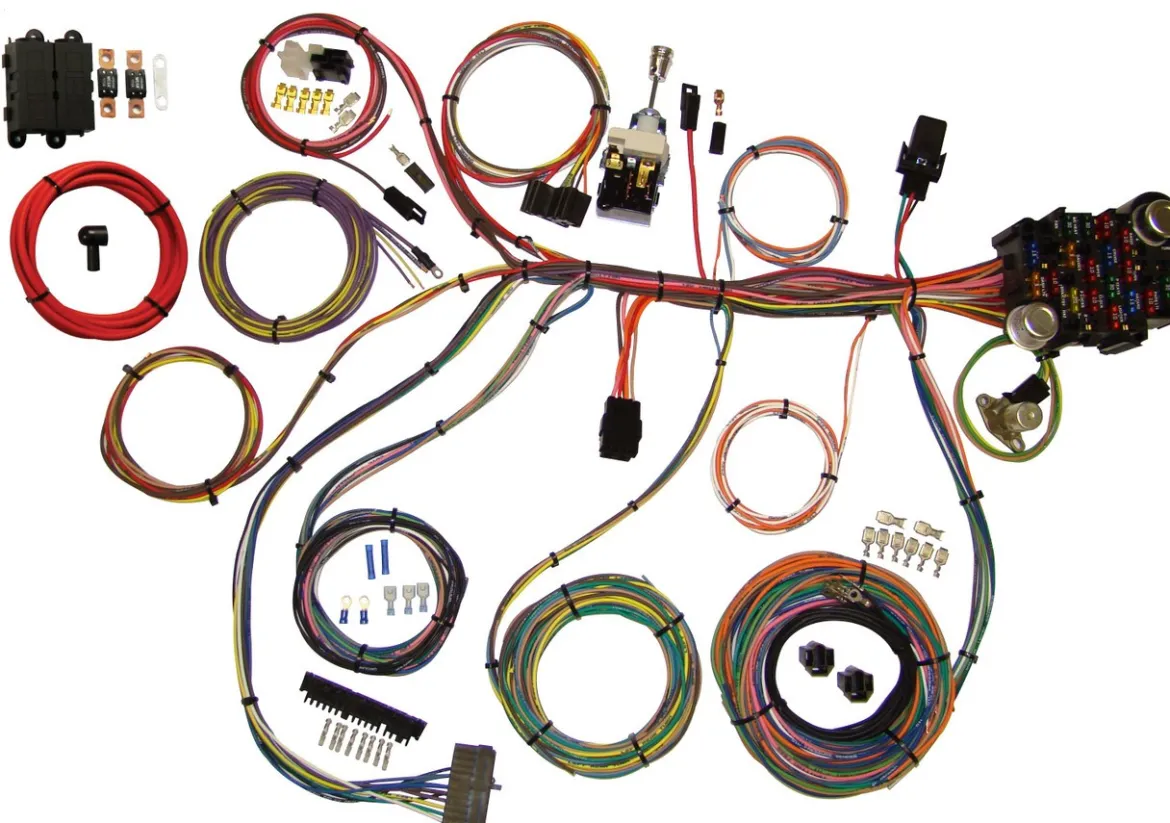

American Autowire Power Plus 20 Universal Wiring System (AAW510008)

The American Autowire Power Plus 20 Universal Wiring System (AAW510008) is a comprehensive, integrated wiring system that provides an efficient and organized solution for rewiring custom and classic vehicles. Its direct-run design eliminates the need for complex sub-harnesses, making installation simpler and more convenient. The system includes a pre-wired, factory-style fuse box with GM color-coded GXL wire for easy circuit identification, as well as heavy-gauge connections capable of supporting high-amperage electrical systems.

KEY FEATURES AND BENEFITS:

• Eliminates complex sub-harnesses with a direct-run design for a streamlined installation.
• Pre-wired, factory-style fuse box for reliability and ease of use.
• High-quality, pre-labeled GXL wire that is GM color-coded for easy identification.
• Dedicated heavy-gauge alternator and main power connections support high-amperage systems.
• Reduces installation time while providing a cleaner, more organized wiring setup.

SPECIFICATIONS:

• Circuit Count: 20 circuits
• Fuse Style: ATO-style fuses
• Wire Type: GXL (General Purpose Cross-linked) wire
• Wire Labeling: Labeled every 3 to 4 inches
• Kit Contents:
• Pre-wired fuse panel
• GM-style steering column and ignition connections with male connectors and terminals
• Headlight and floor dimmer switches
• Heavy-gauge alternator and main power kit with 6-gauge wire and two 175-amp mega fuses
• Dedicated 6-way accessory power feed plug
• Integrated horn relay wiring and relay
• Complete installation instructions and schematics
• Headlight connectors and terminals

HOW TO USE:

1. Preparation: Read the installation instructions and schematics thoroughly. Disconnect the vehicle’s battery.
2. Fuse Box Mounting: Install the pre-wired fuse box under the dashboard or other recommended location.
3. Harness Routing: Route the pre-labeled wires to their destinations such as the engine, lighting, and interior accessories.
4. Connecting Circuits: Attach wires to the corresponding components using the provided connectors and terminals.
5. Accessory Integration: Use the 6-way accessory plug to add aftermarket components like radios or power windows.
6. Final Connections: Connect heavy-gauge alternator and main power feeds using the supplied mega fuses.
7. Final Checks and Power-Up: Verify all connections, reconnect the battery, and test each circuit before completing assembly.

BENEFITS OF USING THE AMERICAN AUTOWIRE POWER PLUS 20 UNIVERSAL WIRING SYSTEM (AAW510008):

• Streamlined Installation: Direct-run design reduces complexity and installation time.
• Durable Wiring: High-quality GXL wire ensures long-lasting performance and resistance to heat and abrasion.
• Easy Identification: Pre-labeled, GM color-coded wiring simplifies routing and troubleshooting.
• High-Amp Capability: Heavy-duty alternator and power feeds support modern, power-demanding systems.
• Comprehensive Guidance: Detailed instructions and schematics make the rewire manageable for professionals and enthusiasts.

FEATURES:

• Simplified direct-run wiring structure
• Factory-style pre-wired fuse panel
• 6-way accessory plug for aftermarket add-ons
• Dedicated engine and lighting feeds with extra-long leads
• High-amperage protection via two 175-amp mega fuses
• Integrated horn relay within the main harness
• Flexible rear body wiring for custom or stock routing
• Adaptable to most GM-style steering columns
• Includes detailed schematics and installation manual
