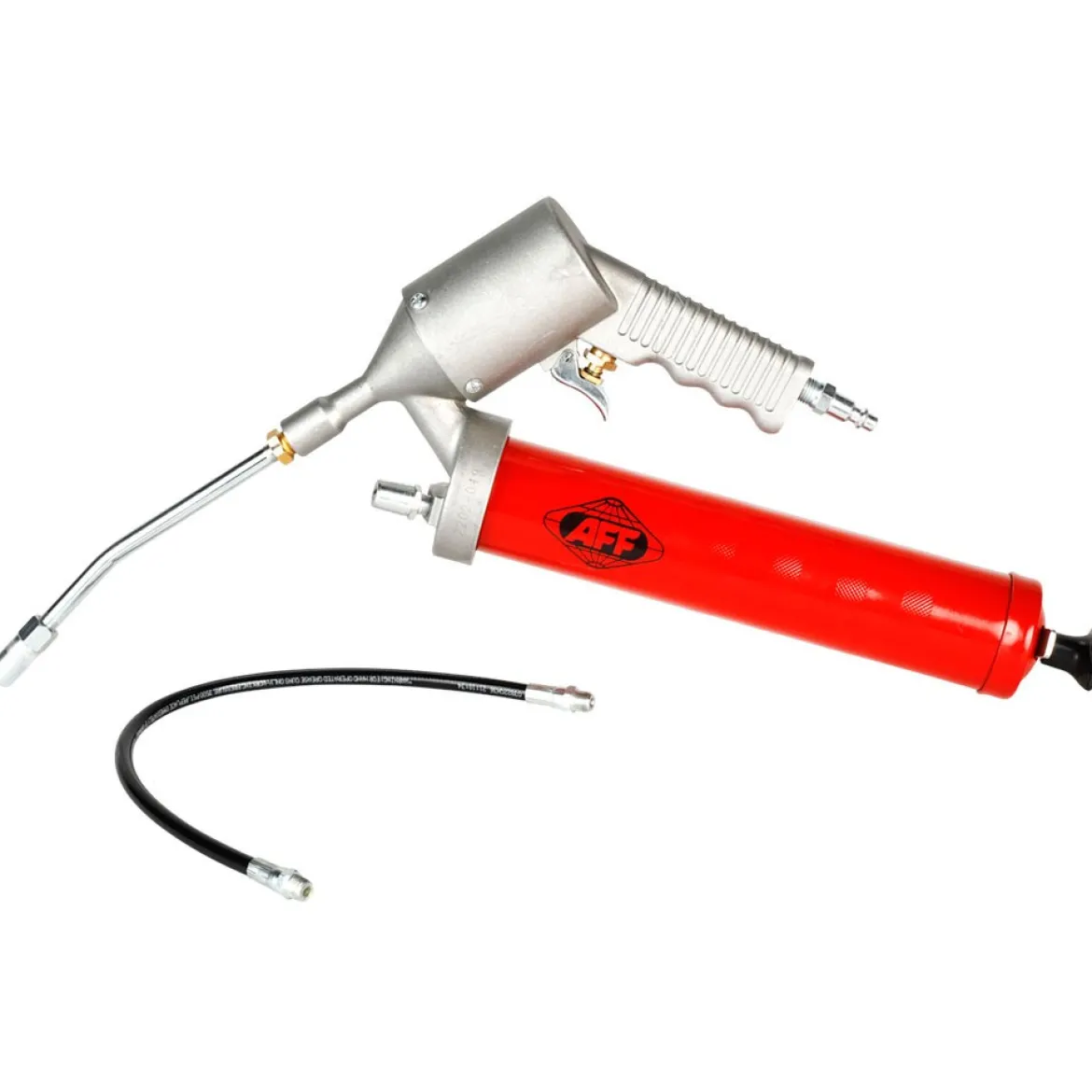

American Forge & Foundry Continuous Flow Grease Gun (8605)

The American Forge & Foundry Continuous Flow Grease Gun (8605) is an air-powered grease gun engineered for continuous lubrication. Designed to provide a steady flow of grease, this tool streamlines maintenance tasks for automotive, agricultural, and industrial equipment. The unit operates pneumatically, delivering a constant stream of lubricant to fittings with the simple pull of a trigger. Its robust construction and high-pressure capability make it a practical choice for workshops and service centers. The AFF 8605 is designed for versatility, accepting standard 14 oz grease cartridges as well as bulk and suction loading methods. This makes it a valuable addition to any professional’s toolkit, ensuring efficient and reliable greasing operations.

KEY FEATURES AND BENEFITS:

• Continuous Flow Operation: The grease gun delivers a continuous stream of grease, which helps prevent air pockets from forming and ensures complete, consistent lubrication of bearings, joints, and other components. This feature saves time and reduces the effort required for extensive greasing jobs.
• Versatile Loading Options: With the ability to use 14 oz grease cartridges, bulk grease, or suction to fill the barrel, this tool offers flexibility for different job requirements. This allows you to choose the most convenient and cost-effective method for your needs.
• High-Pressure Performance: The AFF 8605 operates at a maximum pressure of 4,800 PSI, allowing it to easily clear clogged or stubborn grease fittings. This power ensures that grease reaches all necessary points, even in demanding applications.

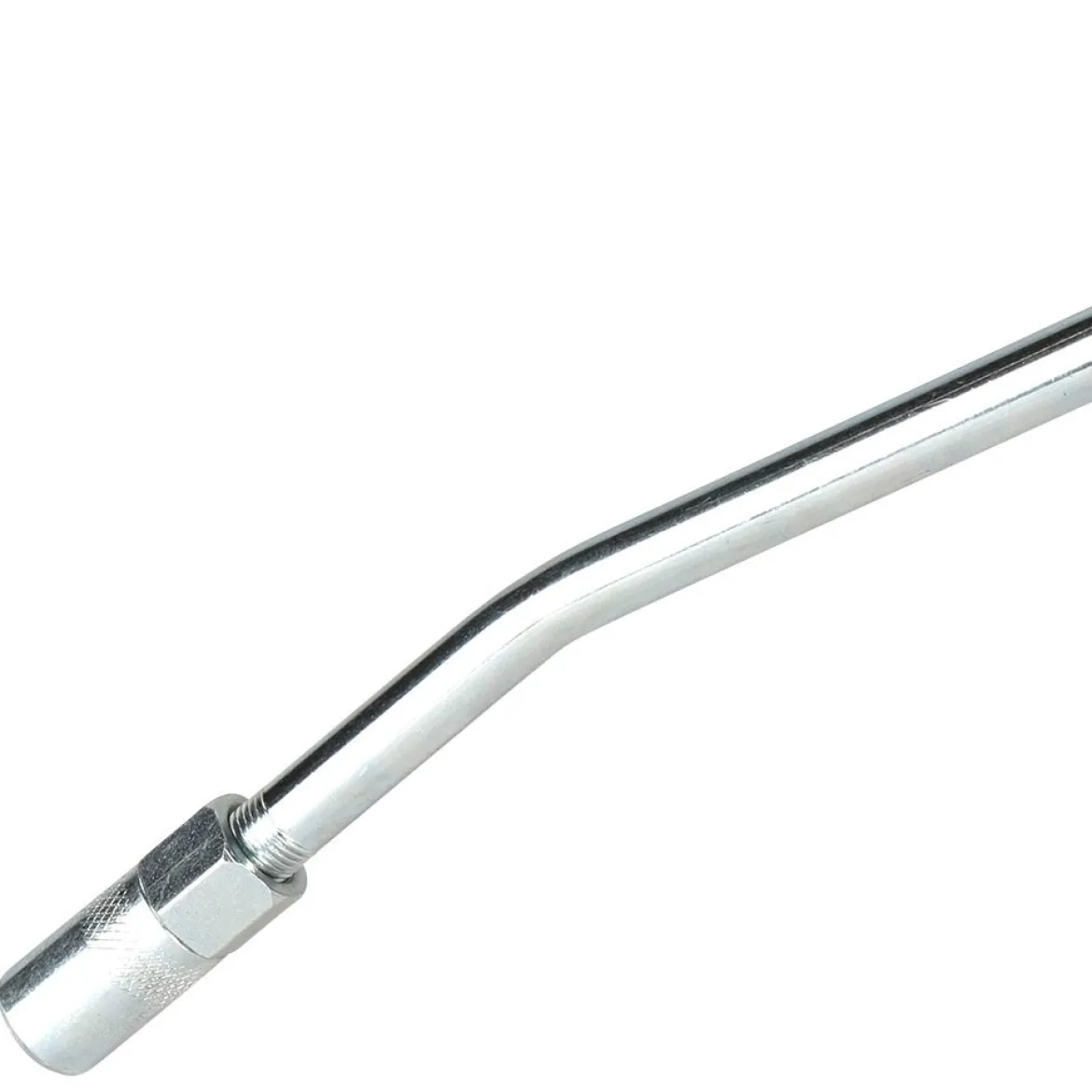

• Complete Kit: The product comes with a 6-inch rigid extension and a 12-inch flexible hose, providing the tools needed to access hard-to-reach fittings and tight spaces right out of the box. A heavy-duty coupler and a 1/4″ NPT male quick coupler fitting are also included for immediate use.

SPECIFICATIONS:

• Operating Pressure: 40–120 PSI
• Maximum Operating Pressure: 4,800 PSI
• Capacity: 14 oz cartridge or 16.9 oz bulk grease
• Air Inlet: 1/4″ NPT
• Empty Weight: 4.25 lbs.
• Ship Weight: 4.5 lbs.
• Included in the box: 6-inch rigid extension, 12-inch flexible hose, heavy-duty grease coupler, and a 1/4″ NPT male quick coupler fitting

HOW TO USE:

• Prepare the Grease Gun: Before you begin, ensure the gun is clean and ready for use.
• Load the Grease:
  • Cartridge: Unscrew the gun’s head, pull the plunger rod all the way back, and lock it in place. Insert a 14 oz cartridge, open end first, and then remove the metal foil seal. Screw the head back on securely.
  • Bulk or Suction: Fill the barrel with your chosen bulk grease or use the suction method to draw grease directly from a container.
• Connect the Air Hose: Attach an air hose to the 1/4″ NPT air inlet on the grease gun.
• Prime the Gun: Press the bleeder valve to release any trapped air. Once air is purged, the grease gun is ready to operate.
• Grease the Fitting: Place the coupler securely onto the grease fitting. Press the trigger to start the continuous flow of grease.
• Release and Remove: Release the trigger to stop the flow of grease, and then carefully remove the coupler from the fitting.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY CONTINUOUS FLOW GREASE GUN (8605):

• The continuous flow design provides a smooth and efficient greasing process, eliminating the need for repeated pumping and reducing operator fatigue.
• High-pressure delivery system effectively tackles a wide range of lubrication challenges, from routine maintenance to breaking through stubborn, clogged fittings.
• Multiple loading methods allow the tool to adapt to various work environments and grease supply options.
• Comes with essential accessories for immediate use, enhancing versatility and convenience.
• Ensures longevity and optimal performance of equipment by providing reliable lubrication.

FEATURES:

• Provides up to 14 oz of grease output per minute for efficiency.
• Ergonomic pistol grip design ensures comfort and easy control during use.

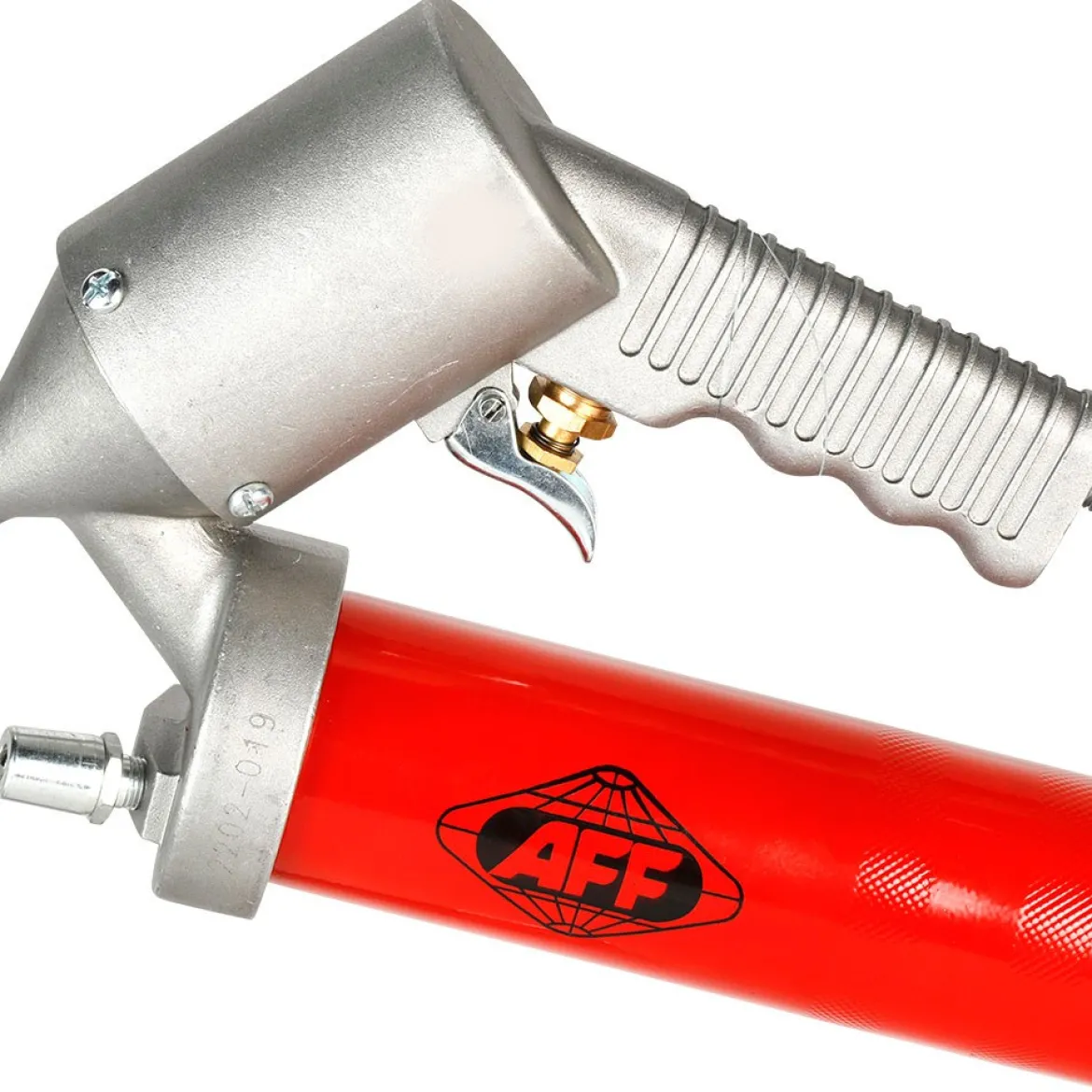

• Durable aluminum head construction built for long-term reliability.
• Bulk load valve doubles as an air bleeder valve for convenience.
• Supports cartridge, bulk, and suction loading for flexible operation.
• Lightweight at only 4.25 lbs, making it easy to handle and maneuver.
• Includes a 12-inch flexible hose for improved access to tight spaces.
• Operates seamlessly with a standard air compressor for continuous use.
