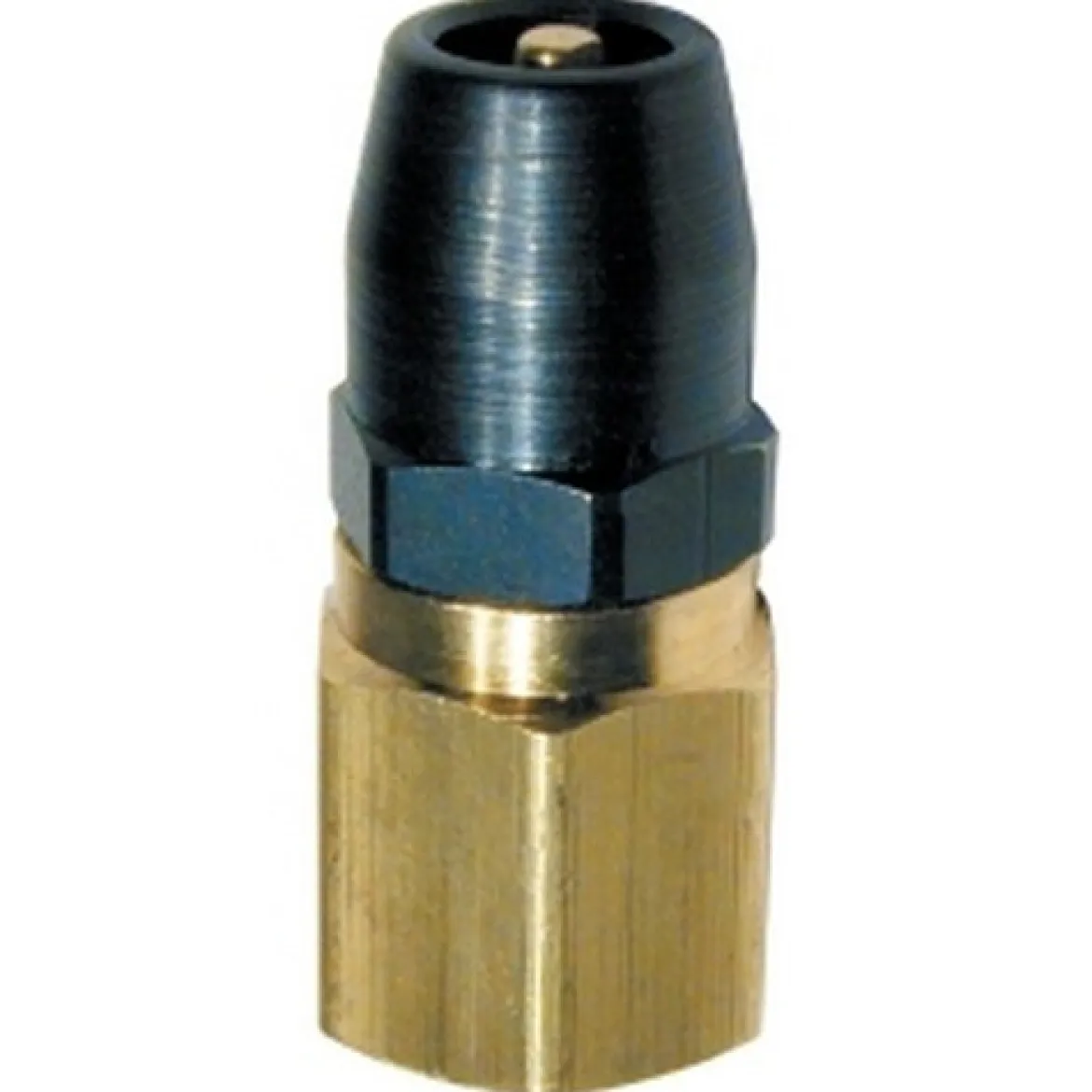

Amflo Straight-On Chuck (126)

The Amflo Straight-On Chuck (126) provides a practical and efficient solution for inflating tires, especially those with hard-to-reach valve stems. These air line chucks are specifically designed for use with live air lines coming directly from an air compressor, ensuring a straightforward and reliable inflation process. Each chuck features a built-in shut-off valve, which means they are not intended for use with inflator gauges but excel in direct air supply applications. Made from durable cast and machined brass, these straight-on chucks offer longevity and consistent performance. Their smaller diameter tip allows for easy access into narrow wheel openings and tight spaces, making them an essential tool for maintaining proper tire pressure on a wide range of vehicles, including cars, trucks, motorcycles, and scooters.

KEY FEATURES AND BENEFITS:

• Direct Air Line Compatibility: Specifically designed for use with live air lines directly from an air compressor, providing a consistent air supply.
• Built-in Shut-Off Valve: Each chuck includes an integrated shut-off valve, eliminating the need for an external valve on the air line and simplifying the inflation process.
• Enhanced Accessibility: Features a straight-on design and a smaller diameter tip, allowing easy access to hard-to-reach tire valves, custom wheels, and short valve stems.
• Durable Construction: Made from cast and machined brass, ensuring long-lasting performance and resistance to wear and tear.
• Optimal Pressure Handling: Capable of handling a maximum air line pressure of 150 PSI, suitable for various inflation tasks.

SPECIFICATIONS:

• Inlet Threads: 1/4-18 female NPT
• Maximum Air Line Pressure: 150 PSI
• Product Material: Cast and machined brass

HOW TO USE:

1. Prepare Air Supply: Ensure your air compressor is turned on and the air hose is ready for direct connection. These chucks are designed for live air lines with no other valve in the line.
2. Connect Chuck to Hose: Thread the 1/4-18 female NPT end of the Amflo 126 Straight-On Chuck onto your air compressor hose. Tighten securely to prevent air leaks.
3. Position on Valve Stem: Firmly press the straight-on tip of the chuck onto the tire’s valve stem. You will need to maintain pressure to ensure the internal pin engages the valve.
4. Inflate Tire: Once securely pressed onto the valve stem, air will flow into the tire. Monitor the tire’s pressure using a separate gauge if needed.
5. Remove Chuck: When the desired tire pressure is reached, pull the chuck straight off the valve stem.

BENEFITS OF USING AMFLO STRAIGHT-ON CHUCK (126):

• Improved Reach for Challenging Valves: Easily access and inflate tires with valve stems in awkward or recessed locations, such as those on custom wheels or with limited clearance.
• Streamlined Inflation Process: The built-in shut-off valve simplifies the process by directly controlling airflow from the compressor without requiring an additional valve on the line.
• Reliable Airflow: Provides a consistent and direct stream of air, ensuring efficient and effective tire inflation.
• Long-Term Value: Constructed from robust brass, these chucks are built to last, offering durability and reducing the need for frequent replacements.

FEATURES:

• Narrow Tip Design: Enables access into tight spaces and small diameter wheel holes.
• Non-Locking Engagement: Requires manual holding onto the valve stem, providing direct control during inflation.
• Versatile Application: Suitable for various vehicles including cars, light trucks, motorcycles, and scooters.
• Corrosion-Resistant Material: Brass construction helps resist rust and corrosion, extending product life.
• Standardized Connection: Features 1/4-18 female NPT threads for broad compatibility with air hoses.

Please Note: This is sold as a single item
