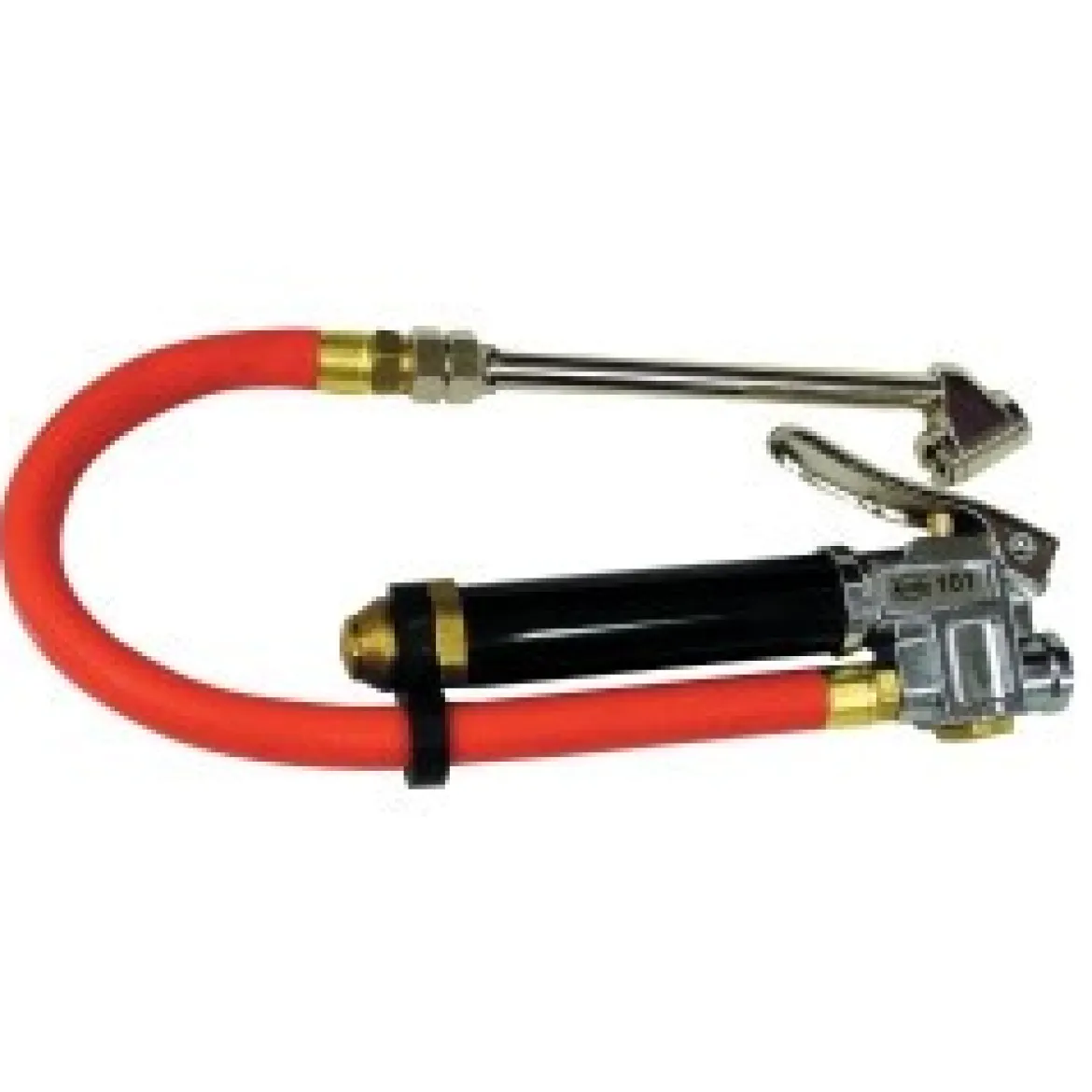

Amflo Swivel Dual Foot Chuck Inflator (101D)

The Amflo Swivel Dual Foot Chuck Inflator (101D) is an essential tool designed to simplify tire pressure management, especially for vehicles equipped with smaller dual wheels like motorhomes. This inflator combines robust construction with practical features, ensuring reliable performance and ease of use for maintaining optimal tire pressure. Its thoughtful design prioritizes user convenience and provides an accurate method for checking and adjusting tire inflation, which is crucial for vehicle safety, handling, and tire longevity.

KEY FEATURES AND BENEFITS:

• Optimized for Dual Wheels: Specifically designed with a swivel dual foot chuck, making it exceptionally easy to access and inflate tires on motorhomes and other vehicles with smaller dual wheel configurations. This design significantly reduces the hassle often associated with reaching inner valves.
• Precision Pressure Monitoring: Features a solid brass bar gauge, accurately calibrated from 10 to 120 PSI in precise 2 PSI increments. This allows for meticulous tire pressure adjustments, ensuring tires are inflated to manufacturer specifications for optimal performance and safety.
• Built for Longevity: Constructed with heavy chrome-plated castings and high-quality brass internal parts, the inflator is engineered to withstand regular use and resist wear, providing a long service life. A protective sleeve over the dial tube further guards against damage.
• User-Friendly Design: The 12-inch hose offers ample reach, while the plated steel handle, securely riveted to the body, provides a firm and comfortable grip during operation. The swivel chuck enhances maneuverability, preventing hose kinks and making inflation quick and efficient.

SPECIFICATIONS:

• Part Number: 101D
• UPC: 087817405914
• Gauge Calibration: 10 to 120 PSI (in 2 PSI increments)
• Hose Length: 12 inches
• Air Inlet Size: 1/4 inch
• Included in Product: One Amflo 101D Swivel Dual Foot Chuck Inflator, carded for retail.

HOW TO USE:

1. Prepare for Reading: Ensure your tires are cold. This means the vehicle has not been driven for several hours. This provides the most accurate pressure reading.
2. Connect to Air Source: Attach the 1/4-inch air inlet of the inflator to your air compressor hose. You may need a separate fitting if your compressor hose doesn’t directly match.
3. Access Tire Valve: Position the appropriate side of the dual foot chuck onto the tire valve stem. The swivel feature allows you to angle the chuck for easier access, especially on dual wheels.
4. Check Pressure: Press the chuck firmly onto the valve stem. The brass bar gauge will extend, indicating the current tire pressure.
5. Inflate if Needed: If the pressure is below the recommended level (consult your vehicle’s owner’s manual), press the handle to allow air to flow into the tire.
6. Monitor Gauge: Release the handle periodically to check the updated pressure reading on the gauge. Continue inflating until the desired pressure is reached.
7. Disconnect: Once the correct pressure is achieved, remove the chuck from the valve stem and disconnect the inflator from your air compressor.
8. Regular Check: Make it a habit to check your tire pressure at least once a week or as necessary.

BENEFITS OF USING AMFLO SWIVEL DUAL FOOT CHUCK INFLATOR (101D):

• Enhanced Safety: Properly inflated tires contribute significantly to vehicle safety by improving handling, braking, and stability on the road.
• Improved Fuel Efficiency: Maintaining recommended tire pressure reduces rolling resistance, which can lead to better fuel economy and lower operational costs.
• Extended Tire Life: Correct inflation helps prevent uneven tire wear, extending the lifespan of your tires and delaying the need for costly replacements.
• Convenience: The swivel dual foot chuck simplifies the task of reaching tire valves, making routine checks and adjustments much less cumbersome.
• Reliable Performance: Built with quality materials like chrome-plated castings and brass internal parts, offering dependable operation over time.

FEATURES:

• Swivel Chuck Functionality: Enables simple access to tire valves on dual-wheel setups.
• Durable Chrome-Plated Body: Heavy-duty exterior provides a resilient and corrosion-resistant finish.
• Brass Internals: Engineered for consistent reliability and extended service life.
• Gauge Protection: A protective sleeve shields the dial tube against impact damage.
• Reinforced Steel Handle: Riveted to the inflator body for secure and comfortable operation.
• Accurate Brass Bar Gauge: Delivers precise readings in 2 PSI increments from 10 to 120 PSI.
• Flexible 12-Inch Hose: Allows easier maneuvering to reach valves in tight spaces.
• Engineered for Accuracy: Helps ensure proper tire inflation for better performance and safety.
• General-Purpose Compatible: Also works effectively for regular tire maintenance beyond dual-wheel systems.
• Retail-Ready Packaging: Comes carded for convenient display and product protection.
