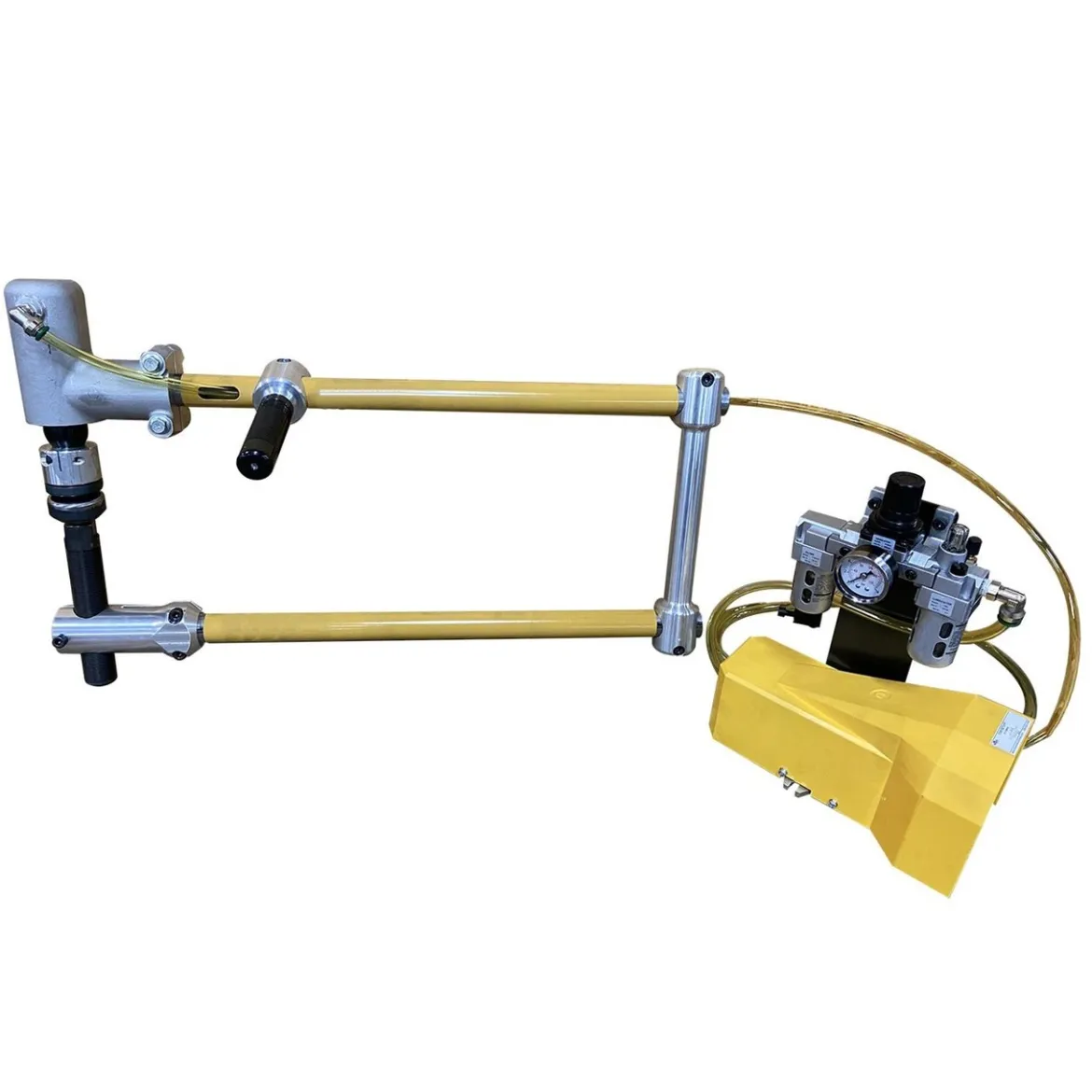

Baileigh AH-24R Handheld Pneumatic Planishing Hammer (1230574)

Baileigh AH-24R Handheld Pneumatic Planishing Hammer 24 Inch Throat Depth (1230574) is an air-powered model that delivers 3,200 beats per minute for a smooth finish. It arrives fully assembled with 7 dies, making it an essential tool for metalworking projects.

This Baileigh 1230574 planishing hammer has a 16 gauge mild steel capacity and an adjustable throat depth, standard at 24 inches. The air motor operates on 90-120 psi, and the completely rebuildable design allows you to adjust the hit characteristics for various applications.

• Specifications and Dimensions
  • Item Number: AH-24R
  • Mild Steel Capacity: 16 ga.
  • Tooling Height Adjustment: 11”
  • Speed (Variable): 3200 beats / minute
  • Included Tooling: Flat, 2”, 3”, 6”, 12”, 24” Radii
  • Throat Depth: 24” Adjustable
  • Aluminum Capacity: 14 ga.
  • Power: 80 – 120 Psi.
  • Shipping Weight: 275 lbs.
  • Shipping Dimensions (Inches): 60” x 44” x 68”
• Key Features and Benefits
  • High-speed operation with 3,200 beats per minute
  • Adjustable throat depth for versatile applications

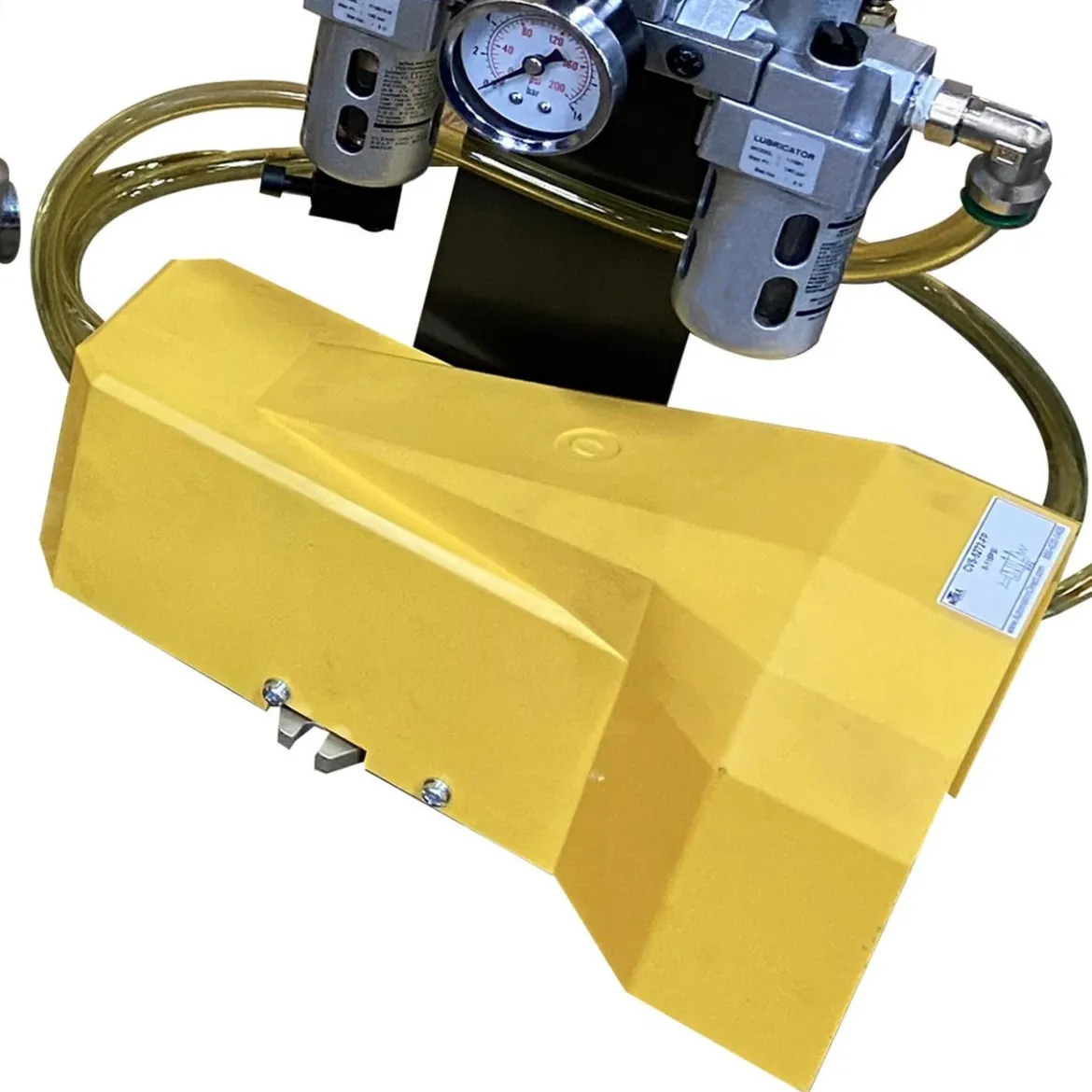

  • Foot pedal operation for hands-free control
  • Includes 7 radius dies for various metalworking needs

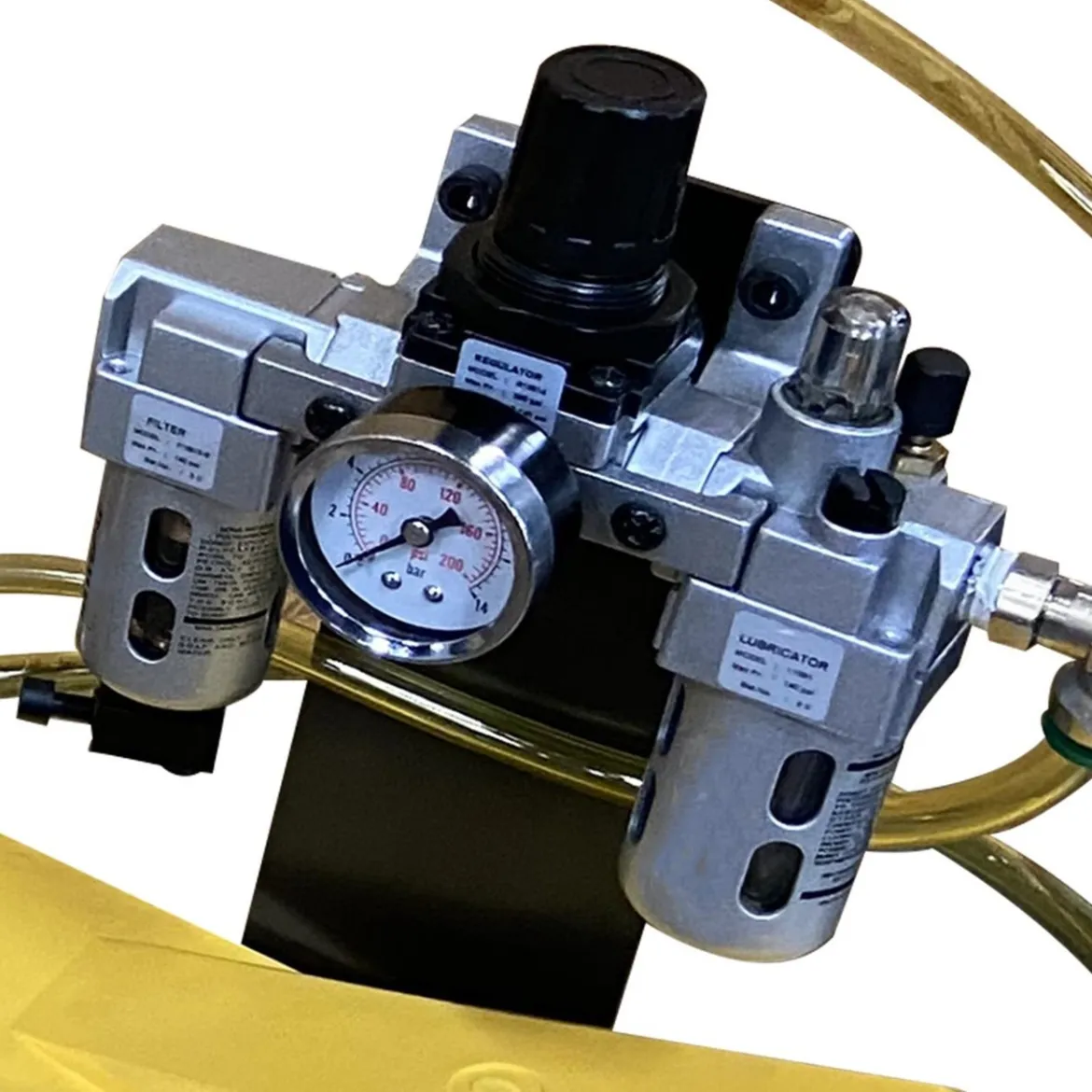

  • Automatic oiler for reduced maintenance
  • Rebuildable air motor for customizable performance
  • Optional stand available for conventional use
  • Covered by a 1-year parts warranty and lifetime technical support
