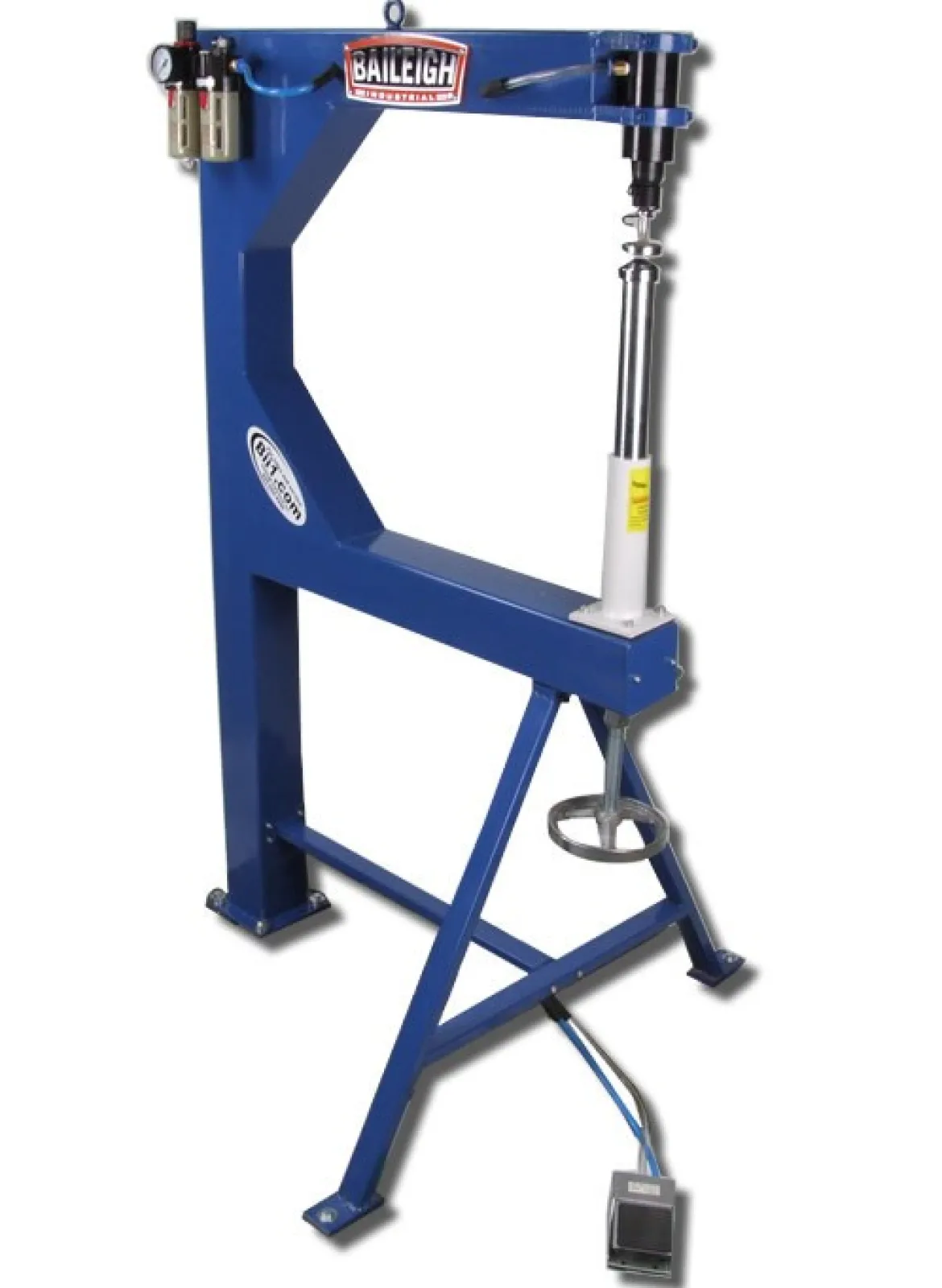

Baileigh Pneumatic Planishing Hammer 24″ Throat Depth 16 Gauge (1005948)

Baileigh Pneumatic Planishing Hammer 24″ Throat Depth 16 Gauge Mild Steel Capacity (1005948) is designed to deliver precise and efficient metal shaping. This high-performance planishing hammer is ideal for both professional and hobbyist metalworkers.

The 1005948 planishing hammer from Baileigh Industrial features a robust 4″x 4″ fully-welded frame, ensuring rigidity for the most precise work. The fully-welded frame keeps the machine stable so that force is transferred directly to the material. It operates at 90-120 psi and can land 4600 blows per minute, making it capable of handling a wide range of metal shaping tasks.

• Specifications and Dimensions
  • Bead Rolls: .75″, 1.5″
  • Mild Steel Capacity: 16 ga.
  • Tooling Height Adjustment: 1-1/2″
  • Throat Depth: 24″
  • Aluminum Capacity: 14 ga.
  • Power: 90 – 120 psi
  • Length: 60 in.
  • Width: 36 in.
  • Height: 11 in.
  • Net Weight: 185 lbs
• Key Features and Benefits
  • Operates at 90-120 psi for efficient performance
  • 4600 blows per minute for powerful metal shaping
  • 24-inch throat depth for handling large pieces
  • 16 gauge mild steel and 14 gauge aluminum capacity
  • 4” x 4” fully-welded frame keeps the machine stable so that force is transferred directly to the material
  • Stainless steel main shaft for long life

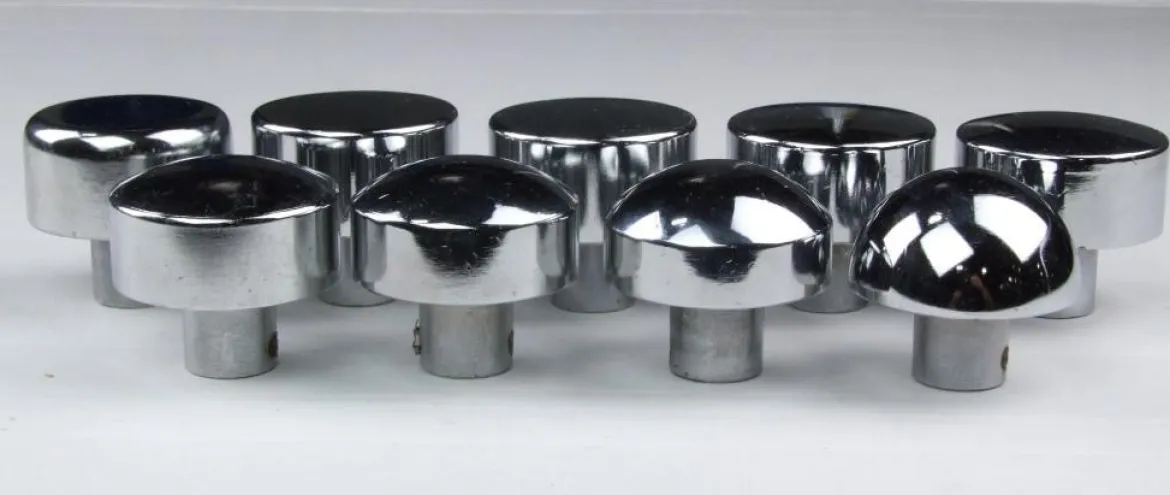

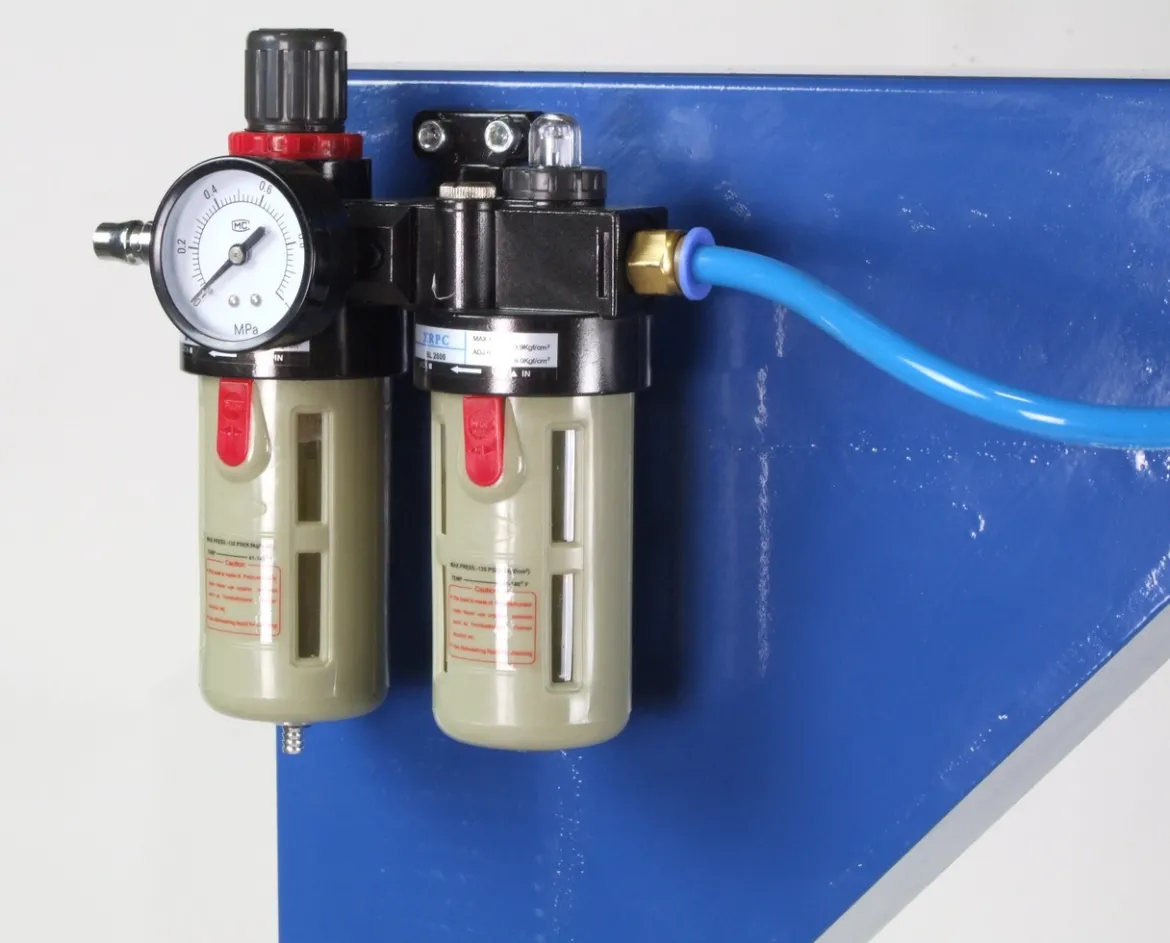

  • Includes foot pedal, air filter, oiler, and 9 radius dies (Flat, 3/4″, 1-1/2″, 2″, 3″, 4″, 6″, 8″, and 12″)
  • Fully welded frame ensures precision and durability
  • 1-year parts warranty and lifetime technical support by phone
