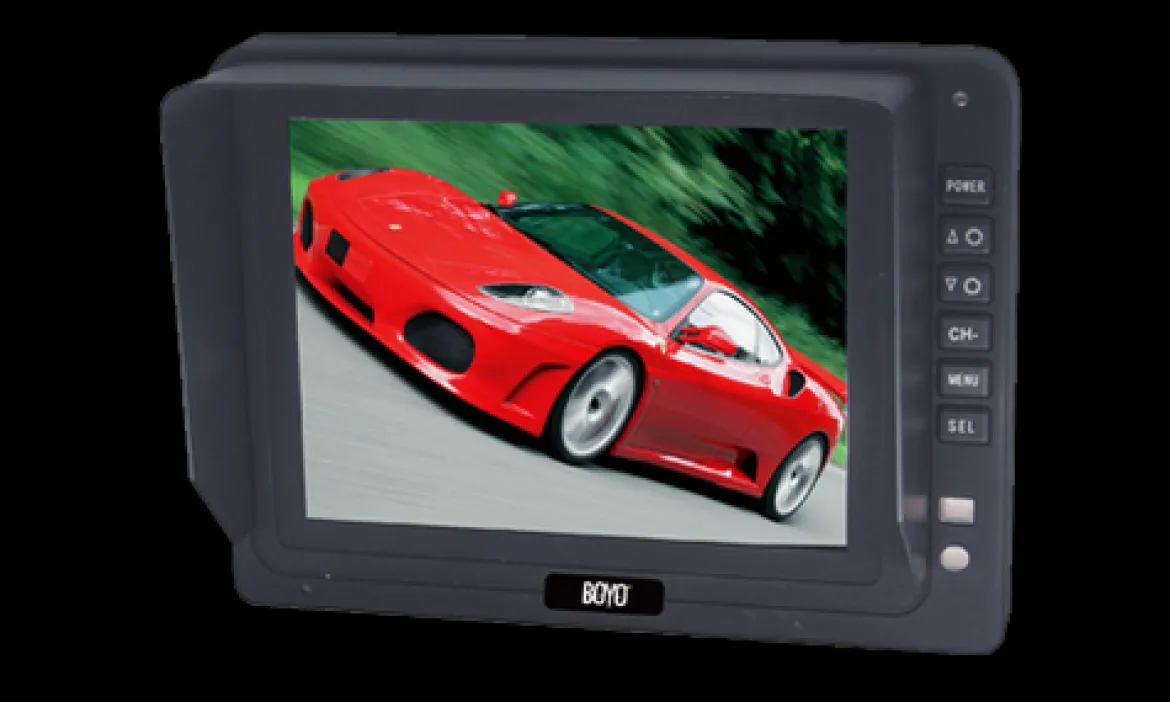

Boyo/Vision Tech 5″ TFT-LCD Backup Camera Monitor (BOYVTM5000)

The Boyo/Vision Tech 5″ TFT-LCD Backup Camera Monitor (BOYVTM5000) is a versatile and high-resolution display solution designed to improve vehicle safety during reversing and parking. With its ability to support up to three independent video inputs, automatic reverse activation, and flexible mounting options, this monitor provides drivers with enhanced visibility, convenience, and peace of mind.

KEY FEATURES AND BENEFITS:

• High-Resolution Clarity: The 5-inch TFT LCD screen provides a sharp, wide-angle, high-resolution display, ensuring that drivers have a clear and accurate view of the area behind the vehicle.
• Multi-Camera Support: Supports three independent video inputs, allowing for rear, side, or front cameras to be connected simultaneously.
• Automatic Reverse Activation: Trigger wires enable the monitor to instantly power on and display the primary camera feed when the vehicle is shifted into reverse.
• Flexible Image Orientation: Supports horizontal, vertical, and normal image adjustments for proper display alignment regardless of mounting position.
• Universal Video Compatibility: Automatically switches between PAL and NTSC formats for seamless compatibility with most automotive cameras.
• Enhanced Control: Comes with a full-function remote control for convenient access to menu options, including brightness, color, and contrast adjustments.

SPECIFICATIONS:

• Screen Type: 5” Digital TFT LCD
• Video System: Auto/PAL/NTSC
• Resolution: 640 x 480 (Native)
• Power Supply: 12VDC to 32VDC
• Display Format: 16:9
• Power Consumption: <7W
• Inputs: 3 Video Inputs
• Dimensions: 5.81″ L x 1.04″ W x 4.29″ H (Without Flush Mount)
• Included in Shipment: Monitor, Power Wire/Harness, Full Function Remote Control, Base Support Mount, Flush Mount Kit, Sun Shield

HOW TO USE:

1. Mounting: Choose a suitable location (dashboard or console) and use either the included base support or flush mount kit to secure the monitor.
2. Power Connection: Connect the red power wire and black ground wire to a switched 12V–32V power source.
3. Camera Connection: Connect the cameras to the monitor’s video inputs using RCA connectors.
4. Trigger Wire Setup: Connect the designated trigger wire to the reverse light circuit to enable automatic activation in reverse gear.
5. Manual Operation: Power on the monitor manually using the remote or side buttons to switch between video inputs.
6. Automatic Operation: Shift into reverse to automatically activate the monitor and display the backup camera feed.
7. Adjustments: Use the remote control to access the On-Screen Display (OSD) menu for brightness, contrast, color, and image orientation adjustments.

BENEFITS OF USING BOYO/VISION TECH 5″ TFT-LCD BACKUP CAMERA MONITOR (BOYVTM5000):

• Improved Reversing Safety: Reduces blind spots and enhances awareness of obstacles, pedestrians, or pets behind the vehicle.
• Versatile Vehicle Application: Supports both 12V and 32V DC systems, making it suitable for cars, trucks, vans, and RVs.
• Clean, Integrated Look: Flush-mount kit allows for factory-style installation for a seamless appearance.
• All-Weather Reliability: Automatic PAL/NTSC switching and durable design ensure consistent performance in varied conditions.
• Streamlined User Experience: Remote control and automatic button backlighting simplify operation, even in low-light conditions.

FEATURES:

• Supports a wide operating voltage range from 12 volts to 32 volts DC.
• Automatic backlighting for button visibility in low-light conditions.
• Built-in audio speaker for use with cameras featuring microphones.
• Three distinct video inputs for multiple camera configurations.
• Remote control operation for input selection and menu navigation.
• Includes a protective sun shield to reduce glare and improve daytime viewing.
• Adjustable picture settings for brightness, color, and contrast via the OSD menu.
• Comes with both a base support stand and flush-mount kit for flexible installation.
