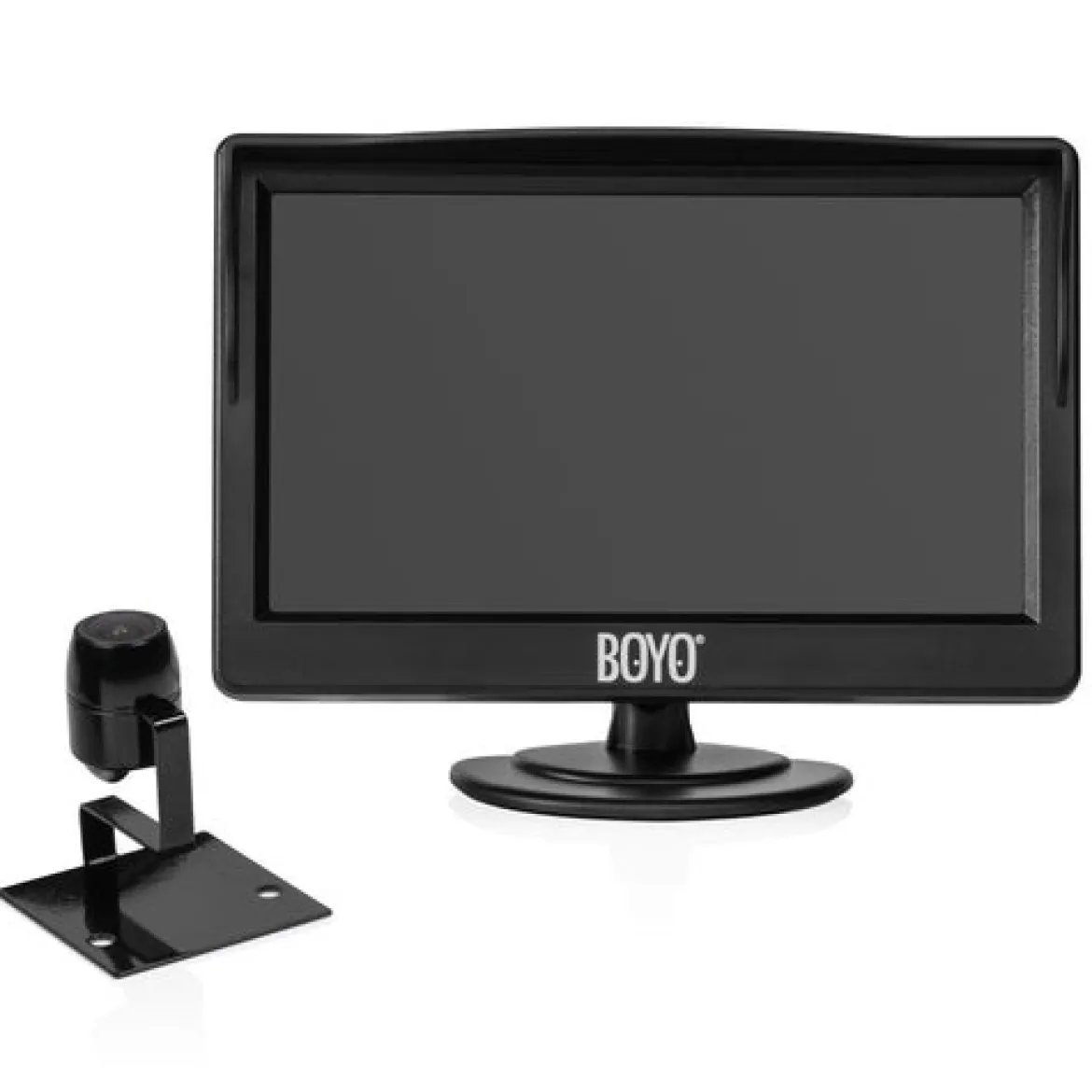

Boyo/Vision Tech Vehicle 5” Monitor & Backup Cam System (BOYVTC500DIY)

The Boyo/Vision Tech Vehicle 5” Monitor & Backup Cam System (BOYVTC500DIY) provides an essential safety solution, giving you a clear, wide-angle view of the area behind your vehicle to aid in parking and reversing. This all-in-one kit is specifically designed for quick and simple installation by vehicle owners without professional experience, making it a true Do-It-Yourself solution.

KEY FEATURES AND BENEFITS:

• Reliable Wired Connection: The system uses wired connections to the monitor and camera, guaranteeing a stable image without the lag or signal interference issues often found in wireless systems.
• Universal Vehicle Compatibility: Designed to operate efficiently with both 12-volt and 24-volt vehicle electrical systems, fitting standard cars, large trucks, SUVs, and vans.

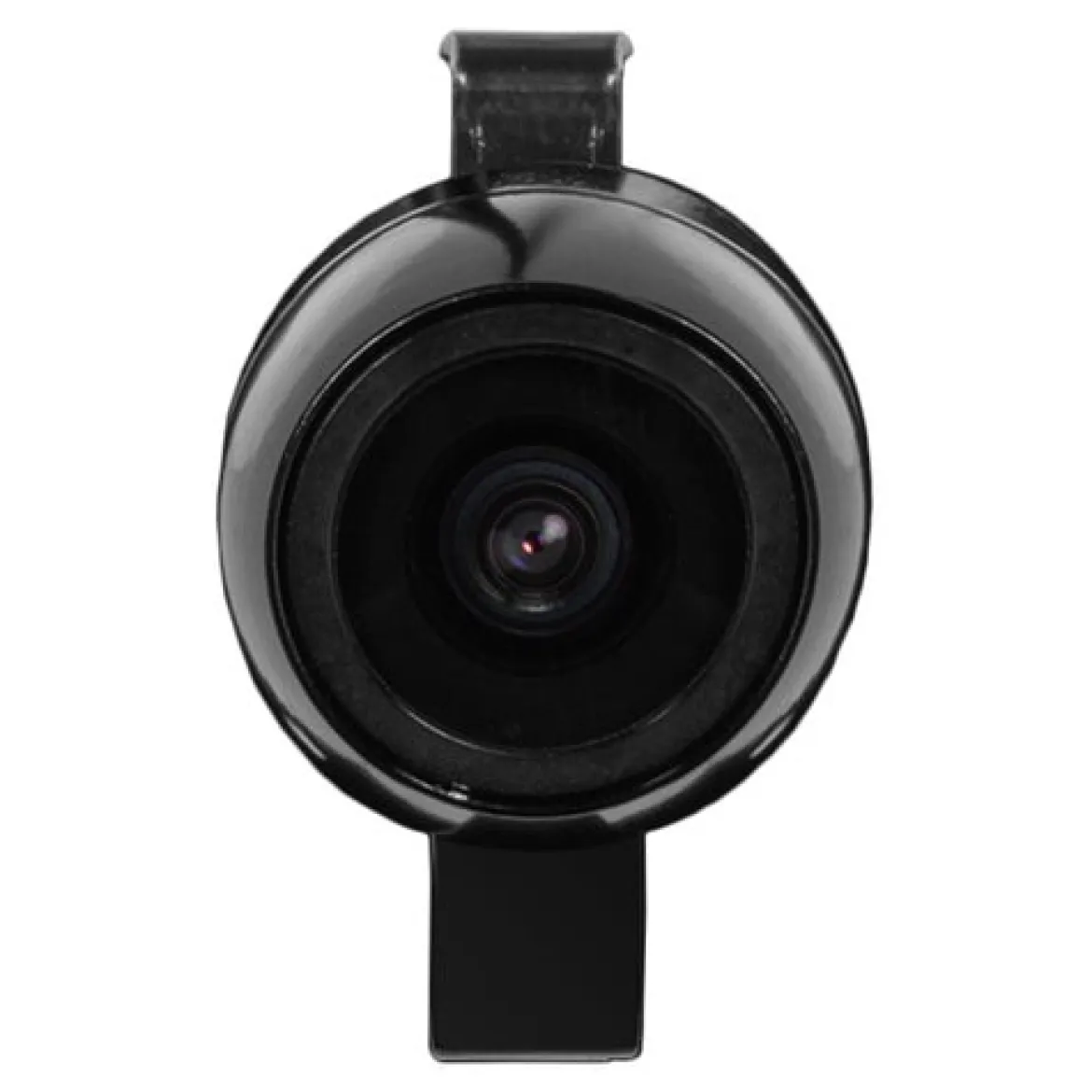

• Dual-Use Camera: The weatherproof IP68 camera offers a 170° wide viewing angle and features selectable imaging with parking assist lines on/off and switchable mirror/normal image modes.
• Two Video Input Monitor: The 5-inch TFT-LCD monitor includes a secondary video input (AV1 RCA) for easy addition of a second camera.

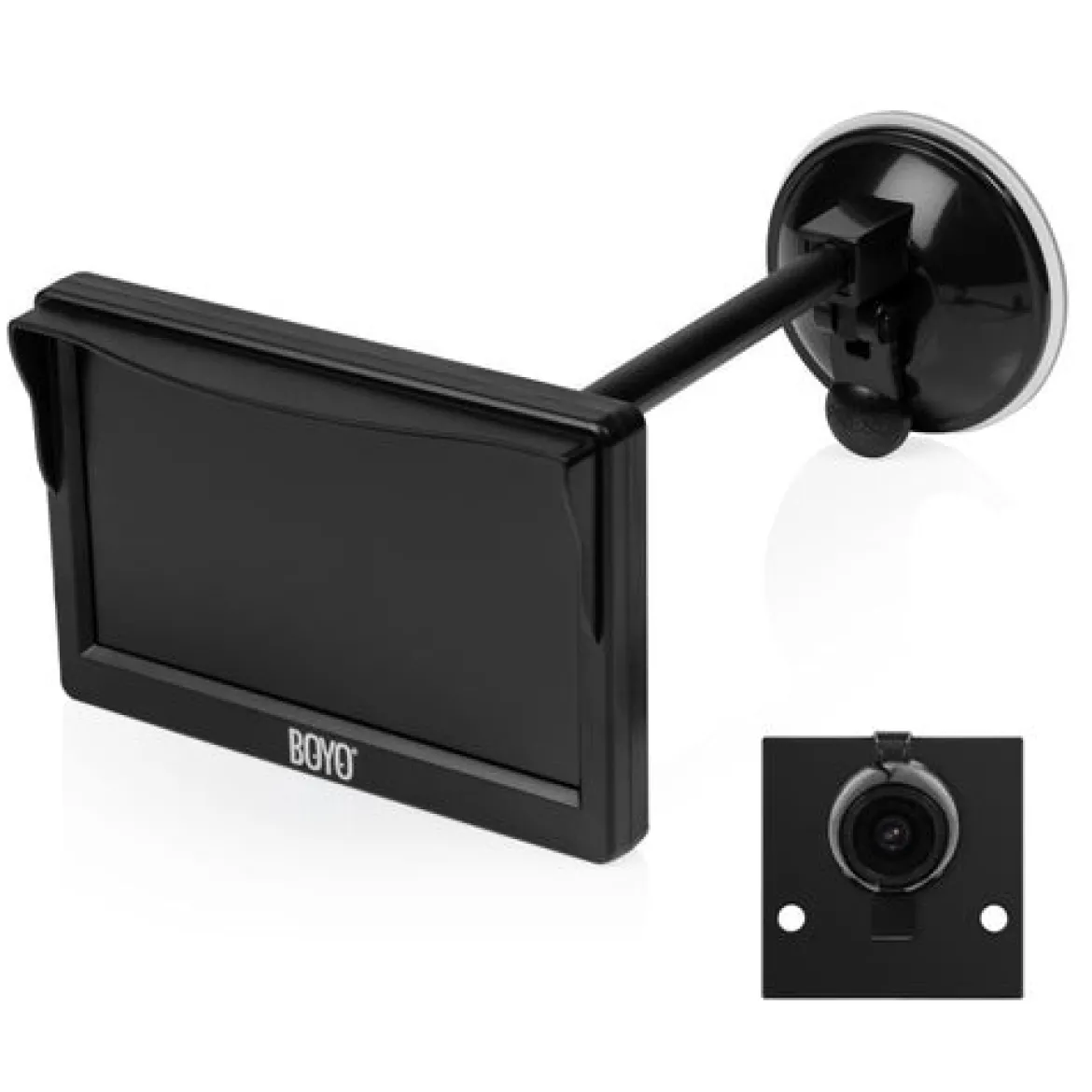

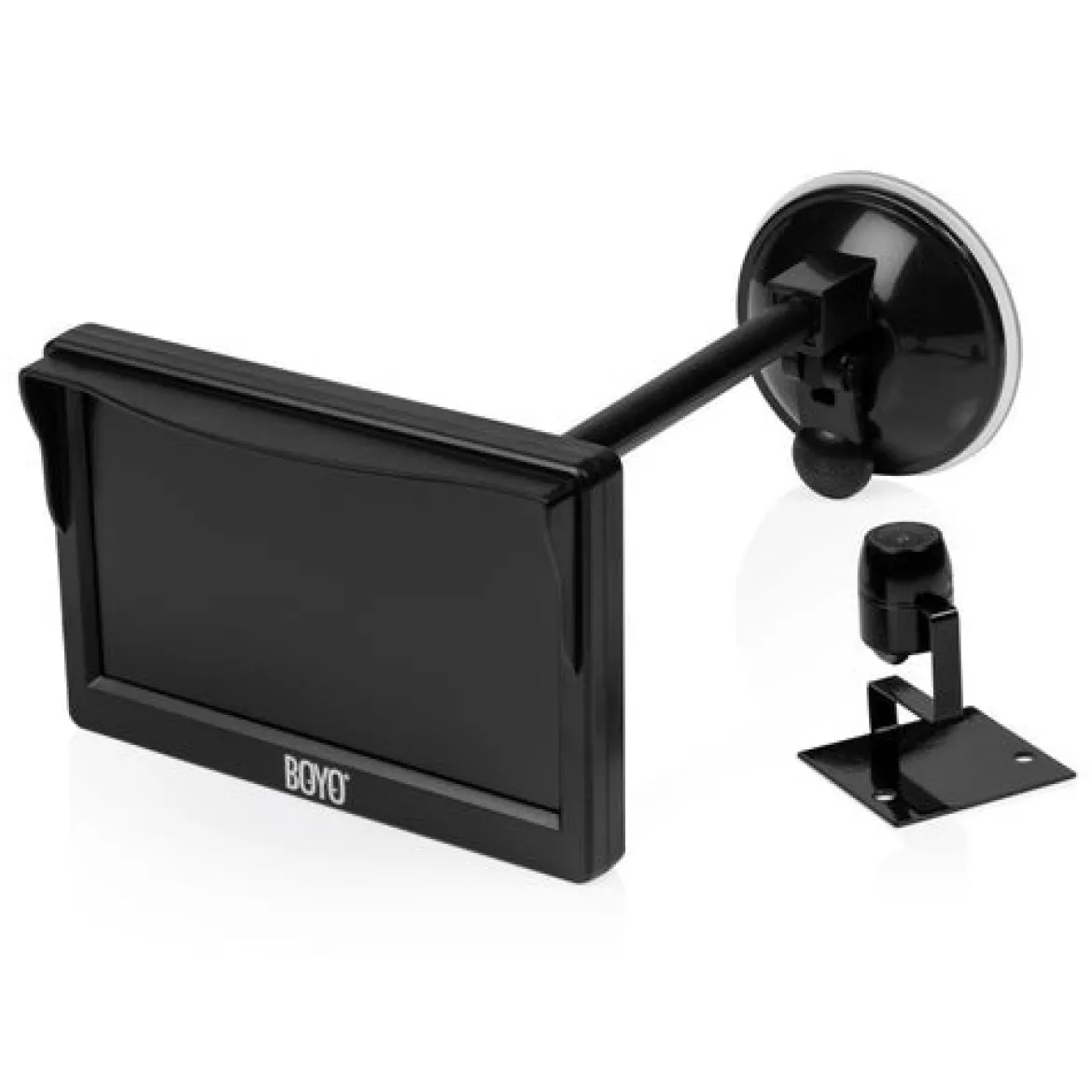

• Flexible Mounting Options: Includes both a suction cup mount for the windshield and an adhesive base mount for the dashboard.

SPECIFICATIONS:

• System Type: Wired Backup Camera System (DIY Focused)
• Vehicle Voltage: 12V and 24V compatible

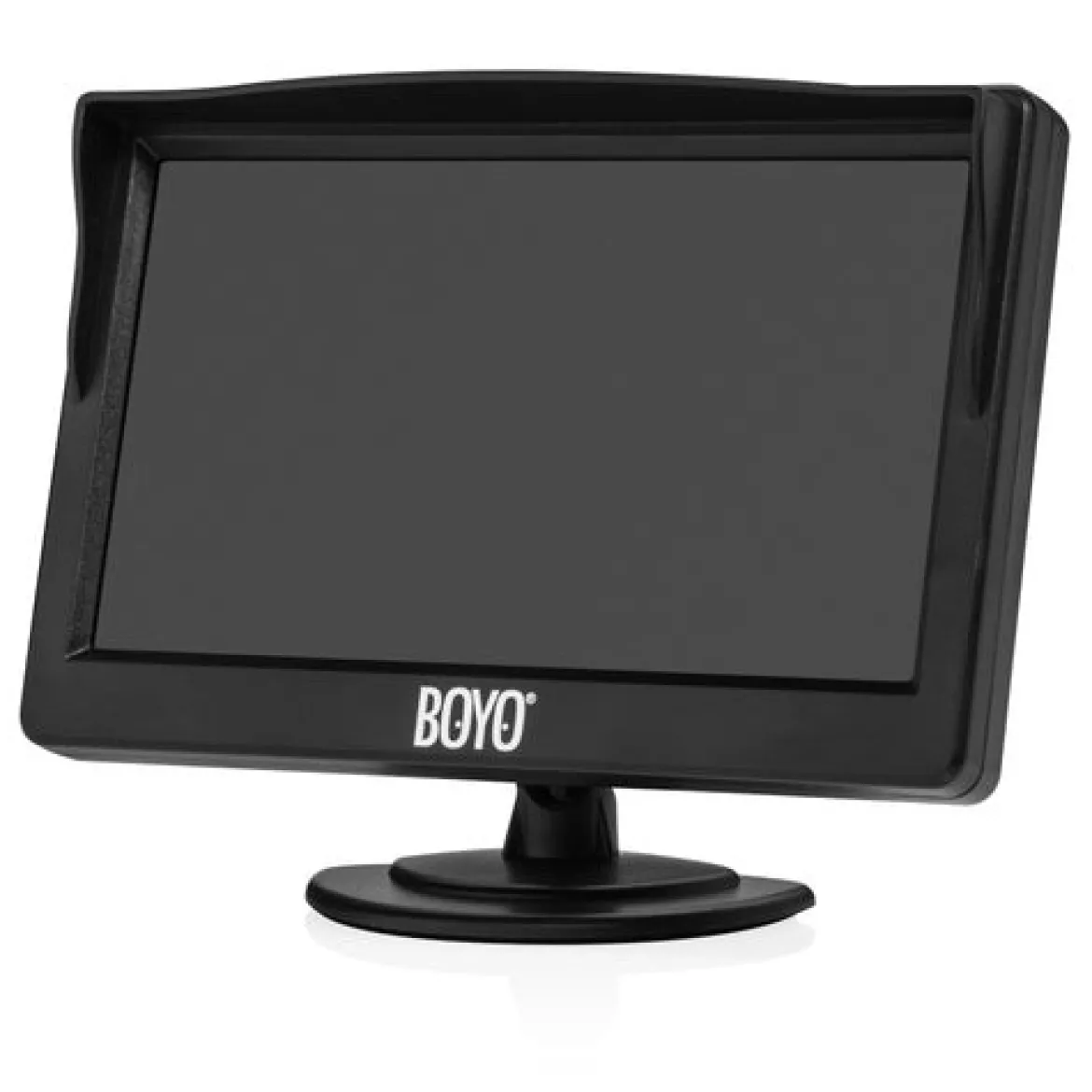

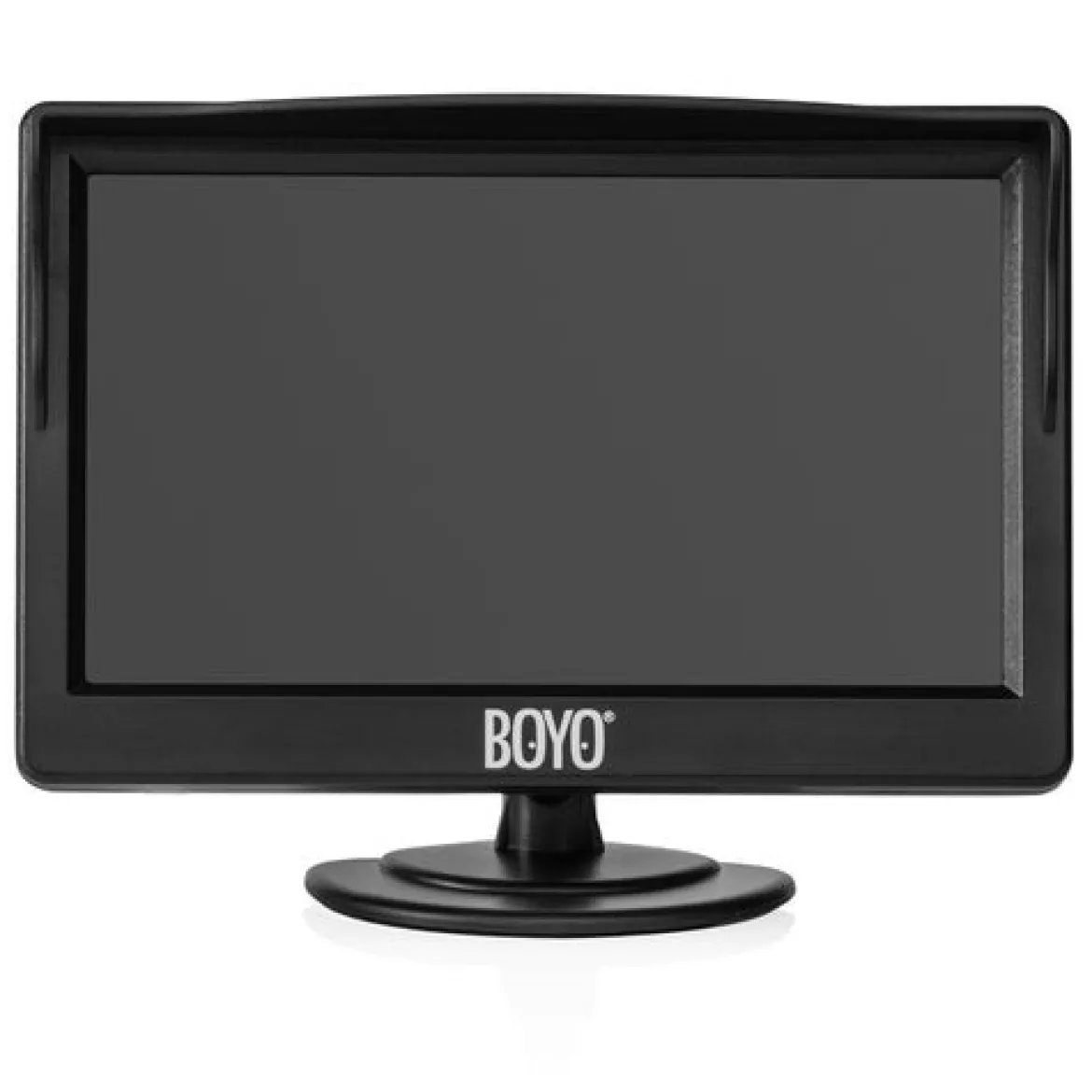

• Monitor Size: 5″ TFT-LCD Widescreen
• Monitor Resolution: 480×272
• Monitor Video Inputs: 2 Video Inputs (AV1 RCA, AV2 Camera)
• Camera Sensor: CMOS Image Sensor
• Camera Resolution: 960×592 (Sensor Resolution)
• Camera TV Lines: 420 TV Lines
• Camera Viewing Angle: 170° Diagonal / 110° Horizontal
• Waterproof Rating: IP68
• Operating Temperature: −20°C to +70°C

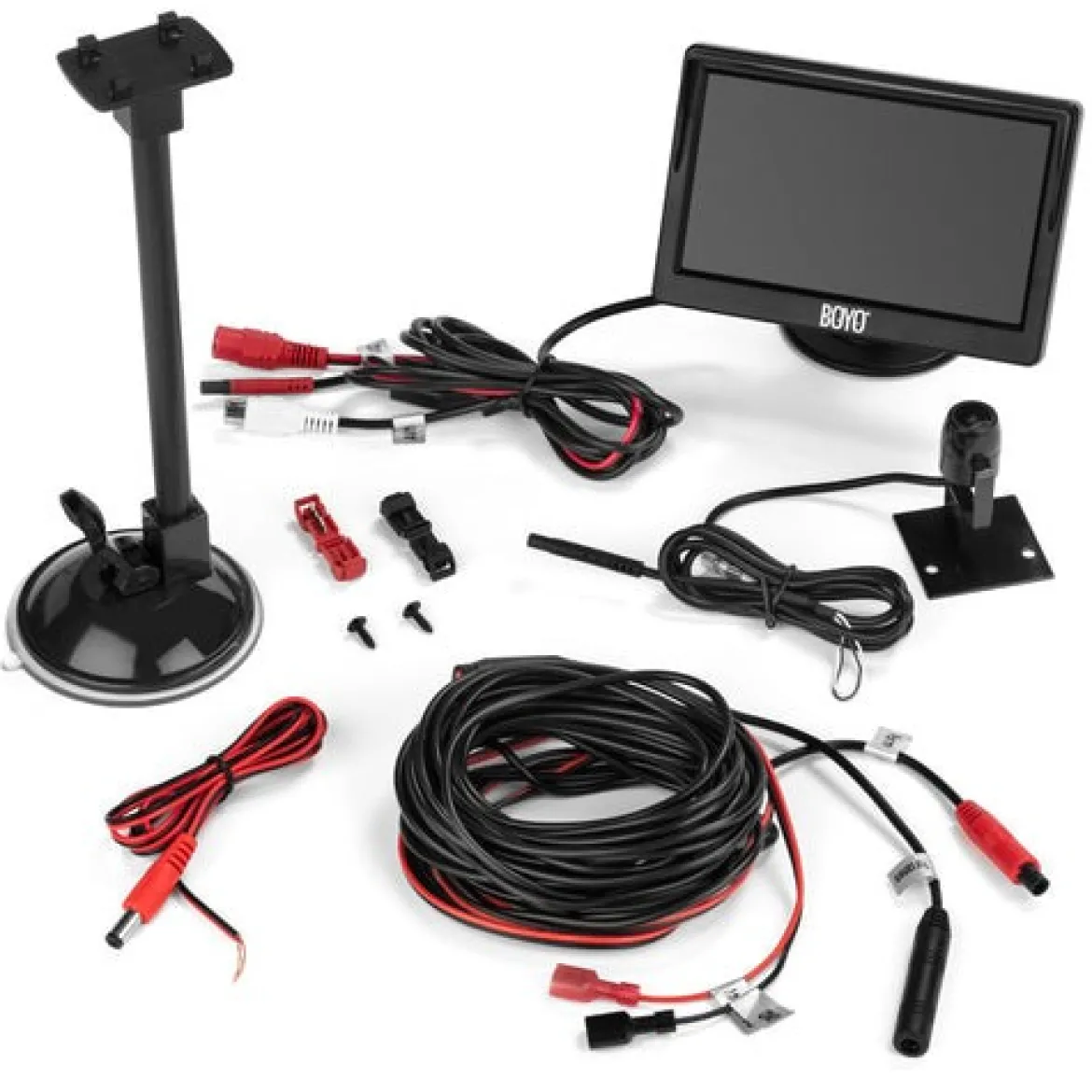

• Included in Package: (1) 5″ Monitor with attached 55″ cable, (1) Camera with 38″ cable and bracket, (1) 38″ Monitor Power/Ground cable, (1) 26.5 ft Extension Cable with 3 ft power/ground wires, (1) Windshield Mount, (1) Dash Mount, (2) Wire Taps, (2) 10mm Screws

HOW TO USE:

1. Start Your Vehicle: Turn the ignition key to the ON or ACC position, or start the vehicle. The monitor will remain off in this state.
2. Engage Reverse: Shift the transmission into Reverse (R).
3. Automatic Activation: The reverse trigger wire senses power from the reverse light circuit, powering on the monitor and displaying the camera feed.
4. Check Parking Assist Lines: Use the on-screen guidelines (if enabled) to gauge distance and alignment while reversing.
5. Disengage Reverse: Shift out of Reverse to deactivate the backup view.
6. Automatic Deactivation: The monitor turns off or returns to standby mode once Reverse is disengaged.
7. Use Secondary Input (Optional): If another video source is connected to AV1, use the monitor’s button to switch manually when not in reverse.

BENEFITS OF USING BOYO/VISION TECH VEHICLE 5” MONITOR & BACKUP CAM SYSTEM (BOYVTC500DIY):

• Improved Safety and Visibility: Eliminates blind spots directly behind the vehicle, reducing risks of collisions with people or objects.
• Effortless Parking: Parking assist lines help drivers park more quickly and accurately.
• Cost-Effective Solution: A complete DIY kit that avoids professional installation costs.
• Weather Durability: IP68-rated camera ensures reliable performance in rain, dust, and car washes.
• Long-Term Reliability: Wired connection ensures consistent video quality without wireless interference.

FEATURES:

• Easy Wiring Connectors: Includes user-friendly connectors for a straightforward installation process.
• Multiple Mounting Options: Comes with both suction cup and adhesive mounts for flexible monitor placement.
• Discreet Camera Mount: Camera bracket designed to fit neatly behind the license plate.
• Customizable Display: Adjustable brightness, contrast, saturation, and tint settings.
• Selectable Image Mode: Allows setup for normal or mirror image based on installation preference.
• Wide Voltage Range: Compatible with 12V and 24V vehicle systems.
• Extended Cable Length: 26.5 ft extension cable ensures easy installation even on larger vehicles.
• Low-Light Ready: CMOS sensor provides visibility in dim environments.
