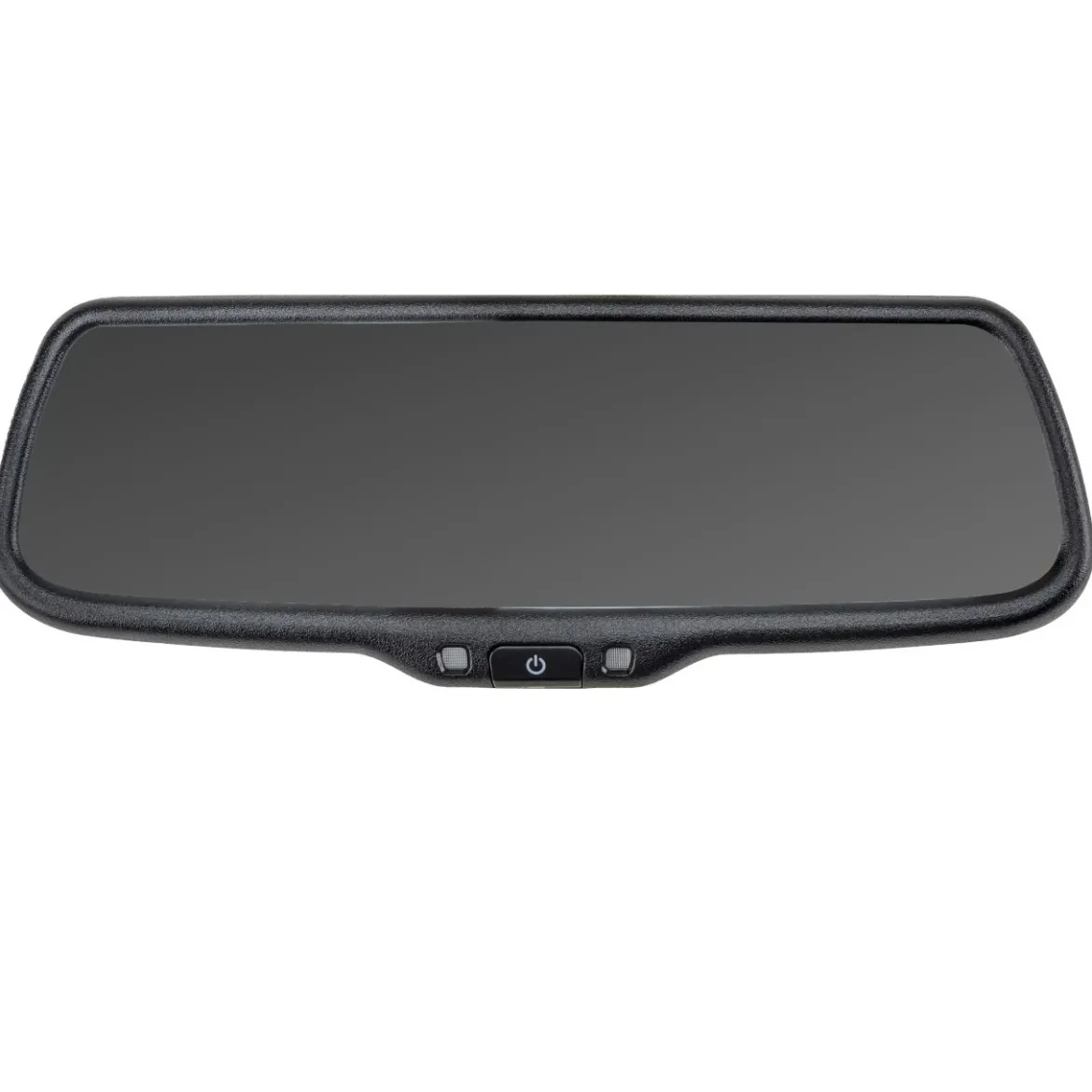

Brandmotion 7.3″ LCD Display Mirror (BRMFLTW-7692V3)

The Brandmotion 7.3″ LCD Display Mirror (BRMFLTW-7692V3) is a professional-grade rearview mirror upgrade that integrates a large 7.3-inch full-color TFT LCD display directly into the mirror surface. Designed with an OEM-style finish and a standard D-Tab wedge mount, it provides a seamless, factory-like appearance while offering expanded visibility with support for up to three separate cameras. With its ultra-bright 2200cd/m² screen, split-screen functionality, and automatic activation when reversing, this system enhances safety and convenience for both consumer and commercial vehicles.

KEY FEATURES AND BENEFITS:

• Expanded Visibility: Large 7.3-inch display integrated into the mirror reduces blind spots and provides a clear, wide view.
• Three-Camera Support: Features three RCA inputs with dedicated trigger wires for backup, front, side, or cargo cameras.
• Versatile Display Modes: Can display a single full-screen image or two camera feeds in a split-screen format.
• Automatic Activation: Primary input activates automatically when the vehicle is shifted into reverse.
• Superior Brightness: 2200cd/m² screen ensures clarity even in direct sunlight.
• Seamless Integration: OEM-style finish with standard D-Tab wedge mount for a factory look.

SPECIFICATIONS:

• Model Number: FLTW-7692V3 (BRMFLTW-7692V3)
• Mirror Housing Size: 9 inch
• Screen Size: 7.2–7.3 inch
• Display Type: Full Color TFT LCD
• Resolution: 1280×422
• Display Brightness: 2200cd/m²
• Video Inputs: 3 RCA composite
• Video Format: CVBS (NTSC/PAL compatible)
• Working Voltage: 12V/24V DC
• Operating Temperature: −20°C to 70°C
• Storage Temperature: −30°C to 80°C
• Mount Compatibility: Standard D-Tab wedge mount
• Included in Purchase: Rearview mirror with LCD display, power/video harness, remote control, cable channel, cable clamp, harness cover, wire ties, hex/Torx key, installation instructions (QR code)

HOW TO USE:

1. Connect Cameras: Wire backup and auxiliary cameras to the RCA inputs on the mirror harness.
2. Power Connections: Connect the red wire to 12V accessory power, black wire to ground, and green wire to the reverse light circuit.
3. Trigger Wires: Wire auxiliary triggers to power sources or manual switches for side/front camera activation.
4. Automatic View: Place the vehicle in reverse to automatically display the rear camera feed.
5. Manual View: Use the side buttons or remote control to switch between cameras.
6. Adjust Settings: Configure brightness, parking guidelines, and other options via the remote.
7. Turn Off: Press the power button to return the unit to a standard reflective mirror mode.

BENEFITS OF USING BRANDMOTION 7.3″ LCD DISPLAY MIRROR (BRMFLTW-7692V3):

• Enhanced Towing Safety: Supports auxiliary trailer or cargo cameras for easier hitching and maneuvering.
• Reduced Blind Spots: Multiple camera inputs provide full side and rear coverage for safer driving.
• Discreet Monitoring: Integrated design avoids bulky dash-mounted monitors.
• Optimal Viewing Quality: High-brightness screen ensures visibility in all lighting conditions.
• Flexible Installation: Universal mount and dual-voltage compatibility fit a wide variety of vehicles.

FEATURES:

• Integrated Display: TFT LCD panel embedded beneath the mirror glass.
• Display Modes: Single-view or split-screen functionality.
• Connection Standard: Three RCA composite video ports.
• System Activation: Trigger wires for automatic or manual switching.
• Driver Aids: Adjustable parking guidelines.
• Control Interface: Combination of physical buttons and touchscreen controls.
• Ambient Sensor: Automatic brightness adjustment for day/night use.
• Power Compatibility: Works with 12V and 24V vehicle systems.
• Design & Fit: OEM-grade finish for D-Tab wedge mounts.
• Accessory Control: Includes remote control for menu navigation and adjustments.
