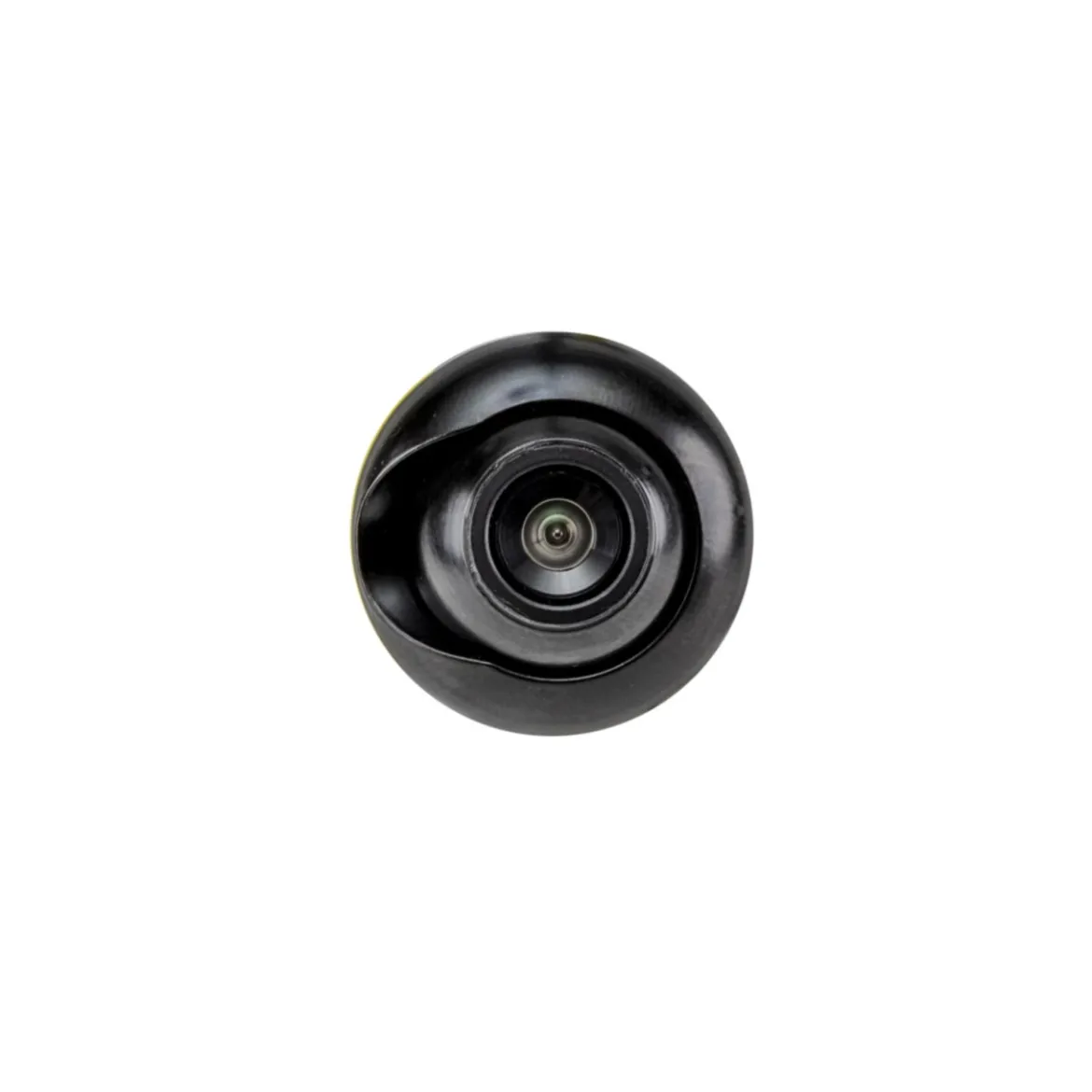

Brandmotion Universal Snap-In Adjustable Bullet Camera (BRM9002-7612)

The Brandmotion Universal Snap-In Adjustable Bullet Camera (BRM9002-7612) is engineered to provide a discreet and reliable visual aid for safe maneuvering and parking. Its bullet-style design and snap-in mounting method make it a practical solution for vehicles where traditional mounting styles are not suitable. Designed for installation directly onto a flat surface such as a bumper or body panel, this camera delivers versatility and optical quality through its high-grade CMOS sensor, wide 150° horizontal field of view, and fully adjustable head for optimal placement.

KEY FEATURES AND BENEFITS:

• Discreet bullet-style design with snap-in mounting for easy installation.
• Equipped with a high-quality CMOS sensor for clear, color images.
• Wide field of view: 150° horizontal and 100° vertical coverage.
• Automatic white balance and electric auto iris for consistent image quality in various lighting.
• Adjustable camera head to secure the optimal viewing angle.
• Switchable parking gridlines and image mirroring for flexible rear or front use.
• Durable IP68 waterproof rating for all-weather performance.

SPECIFICATIONS:

• Model Number: 9002-7612
• Camera Sensor: High Quality CMOS
• Resolution: 648×488 pixels (420p)
• Field of View (Horizontal): 150°
• Field of View (Vertical): 100°
• Low Light Sensitivity: 0.5 Lux
• Video Format: NTSC
• Operating Voltage: 9V–16V
• Weather/Waterproof Rating: IP68
• Harness Length: 22 ft chassis harness (RCA connection)
• Included Accessories: Snap-In Adjustable Bullet Camera, 22 ft Chassis Harness, Power Harness, Hole Saw, Camera Adjustment Tool

HOW TO USE:

1. Determine Placement: Select a flat surface (e.g., bumper or body panel) with at least 1.5″ × 1.5″ of space for mounting.
2. Prepare Mounting Hole: Use the included hole saw to drill the required hole at the chosen location.
3. Configure Camera Options: Adjust parking gridlines or mirroring by cutting the designated wire loops on the harness.
4. Install the Camera: Insert the camera into the prepared hole until the snap-in mount locks securely.
5. Adjust Viewing Angle: Use the provided adjustment tool to set the camera head for the best viewing angle.
6. Route Wiring: Run the 22 ft chassis harness to the display unit and connect the RCA output to the monitor input.
7. Apply Power: Connect the power harness to a switched power source (reverse light or ignition).
8. Test Operation: Activate the display to confirm the camera angle, image quality, and settings.

BENEFITS OF USING BRANDMOTION UNIVERSAL SNAP-IN ADJUSTABLE BULLET CAMERA (BRM9002-7612):

• Improved Safety: Wide viewing angle minimizes blind spots during parking and reversing.
• Parking Assistance: Optional gridlines provide visual distance and alignment guidance.
• Discreet Design: Compact snap-in camera blends with the vehicle’s exterior.
• Flexible Viewing: Adjustable lens ensures the best possible angle for each installation.
• Weather Resistant: IP68 waterproof rating for reliable all-weather use.
• Versatile Application: Can function as a rear or forward-facing camera.

FEATURES:

• Clear Imaging: High-quality CMOS sensor with stable color reproduction.
• Adaptive Performance: Automatic white balance and electric auto iris for lighting adjustments.
• Low-Light Capability: Operates effectively at 0.5 Lux for night or dim areas.
• Compact Build: Bullet-style design for seamless integration with minimal exposure.
• Secure Mounting: Simple snap-in system for hassle-free installation.
• Voltage Compatibility: Operates within 9V–16V vehicle electrical systems.
• Broad Compatibility: RCA composite video output supports most aftermarket displays.
