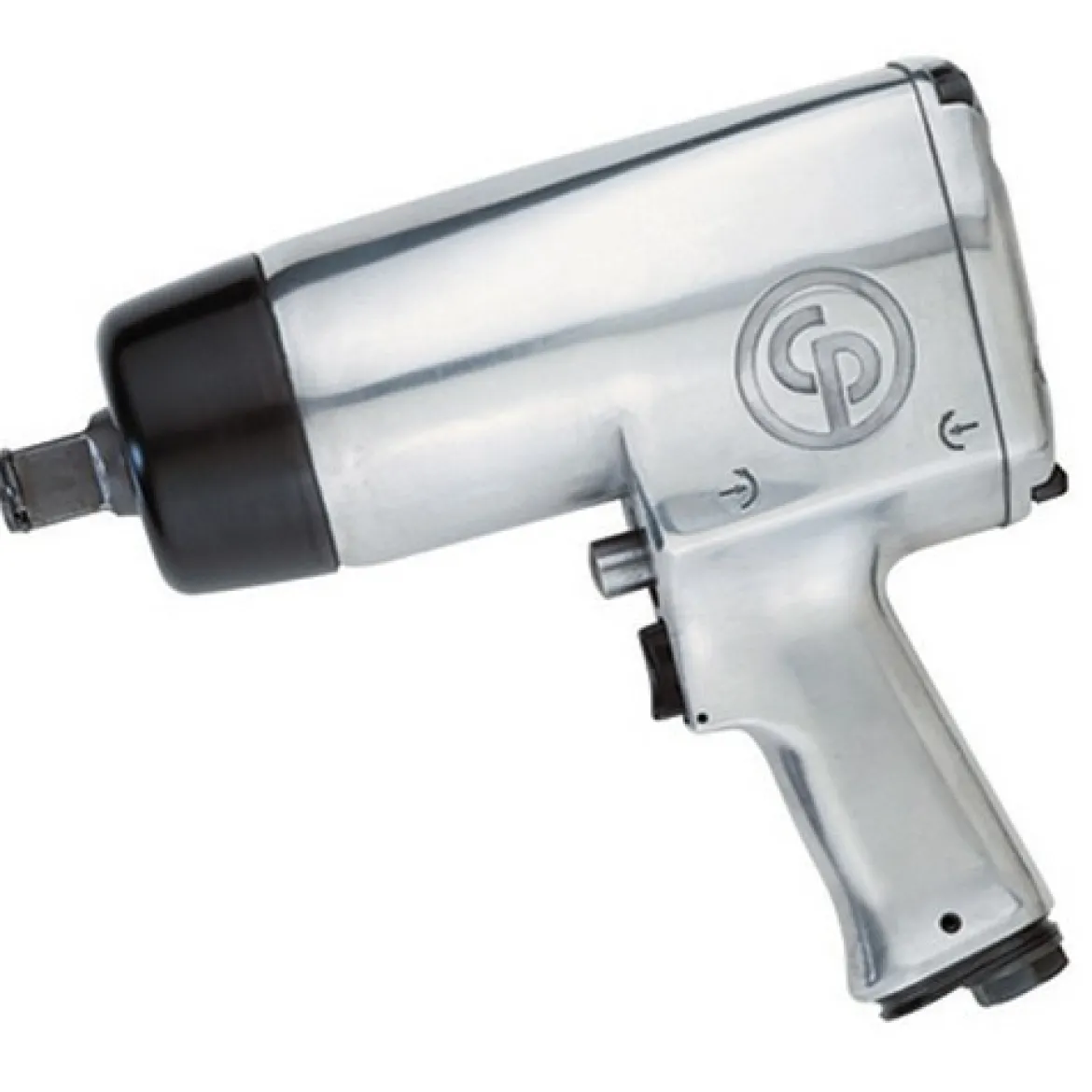

Chicago Pneumatic 3/4 Inch Heavy Duty Air Impact Wrench (CP772H)

Chicago Pneumatic 3/4 Inch Heavy Duty Air Impact Wrench with 4 Power Settings (CP772H) is designed for smooth operation and high durability. This impact wrench is ideal for spring work, truck and bus maintenance, farm machinery, and construction equipment, featuring a one-hand push button forward/reverse regulator and a comfortable contoured handle grip.

The CP772H 3/4 air wrench delivers a maximum torque of 1,000 ft.lbs and operates at a free speed of 4,200 RPM. It features a 3/4 inch drive, a Dynapact oil bath clutch, and a metal motor housing for enhanced durability.

• Specifications and Dimensions
  • Drive Size: 3/4 Inch
  • Working Torque Range (fwd): 150-700 ft.lbs
  • Maximum Torque (reverse): 1,000 ft.lbs
  • Free Speed: 4,200 RPM
  • Blows Per Minute: 900 BPM
  • Net Weight: 10.4 lbs
  • Length: 9.65 Inches
  • Average Air Consumption: 6 cfm
  • Actual Air Consumption: 24 cfm
  • Air Inlet Thread Size: 0.375 Inch
  • Minimum Hose Size: 1/2 Inch
  • Noise Level: 96 dB(A)
  • Body: Aluminum
• Key Features and Benefits
  • Powerful 1,000 ft.lbs of maximum torque for high productivity
  • Dynapact oil bath clutch for smooth operation
  • One-handed push button forward/reverse with 4 power settings
  • Comfortable contoured handle grip for easy handling
  • 360-degree air inlet swivel to prevent hose kinks
  • Low noise and vibration levels for comfortable use
  • Ideal for general repairs and maintenance tasks
