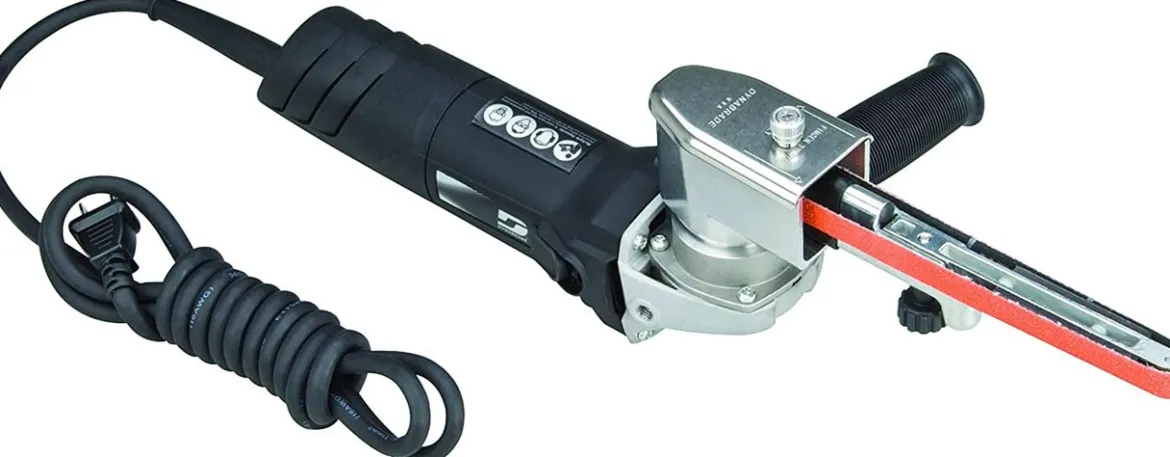

Dynabrade Electric Dynafile II Belt Tool (40610)

Dynabrade 40610 Electric Dynafile II Abrasive Belt Tool is a high-performance, electric-powered abrasive tool designed for versatile applications. With a 0.5 HP motor and 11,000 RPM, this tool runs both coated abrasive and non-woven nylon belts. Ideal for use on materials such as metal, plastic, and more, it accommodates belts ranging from 1/8″ to 3/4″ wide x 18″ to 24″ long. The ergonomic design includes a reversible side handle and a sanding head that pivots 360 degrees, offering enhanced flexibility. The tool features easy-to-access brushes, a “lock on” switch, and double insulation for safety. The included 8-foot cord allows for ample mobility during operation.

Features:

• Reversible side handle for improved comfort and control during use.
• 360-degree pivoting sanding head for maximum flexibility in tight or awkward spaces.
• Accepts over 20 contact arms for various abrasive belts ranging from 1/8″ to 3/4″ wide x 18″ to 24″ long.
• Easy-to-access brushes for quick maintenance and longer tool life.
• “Lock on” switch for extended use without hand strain.
• Double insulation for increased safety and reliability.
• Electric cord length up to 8 feet for extended reach.

Benefits:

• Versatile tool capable of handling various materials like metal, plastic, and more.
• Operator-friendly with ergonomic design, reducing hand fatigue.
• Highly adaptable to different tasks with the use of contact wheels, platen pads, and slack of belt for finishing and polishing.
• Increased safety features including double insulation and easy brush access.
• Efficient performance with a 0.5 HP motor, ideal for both light and heavy-duty applications.

Technical Specifications:

• Model: 40610
• Motor Power: 0.5 HP (373W)
• Motor Speed: 11,000 RPM
• Maximum Watts Out: 680 W
• Voltage: 120 V (AC)
• Current: 6 Amps
• Phase: 1
• Frequency: 50/60 Hz
• Belt Size: 1/4″ – 3/4″ (6 – 19 mm) W x 18 – 24″ (457 – 610 mm) L
• Weight: 5 lbs (2.3 kg)
• Dimensions: 19″ (483 mm) L x 5-1/2″ (140 mm) H
