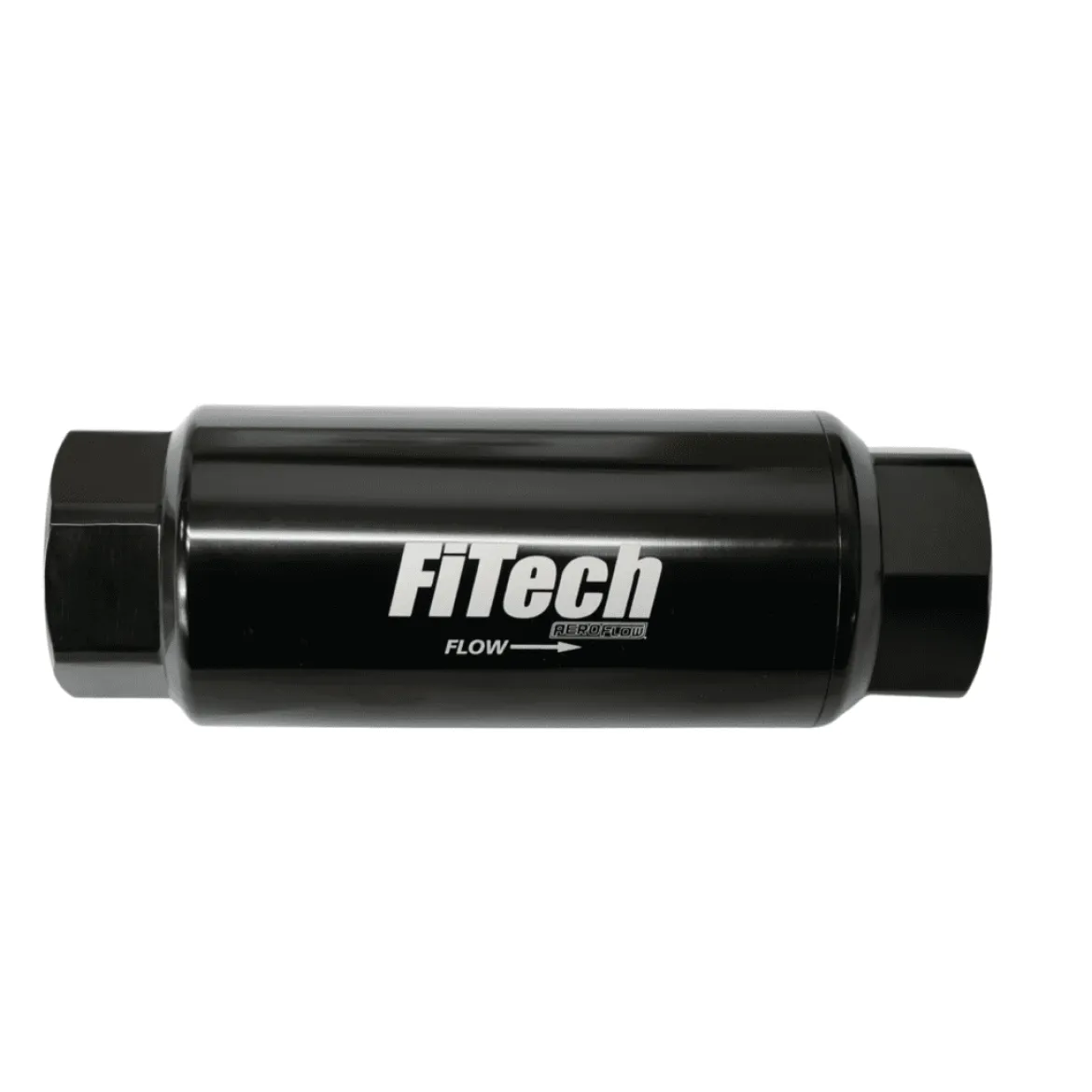

FiTech 10-Micron Fuel Filter (55002)

The FiTech 10-Micron Fuel Filter (55002) is an essential component for safeguarding your fuel injection system. This filter is designed to remove fine particles from fuel, preventing damage to sensitive EFI components. Constructed from high-quality billet aluminum with a black anodized finish, it offers both durability and corrosion resistance. The 10-micron filter element ensures effective filtration, and the -8 AN fittings provide secure, leak-free connections.

KEY FEATURES AND BENEFITS:

• Contaminant Protection: Safeguards fuel injection systems from harmful particles.
• Effective Filtration: 10-micron filtration removes fine particles from fuel.
• Durable Construction: Billet aluminum body ensures longevity and reliability.
• Corrosion Resistance: Black anodized finish protects against corrosion.
• Secure Connections: -8 AN inlet and outlet fittings for leak-free installation.
• Fuel Compatibility: Works with gasoline and flex-fuel systems.
• Inline Design: Easy to install between the fuel pump and EFI system.

SPECIFICATIONS:

• Manufacturer Part Number: 55002
• Filter Style: Inline
• Inlet/Outlet Size: -8 AN (ORB-8)
• Filtration Rating: 10 microns
• Filter Element Material: Stainless steel mesh
• Housing Material: Billet aluminum
• Housing Color: Black
• Overall Length: 5.50 inches
• Compatibility: Gas, Flex Fuel
• Weight: 1.5 lbs
• Fittings: Not Included
• Mounting Bracket: Not Included
• Clamps: Not Included

HOW TO USE:

• Ensure the fuel system is depressurized.
• Identify a suitable location between the fuel pump and the EFI system for filter placement.
• Connect the -8 AN inlet fitting of the filter to the fuel line coming from the fuel pump.
• Connect the -8 AN outlet fitting of the filter to the fuel line leading to the EFI system.
• Ensure all connections are tight and secure.
• Repressurize the fuel system and check for leaks.
• Start the engine and verify proper fuel flow.

BENEFITS OF USING THE FITECH 10-MICRON FUEL FILTER (55002):

• Extended Lifespan: Increases the longevity of fuel injection components.
• Optimal Fuel Flow: Maintains proper fuel flow and pressure.
• Engine Protection: Reduces the risk of damage due to fuel contamination.
• Consistent Performance: Ensures reliable engine performance.
• Enhanced Security: Provides added protection for expensive EFI systems.

FEATURES:

• Precision Machined Housing: Billet aluminum construction for durability.
• Stainless Steel Mesh Element: Internal filter element ensures effective filtration.
• Secure Fittings: Female straight cut O-ring fittings for reliable connections.
• Inline Integration: Designed for seamless integration into fuel systems.
• High-Pressure Compatibility: Optimized for use with high-pressure fuel systems.
• Post-Pump Placement: Intended for installation after the fuel pump.
• Small Particle Filtration: Effectively filters out small contaminants.
