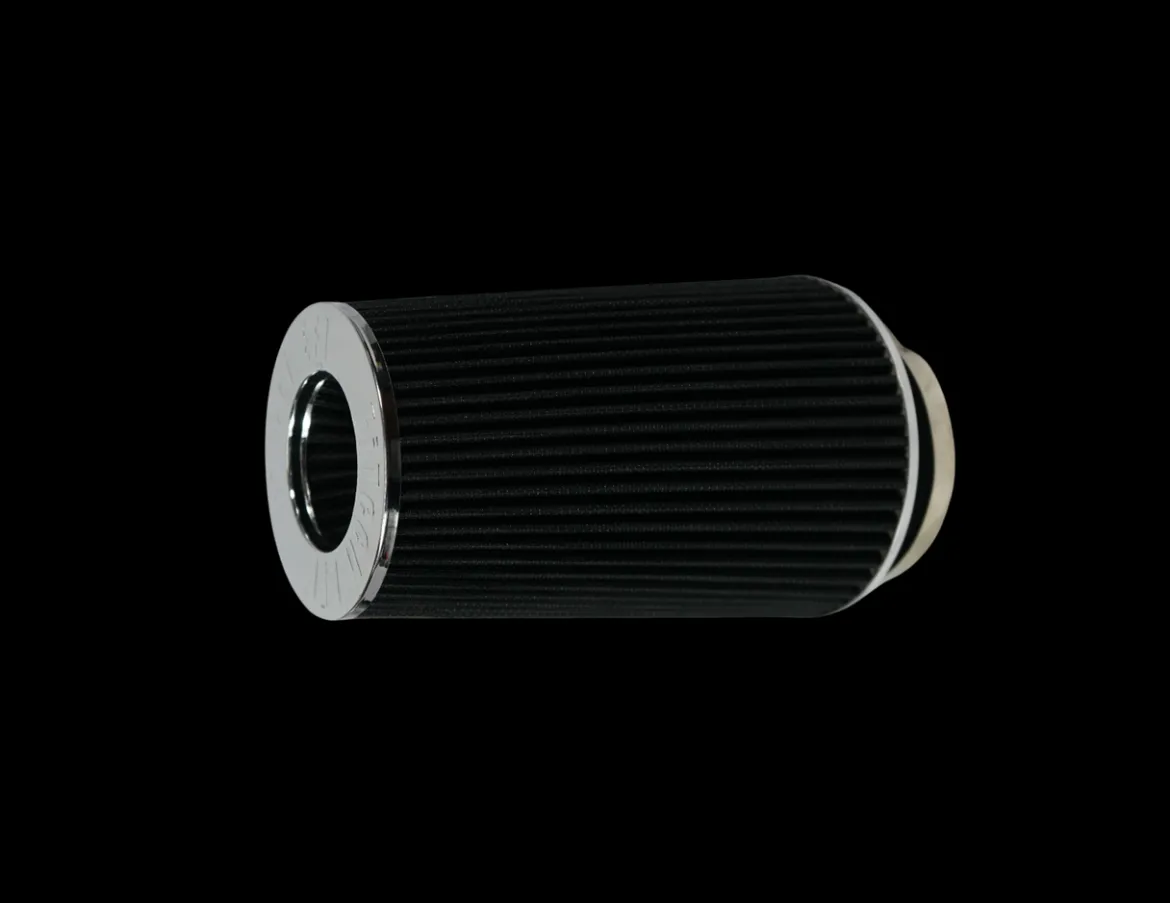

FiTech 102mm LS Throttle Body Cone Style 9 Inch Air Filter (41003)

The FiTech 102mm LS Throttle Body Cone Style 9 Inch Air Filter (41003) is engineered to maximize airflow and filtration for engines equipped with 102mm LS throttle bodies. Its unique conical design draws air from both the inside and outside, significantly increasing the filter’s surface area. This results in cleaner air entering your engine, contributing to improved performance and protection. Featuring a washable and reusable synthetic filter media, this air filter offers long-lasting performance and easy maintenance. The chrome end caps provide a sleek, polished appearance, enhancing the engine compartment’s aesthetic.

KEY FEATURES AND BENEFITS:

• High airflow design: Optimal engine performance.
• Effective filtration: Protects the engine from contaminants.
• Washable and reusable: Dryflow synthetic filter media.
• Specifically designed: For 102mm LS throttle bodies for a secure fit.
• Includes: A rubber coupler and robust clamp for easy installation.
• Chrome end caps: For a show-quality finish.
• Oil-free filter media: Easy maintenance.

SPECIFICATIONS:

• Air Filter Material: Non-woven Synthetic (Black)
• Air Filter Type: Dry
• Air Filter Style: Conical flanged
• Inlet Flange Inside Diameter: 4.38 inches
• Air Filter Length: 9 inches
• Top/Bottom Diameters: 4.75 inches / 6 inches
• End Cap Material: Steel
• End Cap Color: Chrome
• Flange Type: Centered
• Height: 9 inches
• Weight: 1.25 lb (filter), 2 lbs (packaged)
• Warranty: 1 Year Limited

HOW TO USE:

• Ensure the engine is cool and turned off.
• Locate the 102mm LS throttle body.
• Attach the rubber coupler to the throttle body flange.
• Slide the FiTech 41003 air filter onto the coupler.
• Secure the filter using the provided clamp.
• Ensure a tight seal to prevent air leaks.
• Periodically inspect and clean the filter as needed.

BENEFITS OF USING THE FITECH 102MM LS THROTTLE BODY CONE STYLE 9 INCH AIR FILTER (41003):

• Improved engine performance through increased airflow.
• Enhanced engine protection from airborne particles.
• Cost-effective and environmentally friendly due to reusable filter media.
• Simple installation process with included hardware.
• Aesthetic upgrade to the engine compartment with chrome finish.
• Reliable filtration.

FEATURES:

• Conical open design to maximize filter surface area.
• Synthetic filter material that does not require oiling.
• Steel end caps for added strength.
• Rubber coupler to create a tight seal.
• Heavy-duty clamp for secure mounting.
• Black filter media to hide dirt.
• Designed to be washed with soap and water.
