FiTech 2 Barrel 400 HP Classic Gold EFI w/Inline Fuel Delivery (31091)

The FiTech 2 Barrel 400 HP Classic Gold EFI w/ Inline Fuel Delivery (31091) is a comprehensive solution for upgrading your carbureted engine to modern electronic fuel injection (EFI). Designed for engines up to 400 horsepower, this system provides enhanced performance, improved fuel efficiency, and easier tuning. The classic gold finish adds a touch of vintage style to your engine bay.

KEY FEATURES AND BENEFITS:

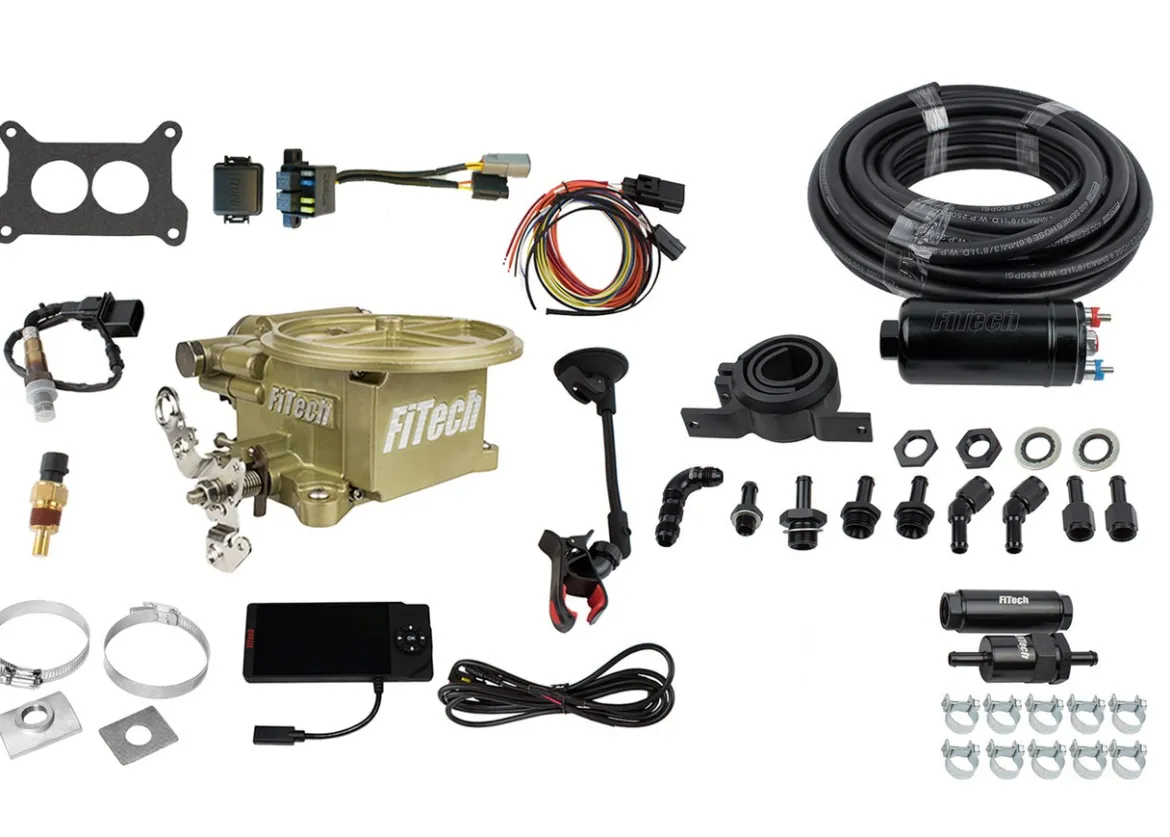

• This kit offers a complete EFI conversion, including a 2-barrel throttle body with an integrated ECU, inline fuel delivery system, and all necessary sensors.
• The self-tuning feature simplifies setup and calibration, allowing for optimal engine performance.
• The inline fuel pump kit ensures consistent fuel delivery, and the included handheld controller provides easy access to system settings.
• This system is compatible with various fuel types, including gasoline, alcohol, methanol, and flex fuel.

SPECIFICATIONS:

• Maximum Horsepower: 400 HP
• Injection Style: Throttle body
• Timing Control Compatible: Yes
• ECU Included: Yes
• Fuel Pump Included: Yes (Inline)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: Holley 2-barrel (2300)
• Venturi Quantity: 2
• Venturi Diameter: 44mm
• Airflow Rate: 500 CFM
• Injector Size: 62 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing 2-barrel carburetor.
• Installation: Mount the FiTech 2-barrel throttle body onto the intake manifold using the provided gasket.
• Sensor Installation: Install the oxygen (O2), MAP, IAT, and TPS sensors as per the instructions.
• Fuel System Setup: Mount the inline fuel pump and connect the fuel lines, ensuring proper filtration.
• Wiring: Connect the wiring harness to the vehicle’s electrical system, including power, ground, and ignition signals.
• ECU Connection: Connect the handheld controller to the ECU and follow the on-screen prompts for initial setup.
• Initial Tuning: Start the engine and allow the self-tuning feature to calibrate the system.
• Fine Tuning: Use the handheld controller to make any necessary adjustments for optimal performance.

BENEFITS OF USING THE FITECH 2 BARREL 400 HP CLASSIC GOLD EFI W/ INLINE FUEL DELIVERY (31091):

• Improved fuel efficiency compared to a carburetor.
• Enhanced engine performance and throttle response.
• Simplified tuning with the self-tuning feature.
• Consistent fuel delivery with the included inline pump kit.
• Modern EFI technology with classic aesthetics.
• Easy to install for a DIY project.

FEATURES:

• Integrated ECU within the throttle body.
• Handheld controller with 4.5-inch display.
• Wideband oxygen (WBO2) sensor included.
• External fuel pump with included filters.
• Cast aluminum throttle body with gold finish.
• Compatible with various fuel types.
• Complete sensor package.
• 62 lbs/hr fuel injectors.
