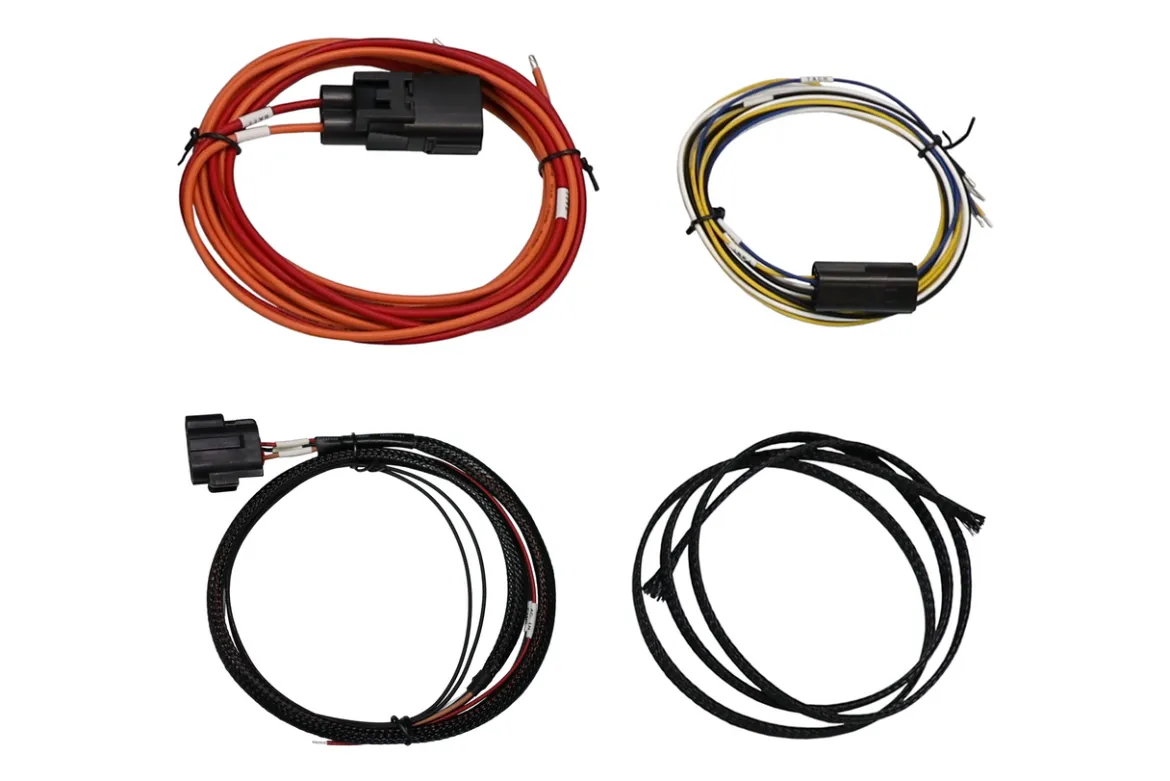

FiTech 4pin + 2pin + 4pin Side Wiring Harness w/Coil & Wire (60028)

The FiTech 4pin + 2pin + 4pin Side Wiring Harness w/Coil & Wire (60028) is a critical engine-side wiring harness designed for use with specific FiTech Go EFI systems. This Version 2 harness features a coil and supports advanced engine management functions, including timing control, accessory integration, and nitrous oxide system connections. This harness is engineered for compatibility with FiTech system part numbers 30004, 30012, 30014, and 30064.

KEY FEATURES AND BENEFITS:

• Essential Wiring: Provides necessary connections for FiTech Go EFI systems with timing control.
• Coil Functionality: Integrates coil wiring for ignition systems.
• Accessory Support: Supports air conditioning input (AC in).
• Nitrous Oxide Connections: Enables nitrous oxide system connections (N2O in/out).
• Cooling Fan Control: Offers control for a second electric cooling fan (Fan 2).
• Secure Connections: Utilizes 4-pin and 2-pin connectors for reliable connections.
• Power Adder Applications: Designed specifically for power adder setups.

SPECIFICATIONS:

• Connector Types: 4-pin, 2-pin, 4-pin
• Application: FiTech Go EFI systems (30004, 30012, 30014, 30064)
• Function: Engine-side wiring harness with coil, timing control, accessory control
• Features: AC in, N2O in, N2O out, Fan 2

HOW TO USE:

• Disconnect Battery: Begin by disconnecting the vehicle’s battery to prevent electrical shorts.
• Locate Existing Harness: Identify the existing engine-side wiring harness that needs replacement or the area where the new harness will be installed.
• Connect Connectors: Match the 4-pin and 2-pin connectors of the FiTech 60028 to their corresponding connections on the FiTech EFI system and engine components.
• Coil Connection: Securely connect the coil wiring to the ignition system.
• Accessory Connections: Connect the AC in, N2O in/out, and Fan 2 wires to their respective control modules or relays.
• Verify Connections: Double-check all connections to ensure they are secure and properly seated.
• Reconnect Battery: Reconnect the vehicle’s battery.
• Test System: Start the engine and test the functionality of the FiTech EFI system and connected accessories.

BENEFITS OF USING FITECH 4PIN + 2PIN + 4PIN SIDE WIRING HARNESS W/COIL & WIRE (60028):

• Simplified Wiring: Provides a straightforward solution for advanced FiTech EFI systems.
• Enhanced Engine Control: Improves overall timing management for better performance.
• Seamless Integration: Facilitates the integration of accessories like AC and nitrous oxide.
• Improved Cooling Control: Supports dual fan control for enhanced cooling efficiency.
• Reliable Connections: Ensures dependable electrical connections.
• Direct Fit Compatibility: Tailored for specified FiTech systems for easy installation.

FEATURES:

• Multi-Connector Design: Features 4-pin and 2-pin connectors for versatile connections.
• Integrated Coil Wiring: Includes dedicated wiring for ignition functionality.
• AC Control Input: Dedicated wiring for air conditioning control.
• Secondary Fan Control: Separate wire for controlling a secondary electric fan.
• Engine Side Placement: Specifically designed for engine-side installation.
• Version 2 Design: Enhanced features for improved performance.
