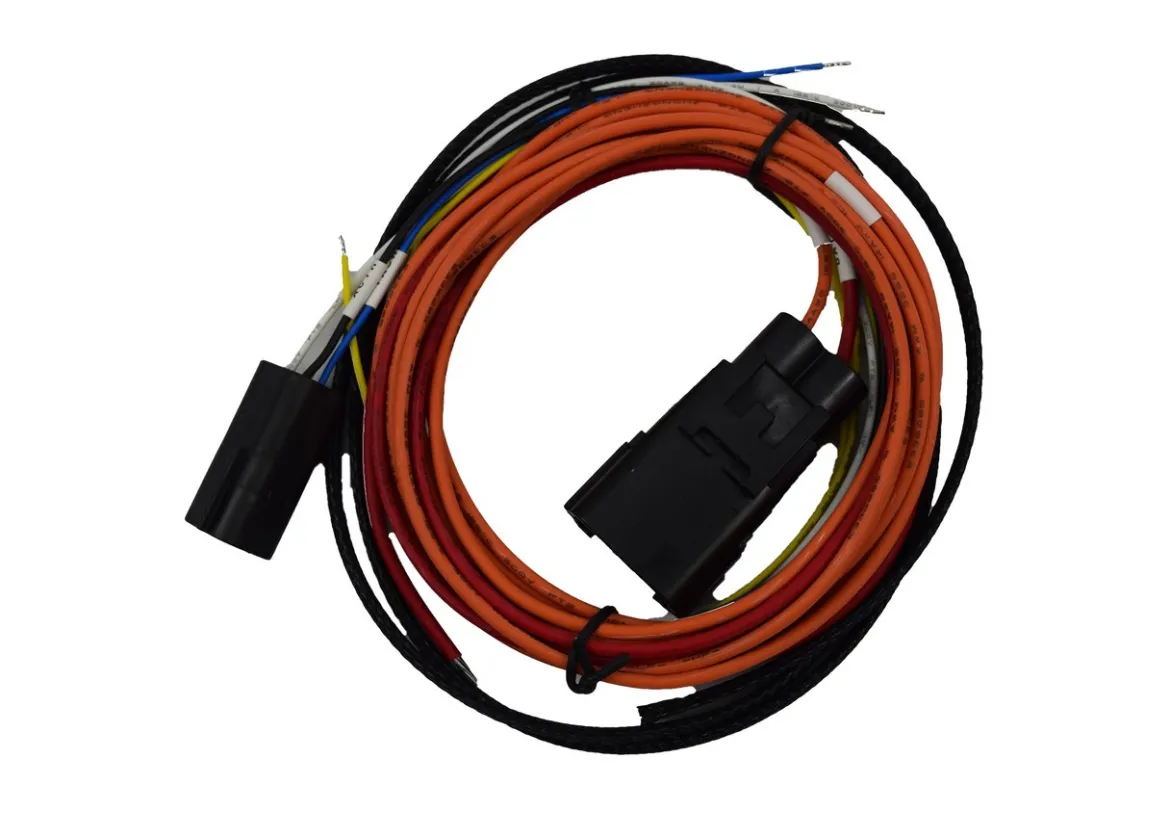

FiTech 4pin + 2pin Engine Side Wiring Harness w/Coil & Wire (60027)

The FiTech 4pin + 2pin Engine Side Wiring Harness w/Coil & Wire (60027) is a main wiring harness designed for specific FiTech Go EFI throttle body electronic fuel injection systems. This harness facilitates the connection between the engine and the EFI system’s control module, providing the necessary electrical pathways for proper operation. It includes vital connections for timing control, ensuring accurate ignition timing.

KEY FEATURES AND BENEFITS:

• Essential Component: This wiring harness is crucial for those utilizing FiTech Go EFI systems requiring timing control.
• Direct Connection: Offers a direct connection with 4-pin and 2-pin engine side connectors, along with a coil positive wire, simplifying installation.
• Wide Compatibility: Compatible with FiTech Go EFI systems 30001, 30002, 30003, 30005, 30008, 30061, and 30062, ensuring accurate connectivity for proper system function.

SPECIFICATIONS:

• Part number: 60027
• Type: Engine Side Wiring Harness
• Connectors: 4-pin, 2-pin
• Includes: Coil Positive Wire
• Weight: 2 lbs
• Dimensions: 3 × 2 × 2 inches
• Compatibility: FiTech Go EFI systems 30001, 30002, 30003, 30005, 30008, 30061, 30062
• Brand: FiTech Fuel Injection

HOW TO USE:

• Disconnect Battery: Begin by disconnecting the vehicle’s battery to prevent electrical shorts during installation.
• Locate Existing Connections: Identify the existing wiring connections on your engine that correspond to the 4-pin and 2-pin connectors.
• Connect 4-Pin and 2-Pin: Carefully connect the 4-pin and 2-pin connectors from the FiTech 60027 harness to their matching connections on the engine.
• Connect Coil Positive Wire: Attach the coil positive wire to the positive terminal on your ignition coil.
• Secure Wiring: Ensure all connections are secure and properly seated. Use zip ties or other suitable methods to secure the wiring harness and prevent movement.
• Reconnect Battery: Reconnect the vehicle’s battery.
• Verify Function: Test the EFI system to ensure proper operation.

BENEFITS OF USING FITECH 4PIN + 2PIN ENGINE SIDE WIRING HARNESS W/COIL & WIRE (60027):

• Reliable Connections: Provides dependable electrical connections for your FiTech Go EFI system.
• Accurate Timing Control: Ensures critical timing accuracy, crucial for optimal engine performance.
• Simplified Installation: The direct-fit design reduces the potential for wiring errors.
• Compatibility: Tailored for specific FiTech systems, ensuring seamless integration and proper function.

FEATURES:

• Integrated Coil Positive Wire: Provides a direct interface with the ignition system.
• Timing Control Design: Engineered for systems utilizing timing control for improved performance.
• Engine Side Specific: Customized wiring for the engine side connections.
• Matched Connector Types: Ensures compatibility with specified FiTech systems.
• Compact Size: Facilitates easier routing and installation.
