FiTech BB Chevy Victor JR 454-O EFI Intake Manifold (30458-1)

The FiTech BB Chevy Victor JR 454-O EFI Intake Manifold (30458-1) is a complete electronic fuel injection solution designed specifically for Big Block Chevy engines with oval port cylinder heads. This system allows for the conversion from a traditional carburetor to modern EFI, offering enhanced performance and improved fuel management. This kit provides a comprehensive solution, including all necessary components for a streamlined installation.

KEY FEATURES AND BENEFITS:

• Integrated ECU: The ECU is directly within the throttle body, simplifying the installation process.
• Complete Kit: Includes an intake manifold, fuel rails, injectors, sensors, wiring harness, and hand-held touchscreen tuner.
• High Horsepower Support: Designed for engines producing between 500 and 1050 horsepower for precise fuel delivery.
• User-Friendly Tuner: The hand-held tuner eliminates the need for laptop tuning, allowing for straightforward adjustments.

SPECIFICATIONS:

• Engine Compatibility: Big Block Chevy with Oval Port Cylinder Heads.
• Horsepower Range: 500-1050 HP.
• ECU: Integrated into Throttle Body.
• Injector Type: 8 High Impedance Injectors.
• Tuning: Hand-held Touchscreen.
• Fuel Delivery: Port Injection.
• Intake Manifold: Included, Oval Port Design.

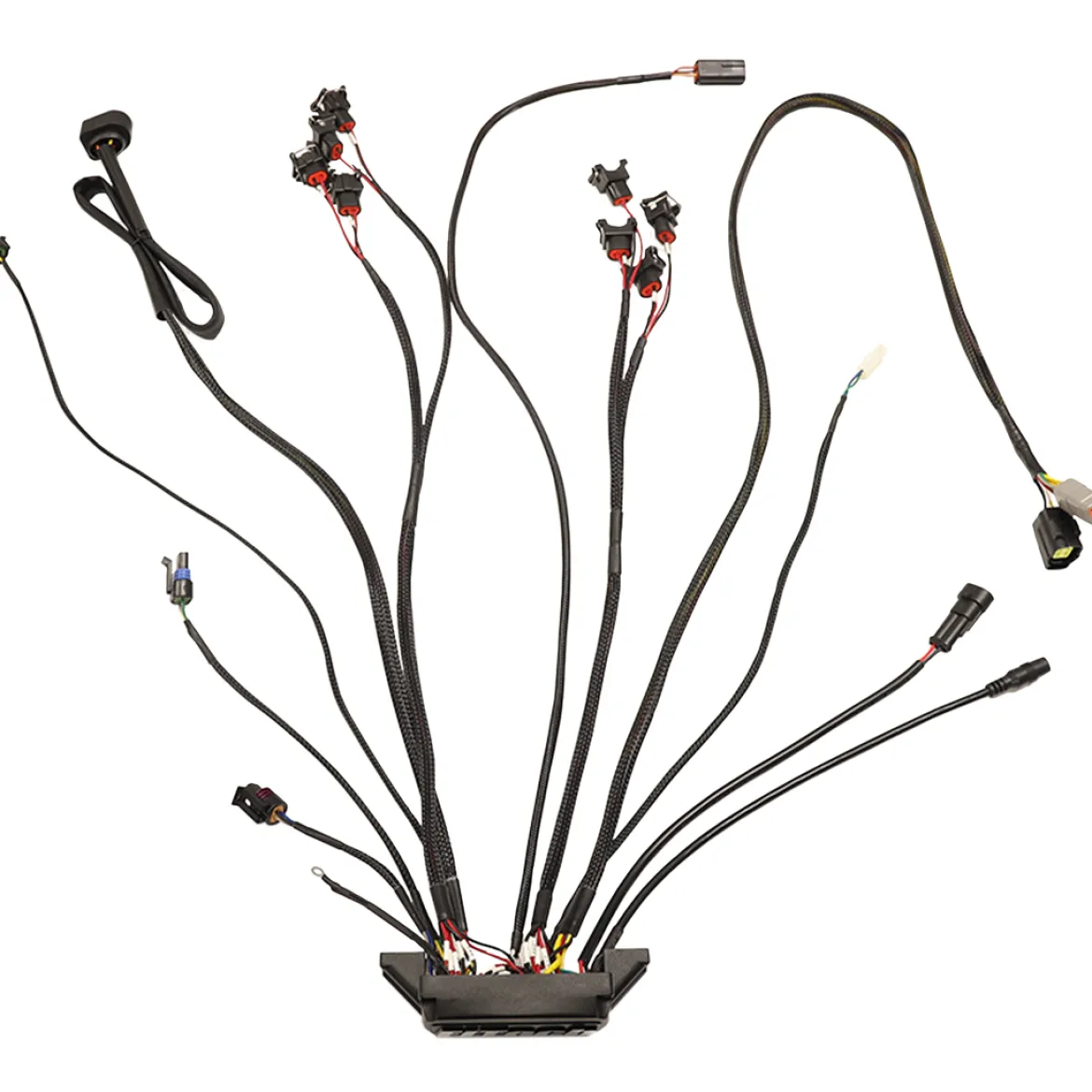

• Wiring: Simplified Harness.

HOW TO USE:

• Preparation: Remove the existing carburetor and intake manifold.
• Installation: Install the FiTech intake manifold onto the engine.
• Fuel System: Mount the fuel rails and injectors, and connect the fuel lines.
• Sensor Installation: Install all provided sensors (MAP, TPS, etc.) as per the instructions.
• Wiring: Connect the wiring harness to the engine sensors and power source.
• ECU Connection: Ensure the integrated ECU is properly connected.
• Initial Setup: Use the hand-held tuner to input engine parameters.
• Tuning: Make necessary adjustments using the hand-held tuner.
• Testing: Start the engine and verify proper operation.
• Final Adjustments: Fine-tune as needed for optimal performance.

BENEFITS OF USING THE FITECH BB CHEVY VICTOR JR 454-O EFI INTAKE MANIFOLD (30458-1):

• Improved Fuel Efficiency: Offers better fuel efficiency compared to a carburetor, potentially lowering fuel consumption.
• Consistent Fuel Delivery: The EFI system provides more consistent and precise fuel delivery, enhancing engine performance and smooth operation.
• Simplified Installation: The integrated ECU simplifies the installation process.
• Easy Adjustments: The hand-held tuner allows for easy adjustments without needing a laptop.
• Modern Upgrade: Provides a contemporary enhancement for classic Big Block Chevy engines.

FEATURES:

• Wide Horsepower Range: Designed for various horsepower capabilities.
• High Impedance Injectors: Ensures accurate fuel delivery.
• Simplified Wiring: Reduced installation time with an easy-to-install wiring harness.
• Oval Port Manifold: Matches the cylinder heads for optimal performance.
• Direct Replacement: Designed for straightforward installation.
