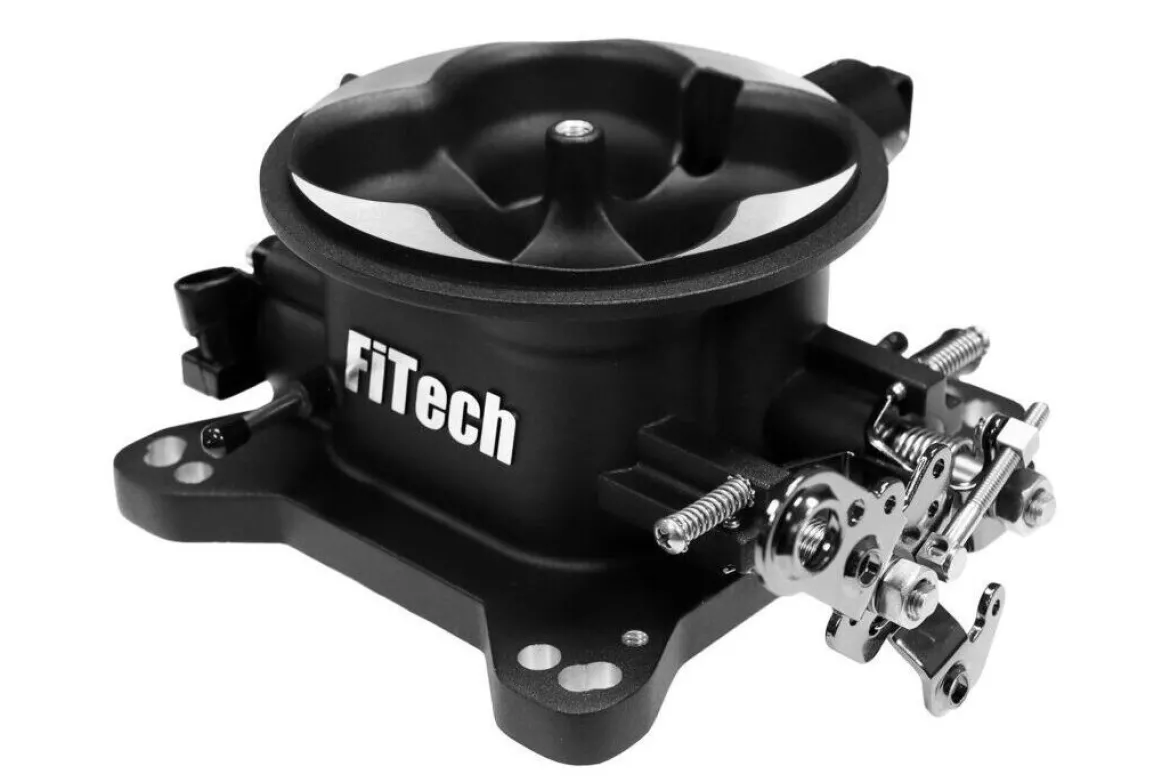

FiTech Black MAP Universal 4150 4BBL Throttle Body (30032)

The FiTech Black MAP Universal 4150 4BBL Throttle Body (30032) is engineered to provide precise airflow control for high-performance engines. This 4-barrel throttle body, designed with a 4150 flange, offers compatibility with a wide range of intake manifolds. With an airflow rate exceeding 1000 CFM, it supports both street and track applications. The design incorporates sensor flexibility, allowing for use with either TMAP or MAP sensors, and includes a threaded IAT port for boosted setups. A built-in IAC motor ensures stable idle, and multiple vacuum ports provide connection options for various accessories. The non-progressive secondary throttle linkage offers immediate throttle response.

KEY FEATURES AND BENEFITS:

• Universal 4150 Flange: Ensures compatibility with most 4-barrel intake manifolds, simplifying installation.
• High Airflow (1000+ CFM): Maximizes engine performance and efficiency, suitable for high-demand applications.
• Sensor Versatility: Adapts to both TMAP and MAP sensors, providing flexibility in engine tuning.
• Threaded IAT Port: Facilitates accurate temperature readings for boosted blow-thru setups.
• Built-In IAC Motor: Guarantees smooth and stable idling, enhancing drivability.
• Multiple Vacuum Ports: Allows for easy connection of various engine accessories.
• Non-Progressive Throttle Linkage: Delivers immediate throttle response for precise control.

SPECIFICATIONS:

• Part Number: 30032
• Throttle Body Style: Throttle body injection (TBI)
• Throttle Body Actuation: Cable
• Venturi Quantity: 4
• Airflow Rate: 1,000+ CFM
• Sensor Compatibility: MAP, TMAP
• IAC Motor: Included
• Gaskets: Included
• Hardware: Included
• Injectors: Not Included
• Material: Cast Aluminum
• Color: Black (matte or brilliant)
• Compatibility: Universal 4150 flange
• Boost Reference: Vacuum port provided.

HOW TO USE:

• Preparation: Ensure the engine is cool and disconnected from the battery. Remove the existing throttle body and clean the intake manifold surface.
• Installation: Position the FiTech 30032 throttle body onto the intake manifold, aligning the 4150 flange.
• Gasket and Hardware: Install the provided gaskets and secure the throttle body using the supplied hardware, tightening bolts in a cross pattern to ensure even pressure.
• Sensor Connection: Connect the chosen MAP or TMAP sensor to the designated port, ensuring a secure connection. Connect the IAT sensor if being used.
• IAC Motor Connection: Plug in the IAC motor connector.
• Vacuum Lines: Attach vacuum lines to the available ports for accessories, ensuring proper routing and secure connections. Connect boost reference line if applicable.
• Throttle Cable: Connect the throttle cable to the throttle linkage, adjusting for proper tension and full range of motion.
• Final Checks: Verify all connections are secure, and ensure there are no obstructions. Reconnect the battery.
• Engine Start: Start the engine and check for proper idle and throttle response. Adjust as needed.

BENEFITS OF USING THE FITECH BLACK MAP UNIVERSAL 4150 4BBL THROTTLE BODY (30032):

• Improved Airflow: Increased CFM enhances engine performance and responsiveness.
• Enhanced Engine Control: Sensor flexibility and IAC motor ensure precise engine management.
• Versatile Application: Universal fit and accessory ports accommodate a wide range of engine setups.
• Boosted Application Ready: Threaded IAT and boost reference port.
• Reliable Idle: The built-in IAC motor ensures a stable idle.

FEATURES:

• 4-barrel design with 4150 flange.
• Supports MAP or TMAP sensor configurations.
• Threaded port for IAT sensor.
• Built-in Idle Air Control (IAC) motor.
• Multiple vacuum ports for accessory connections.
• Non-progressive (1:1) secondary throttle linkage.
• Cast aluminum construction.
• Black finish.
• Cable actuated.
