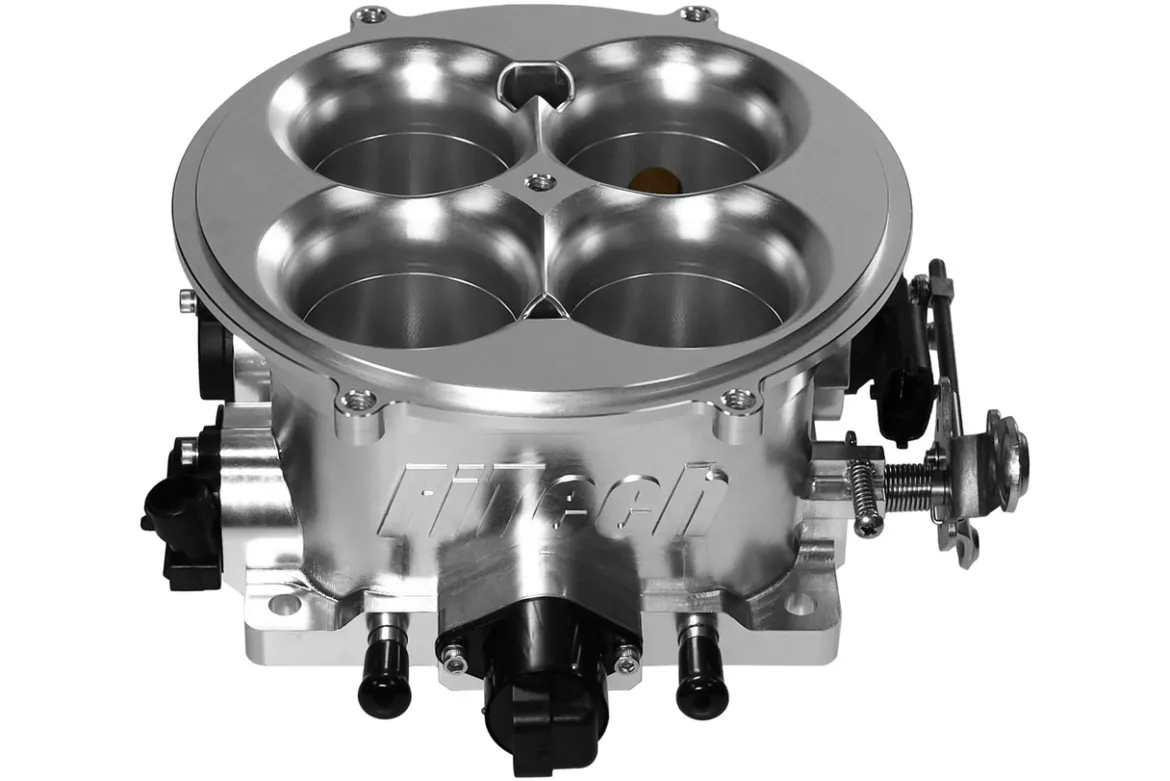

FiTech Brilliant TMAP Universal 4500 4BBL Throttle Body (30039)

The FiTech Brilliant TMAP Universal 4500 4BBL Throttle Body (30039) is a high-performance solution for those looking to upgrade to electronic fuel injection or enhance the performance of their existing EFI system. Designed for universal fitment on engines utilizing a 4500 4-barrel style intake manifold, this throttle body offers a significant increase in airflow and improved fuel delivery compared to traditional carburetor setups. Constructed from polished billet aluminum, the Nemesis 4500 not only performs exceptionally but also adds a touch of style to your engine bay.

KEY FEATURES AND BENEFITS:

• Increased Airflow: Rated at 1820 cfm, the throttle body offers substantial airflow improvements for better horsepower and torque.
• Multi-Port Injection (MPI): Ensures more precise fuel delivery to each cylinder for enhanced fuel efficiency and smoother engine operation.
• Integrated Sensors: Includes a Throttle Position Sensor (TPS), Idle Air Control (IAC) motor, and Throttle Manifold Absolute Pressure (T-MAP) sensor, allowing for optimal fuel and ignition management.
• T-MAP Sensor: Monitors intake air temperature and pressure for precise timing adjustments to enhance performance across varying conditions.
• Responsive Throttle Feel: The cable actuation design provides a direct and familiar throttle response.
• Complete Installation Package: Comes with gaskets and necessary hardware for installation (fuel injectors must be sourced separately).

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Manufacturer’s Part Number: 30039
• Product Line: FiTech Nemesis 4500 Throttle Bodies
• Throttle Body Style: Multi-port injection (MPI)
• Throttle Body Actuation: Cable
• Venturi Quantity: 4
• Venturi Diameter: 58.40mm
• Airflow Rate: 1,820 cfm
• TPS Sensor Included: Yes
• IAC Motor Included: Yes
• Gaskets Included: Yes
• Hardware Included: Yes
• Injectors Included: No
• Throttle Body Material: Billet aluminum
• Throttle Body Color: Polished
• Remanufactured: No
• Quantity: Sold individually
• Sensor Type: T-MAP (Throttle Manifold Absolute Pressure)
• Mounting Type: 4500 4-Barrel Flange (Implied)
• Compatibility: Universal fit for applications using a 4500 4-barrel intake manifold

HOW TO USE:

• Preparation: Ensure the engine is cool and the battery is disconnected. Gather necessary tools, including wrenches, sockets, and potentially fuel line disconnect tools.
• Remove Existing Carburetor/Throttle Body: Carefully remove the existing carburetor or throttle body from the intake manifold. Take note of all vacuum lines, fuel lines, and electrical connections for proper reassembly or replacement.
• Install the FiTech Throttle Body: Place the provided gasket onto the intake manifold. Position the FiTech 30039 throttle body onto the gasket and secure it using the included hardware. Tighten the bolts to the manufacturer’s recommended torque specifications.
• Connect Sensors: Connect the wiring harnesses to the included TPS, IAC motor, and T-MAP sensor on the throttle body. Ensure connections are secure.
• Install Fuel Injectors (Not Included): Install the appropriate fuel injectors into the designated ports on the throttle body. Ensure they are properly seated and secured.
• Connect Fuel Lines: Connect the fuel lines to the fuel rails on the throttle body. This may require adapting existing fuel lines or installing new ones suitable for EFI systems. Ensure all connections are tight and leak-free.
• Connect Throttle Cable: Attach the throttle cable to the throttle body linkage. Adjust the cable to ensure proper throttle operation and return.
• Connect Vacuum Lines: Connect any necessary vacuum lines to the appropriate ports on the throttle body.
• Connect Wiring: Connect the main wiring harness from the EFI system (not included) to the throttle body and sensors according to the EFI system’s instructions.
• Final Checks: Double-check all connections, ensuring everything is secure and properly installed.
• Initial Setup and Tuning: Follow the instructions provided with your EFI system to set up the ECU and perform initial tuning. This may involve inputting engine parameters and calibrating sensors.

BENEFITS OF USING THE FITECH BRILLIANT TMAP UNIVERSAL 4500 4BBL THROTTLE BODY (30039):

• Increased Power: Higher airflow capacity of 1820 cfm boosts horsepower and torque, providing significant acceleration improvements.
• Improved Fuel Efficiency: The multi-port injection system offers more precise fuel delivery for optimized fuel efficiency.
• Smoother Engine Operation: The T-MAP sensor enables real-time tuning for optimized timing, improving overall engine performance and drivability.
• Better Cold Starting: The EFI system ensures smoother engine starts in cold conditions, reducing engine wear.
• Reduced Emissions: The advanced EFI system provides more efficient combustion, helping to reduce harmful emissions.
• Polished Billet Aluminum Construction: Adds a sleek, polished finish and excellent corrosion resistance to your engine bay.

FEATURES:

• High Airflow Capacity: Delivers up to 1820 cfm for significant performance gains.
• Multi-Port Injection (MPI): Provides precise fuel delivery to each cylinder.
• Billet Aluminum Construction: Offers strength, durability, and a polished finish.
• Built-in IAC Motor: Manages idle speed for smooth operation.
• Cable Actuation: Maintains a traditional and responsive throttle feel.
• Universal 4500 Flange Mount: Compatible with a wide range of intake manifolds.
• Gaskets and Hardware Included: Facilitates easier installation.
• Four Venturi Design: Maximizes airflow distribution.
• 58.40mm Venturi Diameter: Optimized for high-performance applications.
• Designed for EFI Conversion: Simplifies the process of upgrading from a carburetor.
• Timing Adjustment Capability: Allows for fine-tuning based on intake air temperature.
• Polished Finish: Enhances the appearance of the engine bay.
