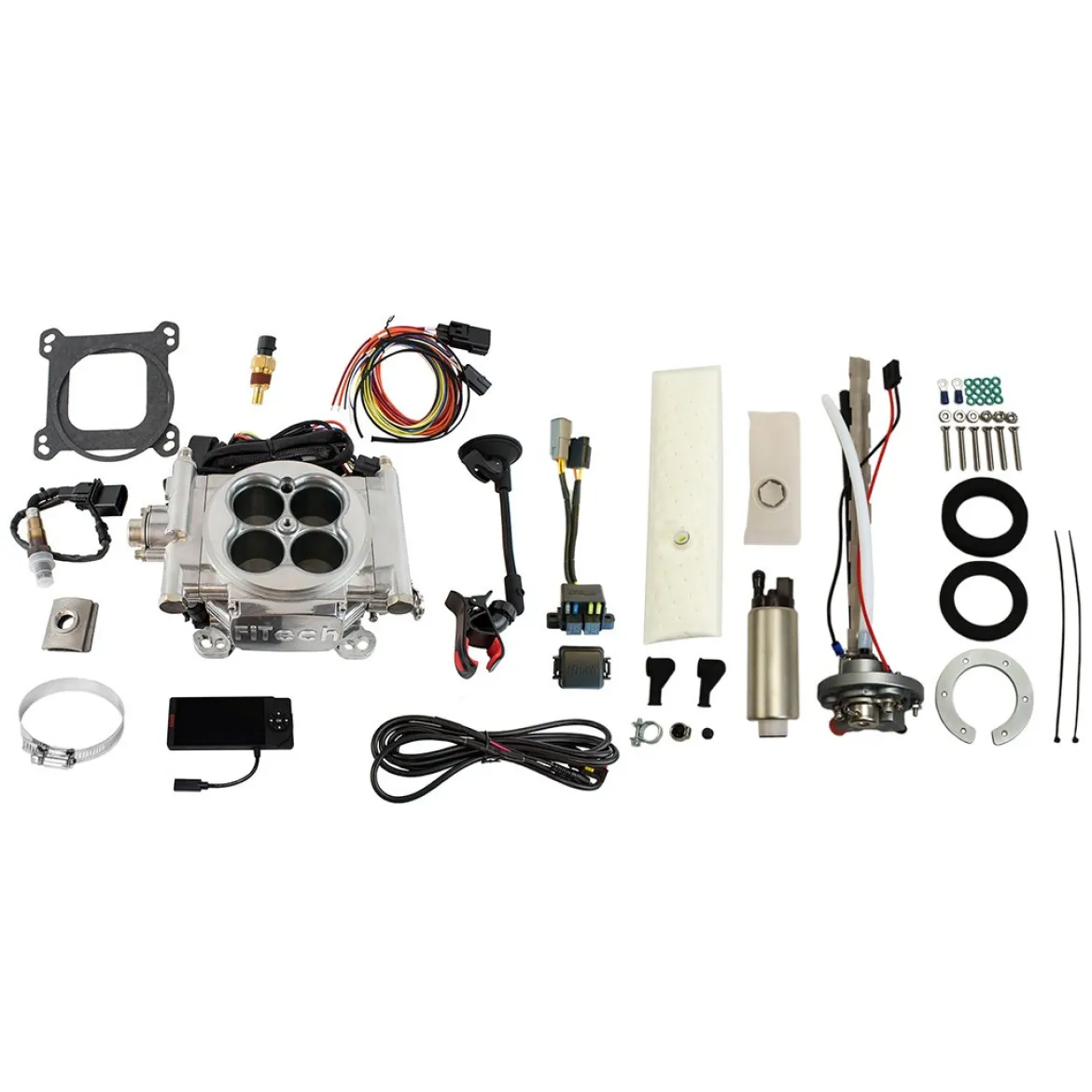

FiTech EFI 4 600 HP Bright Aluminum w/ 340 LPH In-Tank Pump (36601)

The FiTech EFI 4 600 HP Bright Aluminum w/ 340 LPH In-Tank Pump (36601) provides a complete electronic fuel injection (EFI) solution for engines up to 600 horsepower. This kit allows for the replacement of a traditional carburetor with a modern, self-tuning EFI system, enhancing engine performance and drivability. The system includes a 4-barrel throttle body, ECU, fuel pump, and all necessary components for a comprehensive upgrade.

KEY FEATURES AND BENEFITS:

• Self-Tuning ECU: Automatically adjusts fuel delivery for optimal performance, simplifying the tuning process.
• In-Tank Fuel Pump Module: Provides a complete fuel delivery solution for reliable performance.
• 850 CFM Throttle Body: Ensures adequate airflow for high-performance engines.
• 80 lbs/hr Injectors: Delivers sufficient fuel supply for enhanced performance.
• User-Friendly Touchscreen Controller: The 4.5-inch handheld controller allows for easy monitoring and adjustments.
• Timing Control Compatibility: Enhances engine management for improved performance.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control Compatible: Yes
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr
• Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
• Fuel System Installation: Install the in-tank fuel pump module and run the necessary fuel lines.
• Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold.
• Wiring: Connect the wiring harness to the ECU, sensors (O2, MAP, IAT, TPS), and power supply.
• Sensor Installation: Install the oxygen sensor in the exhaust system and connect the coolant sensor.
• ECU Setup: Connect the handheld controller to the ECU and follow the on-screen instructions for initial setup.
• Initial Start-Up: Start the engine and allow the self-tuning feature to calibrate the fuel delivery.
• Fine-Tuning (Optional): Use the handheld controller to make any necessary adjustments.

BENEFITS OF USING THE FITEC EFI 4 600 HP BRIGHT ALUMINUM W/ 340 LPH IN-TANK PUMP (36601):

• Improved Fuel Efficiency: More efficient than traditional carbureted systems.
• Enhanced Engine Performance: Offers better throttle response and overall performance.
• Simplified Tuning: Self-learning capabilities make tuning easy and efficient.
• Reliable Cold Start and Idle Performance: Provides consistent performance in various conditions.
• Modernized Engine Management: Upgrades your engine’s management capabilities.

FEATURES:

• Integrated ECU: Includes a MAP sensor and fuel pressure regulator.
• 4.5-Inch Touchscreen Controller: For monitoring and adjustments.
• Wideband Oxygen Sensor: Provides accurate air/fuel ratio feedback.
• Compatible with Multiple Fuel Types: Flexibility in fuel options.
• Speed Density Metering Style: For optimized fuel delivery.
• Cast Aluminum Polished Throttle Body: Durable and aesthetically pleasing.
• Wiring Harness Included: Facilitates easy installation.
