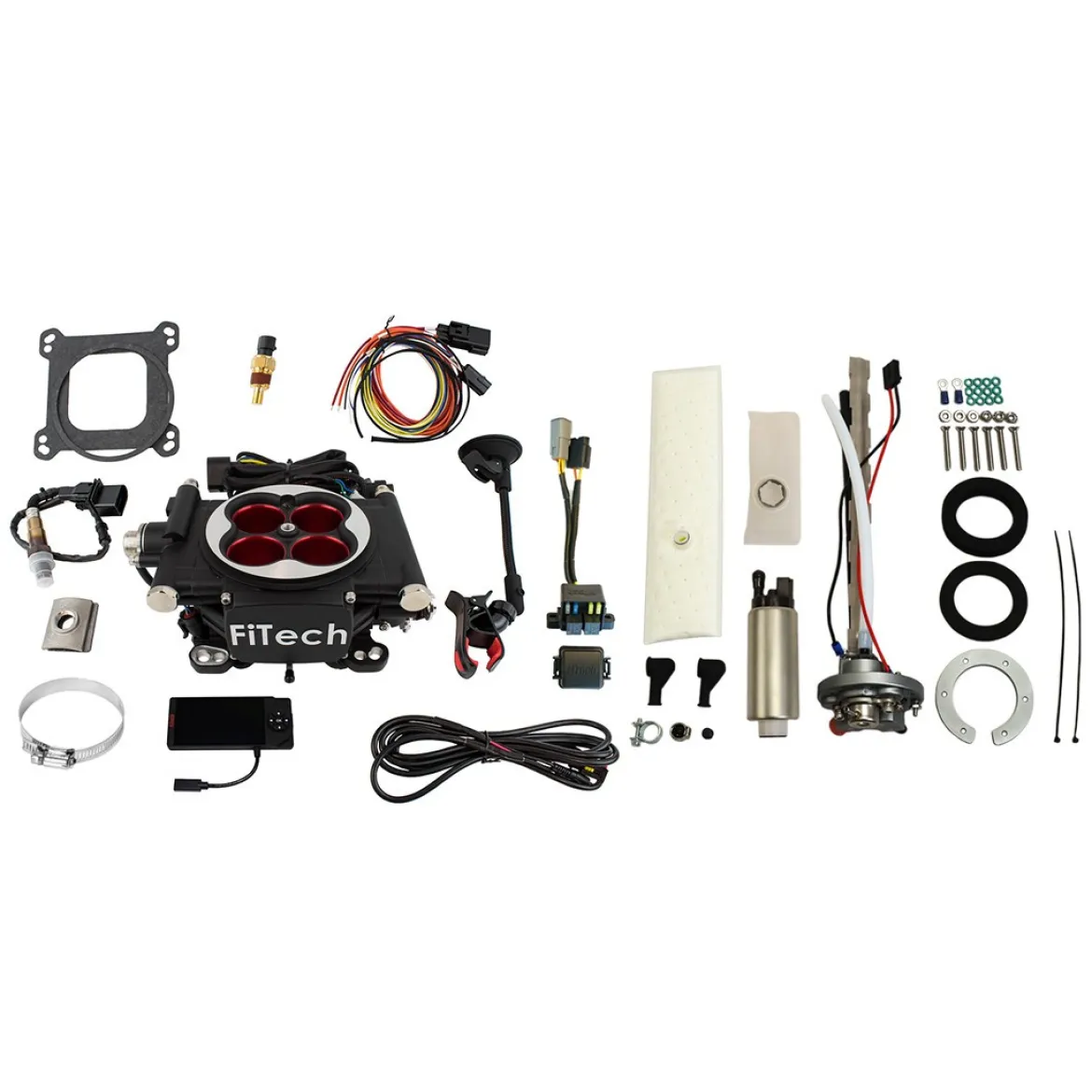

FiTech EFI 4 600 HP Power Adder Matte Black w/ 340 LPH Pump (36604)

The FiTech EFI 4 600 HP Power Adder Matte Black w/ 340 LPH Pump (36604) is a comprehensive electronic fuel injection (EFI) system designed for performance engines up to 600 horsepower. This kit provides a complete solution for converting from a carburetor to EFI, including an in-tank fuel pump, ECU, sensors, and a handheld controller. The system is engineered to handle boosted (turbocharged or supercharged) and nitrous oxide applications, offering self-learning capabilities and user-adjustable tuning options.

KEY FEATURES AND BENEFITS:

• High Power Support: Designed for engines producing up to 600 horsepower.
• Self-Learning ECU: Automatically adjusts fuel delivery for optimal performance.
• Consistent Fuel Pressure: Includes an in-tank 340 LPH fuel pump.
• Timing Control Compatibility: Allows adjustments based on boost or nitrous.
• User-Friendly Handheld Controller: Provides easy setup and monitoring.
• Ample Airflow: 850 CFM throttle body ensures sufficient airflow for high performance.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatible: Yes (Boost/Nitrous)
• ECU Included: Yes
• Fuel Pump: In-tank 340 LPH
• Metering Style: Speed density (Map-N)
• Throttle Body: 4-barrel, 850 CFM, 43mm venturi
• Injectors: 80 lbs/hr
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Install the In-Tank Fuel Pump Module: Follow the provided instructions for installation.
• Mount the Throttle Body: Secure the 4-barrel throttle body to the intake manifold.
• Connect the Wiring Harness: Attach it to the ECU and sensors.
• Install the Oxygen Sensor: Place it in the exhaust system.
• Connect the Handheld Controller: Plug it into the ECU.
• Initial Setup: Follow the prompts on the handheld controller for setup.
• Start the Engine: Allow the self-learning feature to optimize fuel delivery.
• Fine-Tuning: Use the handheld controller or laptop software as needed.

BENEFITS OF USING THE FITEC EFI 4 600 HP POWER ADDER MATTE BLACK W/ 340 LPH PUMP (36604):

• Improved Fuel Efficiency: More efficient than traditional carburetors.
• Enhanced Engine Performance: Provides better responsiveness and overall performance.
• Simplified Tuning: Self-learning capabilities make setup straightforward.
• Reliable Fuel Delivery: Ensures consistent performance under various conditions.
• Boosted and Nitrous Applications: Designed for reliable performance in extreme conditions.
• Complete Kit: No additional fuel system parts typically needed for installation.

FEATURES:

• Black Cast Aluminum Throttle Body: Durable and stylish design.
• 80 lbs/hr Fuel Injectors: Included for high-flow fuel delivery.
• Comprehensive Sensor Package: Includes MAP, IAT, and TPS sensors.
• 4.5-Inch Touchscreen Handheld Controller: For easy monitoring and adjustments.
• Wiring Harness and Oxygen Sensor: Included for a complete installation.
• Ignition Timing Control: Ability to control ignition timing for optimized performance.
• User Adjustable Calibration: Fine-tune the system as needed.
• 850 CFM Airflow Rating: Supports high-performance applications.
