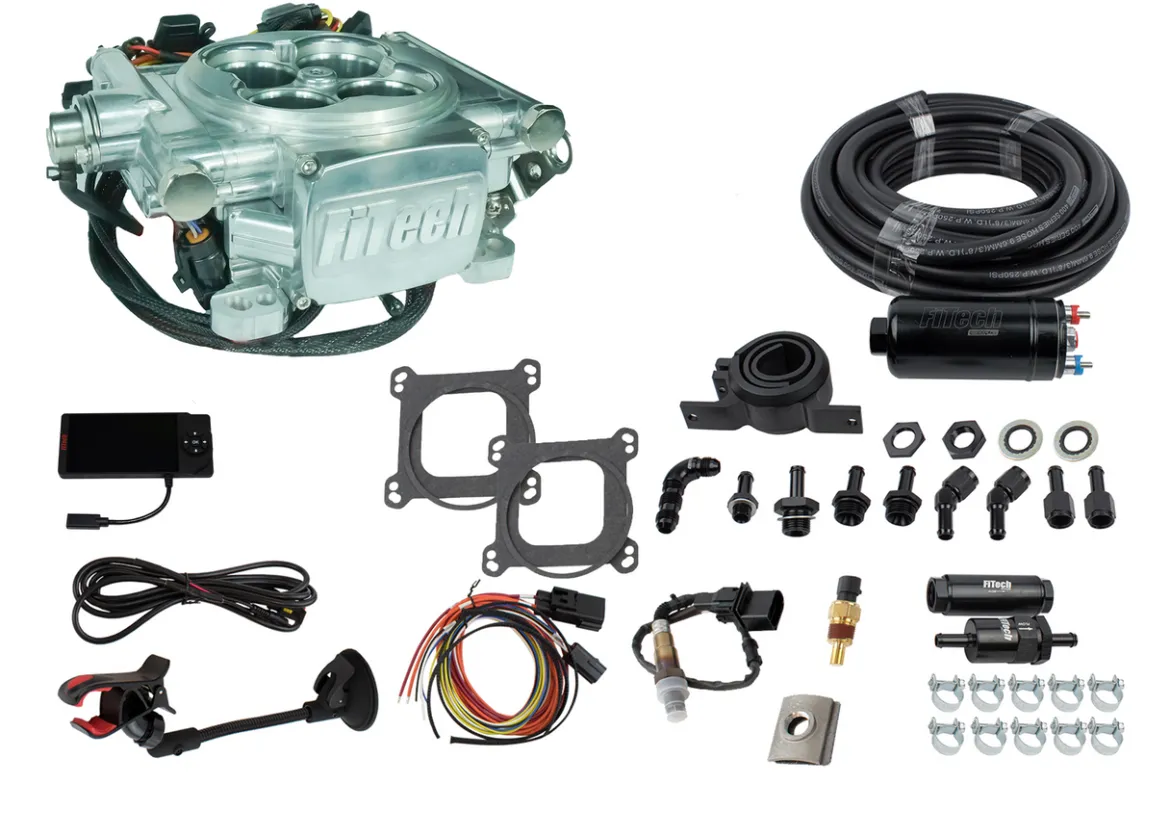

FiTech EFI 4 600HP Power Adder Aluminum w/Inline Fuel Delivery (31006)

The FiTech EFI 4 600HP Power Adder Aluminum w/Inline Fuel Delivery (31006) is designed to modernize carbureted engines, particularly those with superchargers, turbochargers, or nitrous oxide systems. This kit offers a comprehensive solution for engines producing 250 to 600 horsepower, providing improved performance and fuel efficiency. It includes a self-tuning ECU, inline fuel pump, and all necessary components for a straightforward installation.

KEY FEATURES AND BENEFITS:

• Power Adder Support: Compatible with engines using boost and nitrous, supporting up to 600 HP.
• Self-Tuning ECU: Automatically adjusts fuel delivery for optimal performance.
• Complete Fuel Delivery Kit: Includes a 255 LPH inline fuel pump for reliable fuel flow.
• Handheld Controller: Features a touch screen for easy setup and adjustments.
• Wideband Oxygen Sensor: Ensures accurate monitoring of air/fuel ratios.
• Timing Control Capabilities: Allows for precise ignition adjustments.
• Compatibility: Designed for 4-barrel intake manifolds.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatibility: Boost/Nitrous oxide
• ECU Included: Yes
• Fuel Pump: Included (255 LPH)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Injector Size: 80 lbs/hr
• Fuel Type: Gasoline, Alcohol, Methanol, Flex
• Compatibility: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, and other engines using a 4-barrel intake manifold

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor.
• Installation: Mount the FiTech throttle body onto the 4-barrel intake manifold.
• Fuel System: Install the inline fuel pump, fuel filters, and connect the fuel lines.
• Wiring: Connect the wiring harness to the battery, ignition, and sensors.
• Sensor Installation: Install the wideband oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
• ECU Setup: Connect the handheld controller and follow the on-screen instructions for initial setup.
• Initial Start: Start the engine and allow the ECU to self-tune.
• Fine Tuning: Use the handheld controller to make any necessary adjustments.

BENEFITS OF USING THE FITECH EFI 4 600HP POWER ADDER ALUMINUM W/INLINE FUEL DELIVERY (31006):

• Improved Fuel Efficiency: Offers better performance compared to traditional carburetors.
• Simplified Tuning: The self-learning ECU makes adjustments easier.
• Enhanced Control: Provides precise control over air/fuel ratios and ignition timing.
• Reliable Fuel Delivery: Ensures consistent performance with the included fuel pump and filters.
• Modernized Engine Management: Ideal for classic and performance vehicles.

FEATURES:

• Annular Swirl Discharge: Enhances fuel distribution for better combustion.
• Boost and Nitrous Timing Retard Functions: Optimizes performance under high boost conditions.
• Adjustable Fan Control Switches: For improved cooling management.
• Air Conditioning Idle Speed Input: Enhances idle stability when A/C is engaged.
• Voltage-Controlled Fuel Pump Control: Ensures efficient fuel pump operation.
• Boost Capability: Supports up to 25 lbs of boost.
• Pro Laptop Software Compatibility: For advanced tuning options.
• Multiple Fuel Inlet Connection Options: Flexibility in installation.
• GM Type Sensors and Bosch 4.2 Wideband Oxygen Sensors: Reliable and accurate sensor performance.
