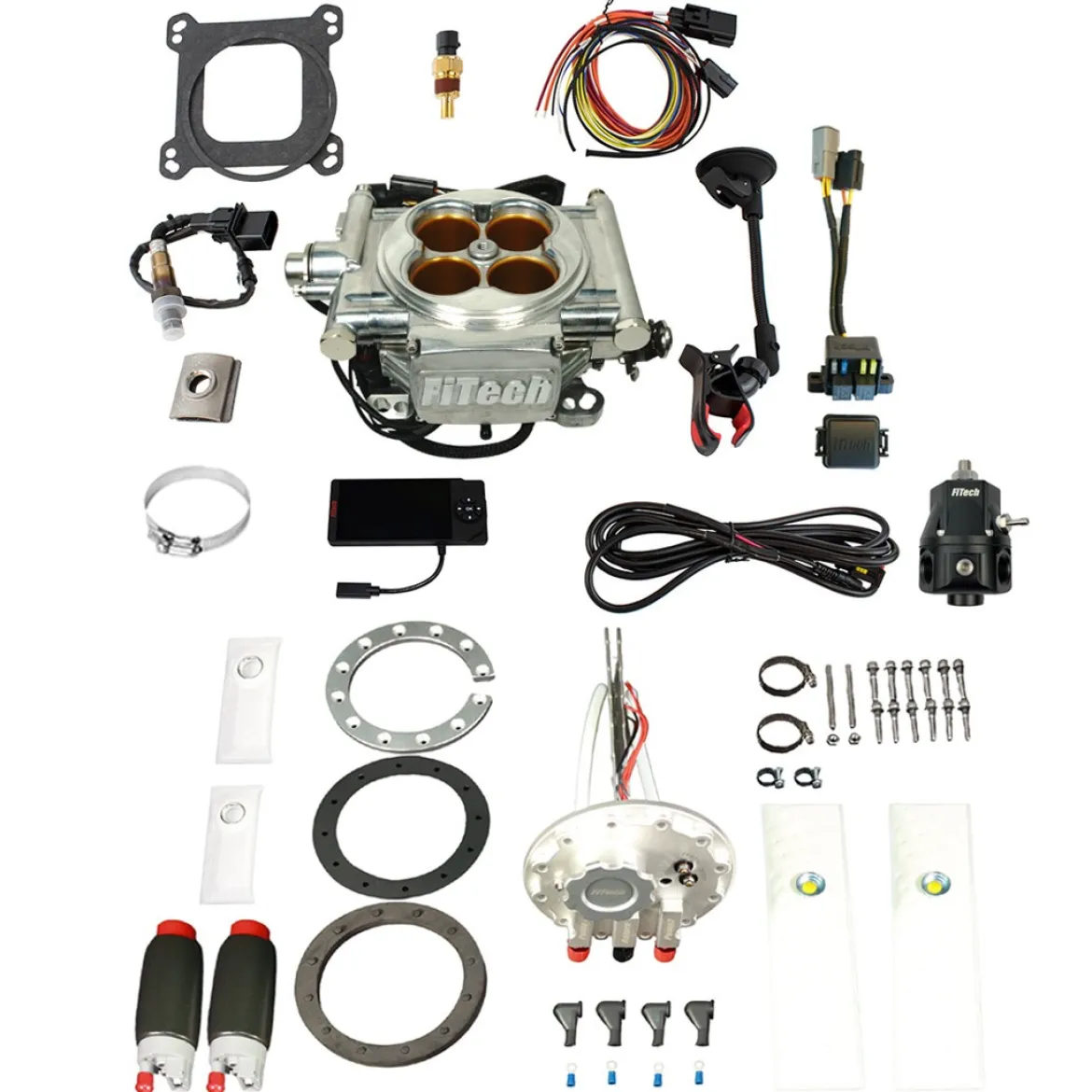

FiTech EFI 8 1200HP Bright Aluminum w/In-Tank Pump & Regulator (36413)

The FiTech EFI 8 1200HP Bright Aluminum w/In-Tank Pump & Regulator (36413) is a complete electronic fuel injection solution designed for high-performance engines. This system supports up to 1200 horsepower and is built to handle boosted or nitrous oxide applications. It features a throttle body style EFI with a 4-barrel square bore design, high-flow 80 lbs/hr injectors, and a dual pump in-tank fuel module. The system offers self-tuning capabilities with the option for user adjustments and includes a 4.5-inch display for monitoring and control.

KEY FEATURES AND BENEFITS:

• High Power Support: Supports up to 1200 horsepower, suitable for high-performance engines.
• Reliable Fuel Delivery: Includes a dual pump in-tank fuel module for consistent fuel supply.
• Adjustable Fuel Regulator: Features a high-pressure fuel regulator adjustable from 30 to 70 psi.
• Self-Tuning Capabilities: Simplifies setup with options for user adjustments for fine-tuning.
• Power Adder Compatibility: Compatible with boosted and nitrous oxide applications.
• Diverse Fuel Compatibility: Works with alcohol, gasoline, methanol, and flex fuel.
• Easy Monitoring: Includes a 4.5-inch display for straightforward monitoring and adjustments.

SPECIFICATIONS:

• Maximum Horsepower: 1200 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump: In-tank dual pump module
• Metering Style: Speed density (MAP-N)
• Throttle Body Flange: 4-barrel square bore
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Ensure your engine and fuel system are compatible with the FiTech 36413. Verify the fuel cell is suitable.
• Installation: Mount the throttle body to your intake manifold. Install the in-tank fuel pump module and connect the fuel lines.
• Wiring: Connect the wiring harness to the ECU, sensors (MAP, IAT, TPS, oxygen), and power supply.
• Sensor Installation: Install the provided oxygen sensor and other sensors as needed.
• Initial Setup: Power on the system and use the 4.5-inch display to input basic engine parameters.
• Self-Tuning: Allow the system to self-tune during initial operation. Monitor performance and adjust as needed.
• User Tuning (Optional): Use the provided Pro-tuning software for advanced tuning adjustments.
• Final Checks: Verify all connections and monitor system performance for proper operation.

BENEFITS OF USING THE FITECH EFI 8 1200HP BRIGHT ALUMINUM w/ IN-TANK PUMP & REGULATOR (36413):

• Improved Efficiency: Enhances fuel efficiency and performance compared to traditional carburetors.
• Precise Fuel Delivery: Ensures optimal engine operation with accurate fuel delivery.
• Simplified Setup: Self-tuning capabilities make installation easier.
• High-Horsepower Handling: Capable of managing high-horsepower and power adder applications.
• User-Friendly Interface: Easy monitoring and adjustments via the display.

FEATURES:

• Enhanced Atomization: Annular discharge design with 20 jet streams for improved fuel atomization.
• Boost Pressure Management: Built-in 2.5 BAR MAP sensor for handling increased boost pressures.
• Data-Logging Capabilities: Enables performance analysis through data logging.
• Advanced Tuning Software: Pro-tuning software allows for detailed user adjustments.
• High-Pressure Regulator: Adjustable high-pressure fuel regulator for optimal performance.
• In-Tank Dual Pump Module: Equipped with a 2-inch fill for efficient operation.
• Returnless Fuel System: Streamlined design for effective fuel delivery.
