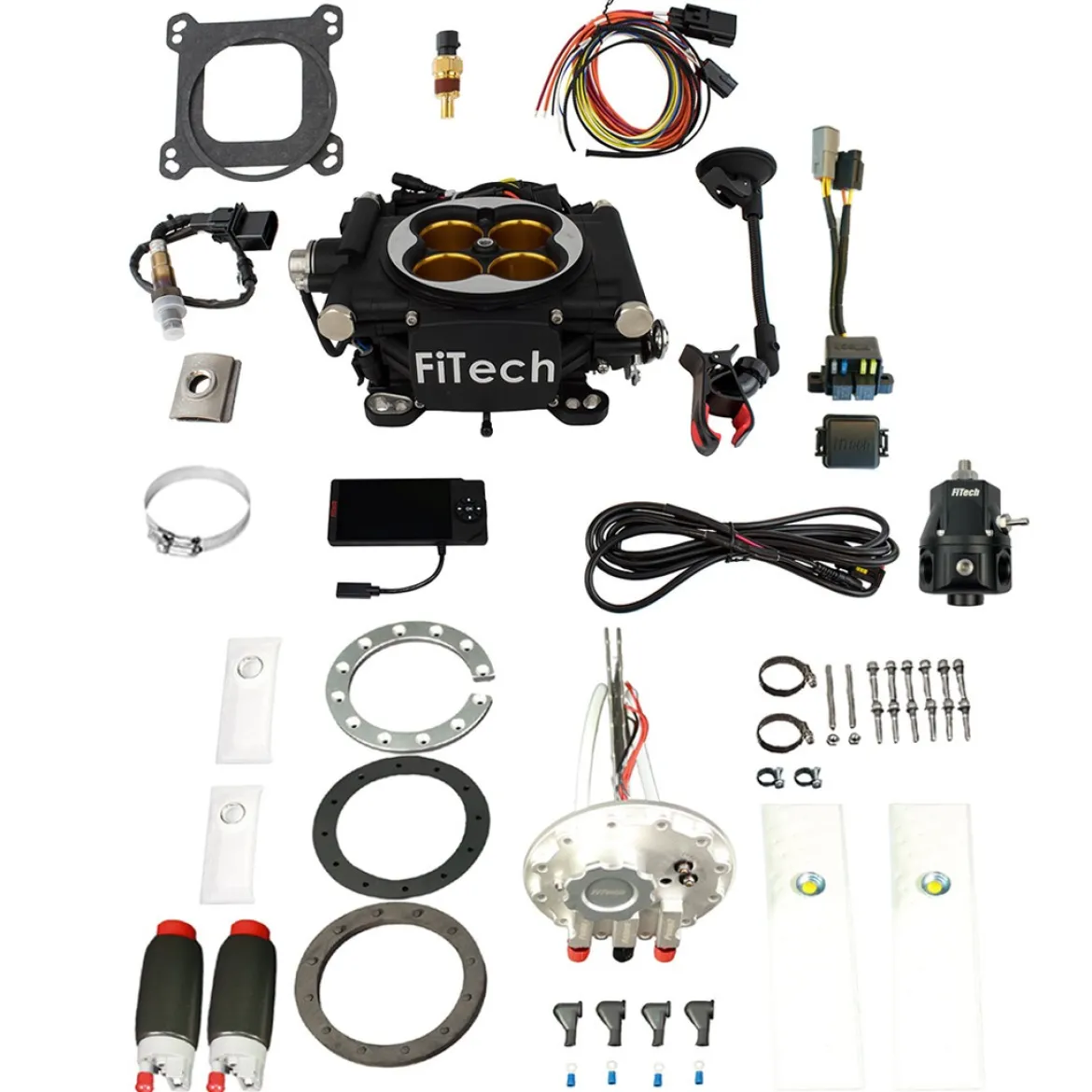

FiTech EFI 8 1200HP Matte Black w/In-tank Module & Regulator (36412)

The FiTech EFI 8 1200HP Matte Black w/In-tank Module & Regulator (36412) is a comprehensive, high-performance solution designed to replace traditional carburetors. This kit provides significant performance gains and improved drivability for high-horsepower engines. It supports up to 1200 HP and is compatible with boosted and nitrous oxide applications.

KEY FEATURES AND BENEFITS:

• Self-learning ECU: Simplifies tuning and optimizes engine performance.
• 850 CFM throttle body: Ensures adequate fuel delivery for high-demand applications.
• 80 lbs/hr injectors: Provides sufficient fuel flow for high horsepower.
• In-tank fuel pump: Reliable fuel pressure delivery.
• Fuel compatibility: Works with gasoline, alcohol, methanol, and E85 for flexibility.
• Complete sensor package: Includes O2, MAP, IAT, and TPS sensors for straightforward installation.
• Timing control compatibility: Allows for precise ignition adjustments.

SPECIFICATIONS:

• Maximum horsepower: 1200 HP
• Injection style: Throttle body
• Timing control compatible: Yes
• Power adder compatible: Yes (Boost/Nitrous oxide)
• ECU included: Yes
• Fuel pump included: Yes (In-tank)
• Metering style: Speed density (MAP-N)
• Throttle body mounting flange: 4-barrel square bore
• Venturi quantity: 4
• Venturi diameter: 43 mm
• Airflow rate: 850 CFM
• Injector size: 80 lbs/hr
• Fuel type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
• Installation of throttle body: Mount the FiTech 36412 throttle body onto the intake manifold using the provided hardware.
• Fuel system installation: Install the in-tank fuel pump, connect the fuel lines, and install the fuel pressure regulator.
• Sensor installation: Install the O2, MAP, IAT, and TPS sensors according to the provided instructions.
• Wiring harness connection: Connect the wiring harness to the ECU and all sensors, ensuring proper connections.
• ECU setup: Mount the ECU in a suitable location and connect the power and ground wires.
• Initial setup: Follow the manufacturer’s instructions to perform the initial ECU setup and calibration.
• Start and self-learning: Start the engine and allow the self-learning ECU to optimize the fuel and timing settings.
• Fine tuning: After the self-learning process, fine-tune the settings as needed.

BENEFITS OF USING THE FITECH EFI 8 1200HP MATTE BLACK W/IN-TANK MODULE & REGULATOR (36412):

• Improved engine performance: Increases horsepower and overall efficiency.
• Enhanced fuel efficiency: Offers better fuel economy compared to carbureted systems.
• Simplified tuning: The self-learning ECU makes adjustments easier.
• Reliable fuel delivery: In-tank pump ensures consistent pressure.
• Compatibility with various fuel types: Versatile for multiple applications.
• Easy conversion: Facilitates a straightforward upgrade from carburetor to EFI.
• Better drivability: Enhances overall driving experience.

FEATURES:

• 4-barrel square bore style throttle body: Optimizes airflow and performance.
• 4 individual 43mm venturis: Ensures efficient fuel distribution.
• Calibration module included: Allows for real-time tuning adjustments.
• Cast aluminum black finished throttle body: Durable and stylish design.
• Complete wiring harness: Simplifies installation process.
• All required sensors included: Ensures accurate engine management.
• Speed density (MAP-N) method: Provides precise fuel metering.
