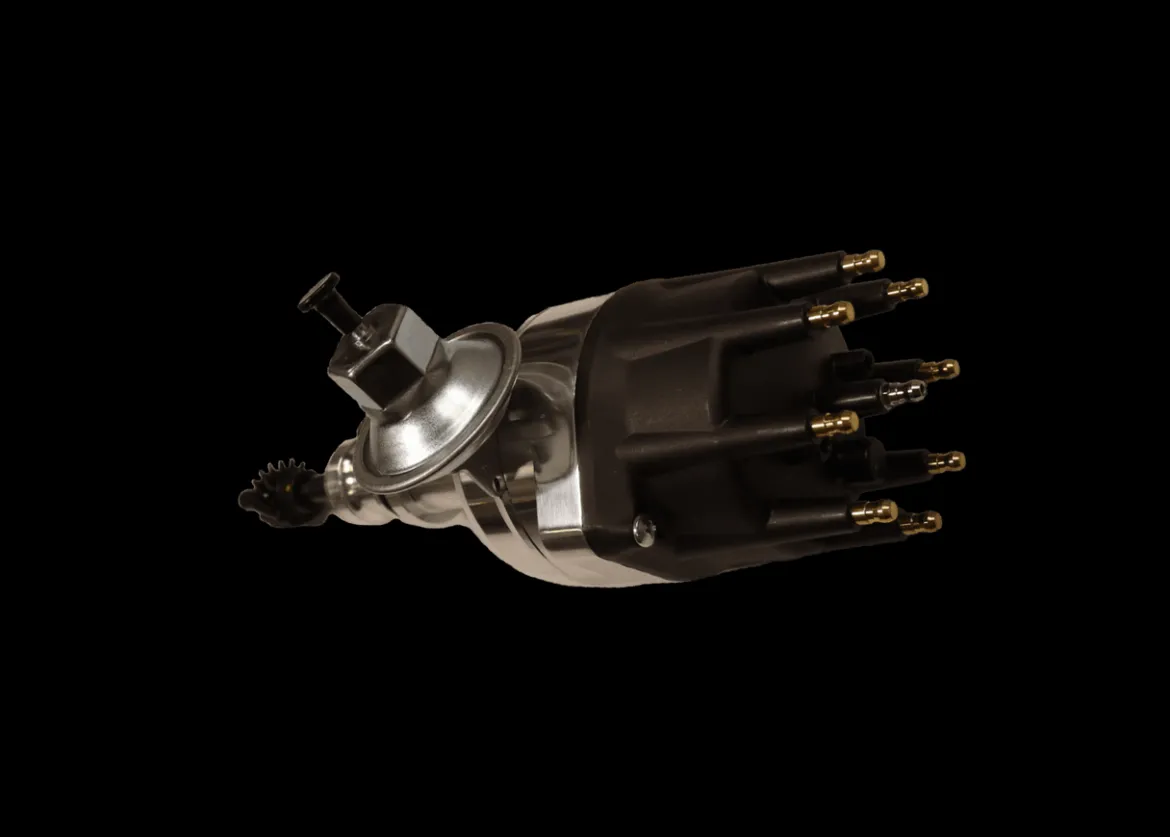

FiTech Ford 221/302 Mech. Adv. Distributor w/Vacuum (99040)

The FiTech Ford 221/302 Mech. Adv. Distributor w/Vacuum (99040) is designed for Ford 221, 260, 289, and 302 cubic inch engines. It offers precise ignition timing control for performance applications, requiring either an EFI system with a 2-wire magnetic pickup trigger or a CDI ignition box. This distributor allows for adjustable mechanical and vacuum advance, enabling users to fine-tune ignition curves for optimal performance and efficiency.

KEY FEATURES AND BENEFITS:

• Requires either an EFI system with a 2-wire magnetic pickup input or a CDI ignition box for operation.
• Adjustable mechanical and vacuum advance systems allow for precise timing control.
• Mechanical advance can be locked out for full electronic timing control by EFI systems.
• CNC-machined billet aluminum housing provides durability and precise fit.
• High-output magnetic pickup and reluctor ensure a strong and stable trigger signal.
• Hardened iron drive gear offers extended service life; steel gears available for billet steel camshafts.
• Compact design fits in tight engine compartments.
• 3-year limited warranty.

SPECIFICATIONS:

• Engine Compatibility: Ford 221, 260, 289, 302 cubic inch engines
• Housing Material: CNC-machined 6061-T6 aluminum
• Advance Type: Mechanical and vacuum, adjustable
• Trigger Style: Magnetic, 2-wire pickup
• Distributor Cap Style: Male/HEI
• Distributor Gear Material: Iron (steel optional)
• Weight: 6.2 lbs
• Dimensions: 6.9 × 18.4 × 7.2 in

HOW TO USE:

• Installation: Install the FiTech 99040 distributor into the engine, ensuring proper gear engagement.
• Wiring: Connect the 2-wire magnetic pickup to the appropriate input on your EFI system or CDI box.
• Timing Adjustment:
  • For mechanical advance: Adjust the springs and stop bushings to achieve the desired timing curve.
  • For vacuum advance: Connect a vacuum line and adjust the canister as needed.
• Lockout (EFI): If using EFI, lock out the mechanical advance for electronic timing control.
• Testing: Verify timing with a timing light and make any necessary adjustments.

BENEFITS OF USING THE FITECH FORD 221/302 MECH. ADV. DISTRIBUTOR W/VACUUM (99040):

• Improved ignition timing accuracy for enhanced engine performance.
• Adjustable timing curves allow for optimization of power and fuel efficiency.
• Reliable trigger signal ensures consistent ignition.
• Durable construction provides long-lasting performance.
• Compatibility with EFI and CDI systems increases versatility.

FEATURES:

• Dual cap hold-down design allows screw or quarter turn caps.
• Adjustable slip collar mounting flange for engines with modified deck heights.
• Advance weight pins are staked and TIG welded to the plate.
• Nylon pads ensure smooth advance weight operation.
• High quality cap and rotor made of 30% glass filled polyester (PBT).
• Brass cap contacts and stainless steel rotor spring.
• Vacuum advance lockout plate is included.
• Centerless ground shaft.
