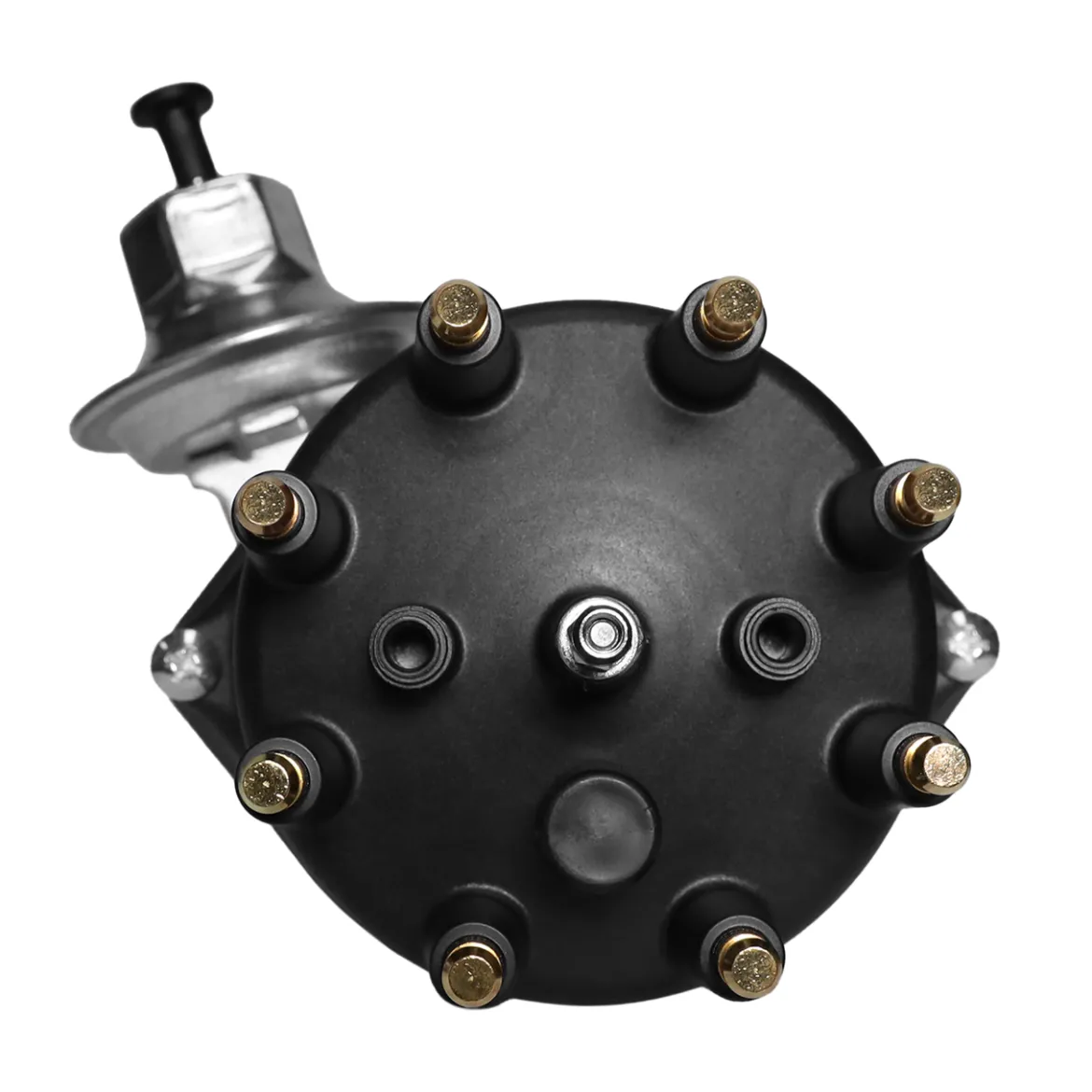

FiTech Ford 332 – 428 FE RTR Distributor (99045)

The FiTech Ford 332-428 FE RTR Distributor (99045) is engineered for Ford 332-428 FE engines, offering a simplified ignition solution for both performance upgrades and stock replacements. This distributor eliminates the need for an external ignition control box, streamlining installation with a straightforward 3-wire connection. Its adjustable vacuum and mechanical advance features allow for precise tuning of engine timing, optimizing performance across various driving conditions.

KEY FEATURES AND BENEFITS:

• Simplified Installation: The built-in ignition module eliminates the need for an external control box, simplifying the setup process.
• Adjustable Timing: Both vacuum and mechanical advance are adjustable, allowing for fine-tuning of engine timing for optimal performance.
• Reliable Triggering: The high-output magnetic pickup and large paddle wheel reluctor provide a strong and consistent trigger signal.
• Durable Construction: CNC-machined aluminum housing and high-quality cap and rotor materials ensure long-lasting performance.
• Direct Replacement: Designed to replace older point-style distributors or function within crate engines.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Part Number: 99045
• Engine Compatibility: Ford 332-428 FE Engines
• Trigger Style: Magnetic
• Advance Type: Vacuum and Mechanical (Adjustable)
• Ignition Module: Built-In
• Distributor Cap Style: Male/HEI
• Distributor Cap Type: Small Cap
• Distributor Gear Material: Iron
• Housing Material: Aluminum
• Distributor Gear Rotation: Standard
• Distributor Cap Color: Black
• Housing Finish: Natural

HOW TO USE:

1. Disconnect Battery: Remove the negative terminal of the vehicle’s battery.
2. Remove Old Distributor: Take out the existing distributor, noting the rotor position for reference.
3. Install New Distributor: Align and install the FiTech 99045 distributor with the previously noted rotor position.
4. Connect Wiring: Attach the 3 wires: power, ground, and tach signal.
5. Adjust Timing: Modify the mechanical and vacuum advance as needed for optimal engine performance.
6. Reconnect Battery: Reattach the vehicle’s battery.
7. Verify Timing: Use a timing light to confirm ignition timing and make any necessary adjustments.

BENEFITS OF USING FITECH FORD 332-428 FE RTR DISTRIBUTOR (99045):

• Improved Engine Performance: Adjustable timing allows for optimized performance.
• Simplified Installation: Built-in module reduces installation complexity.
• Increased Reliability: High-quality components ensure consistent ignition.
• Direct Replacement: Designed as a direct replacement for older systems.
• Reduced Engine Bay Clutter: Eliminates the need for an external ignition box, keeping the engine bay neat.

FEATURES:

• Centerless ground shaft for smooth operation.
• Sealed roller bearing and Oil-Lite bushing for extended life.
• High-output magnetic pickup for strong signal.
• Brass cap contacts and stainless steel rotor spring.
• Glass fiber reinforced polyester (PBT) cap and rotor.
• Welded and plated mechanical advance.
• 3-year limited warranty.
