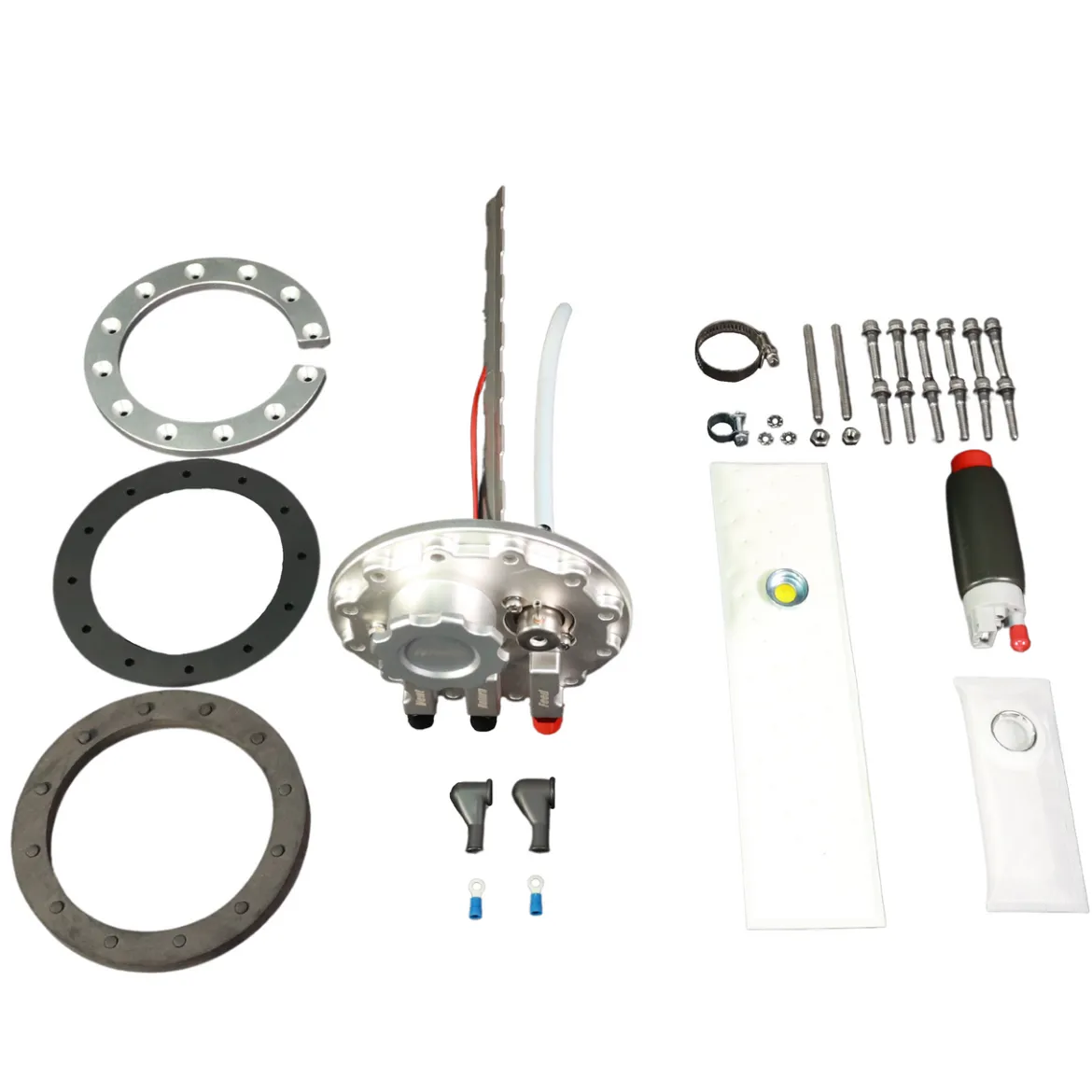

FiTech In Tank Fuel Pump Returnless Module With 2-Inch Fill (50019)

The FiTech In Tank Fuel Pump Returnless Module With 2-Inch Fill (50019) is designed to streamline fuel delivery for high-performance applications. This module allows for the installation of an electric fuel pump directly within your fuel cell or custom fuel tank, offering a reliable and efficient fuel supply. With a focus on adaptability and performance, the 50019 supports engines up to 800 HP and is compatible with E85 fuel.

KEY FEATURES AND BENEFITS:

• High Power Support: Supports up to 800 horsepower engines.
• Ample Fuel Flow: 340 LPH electric fuel pump provides sufficient fuel delivery.
• Consistent Fuel Pressure: Internal regulator maintains a steady 58 psi for returnless systems.
• Adjustable Design: Fits tanks with depths ranging from 7 to 16 inches.
• Secure Installation: CNC-machined billet aluminum top ensures reliability.
• Includes Filler Assembly: Comes with a 2-inch filler assembly and sealed cap.
• Secure Connections: -6AN ORB fittings for reliable fuel line connections.
• Fuel Compatibility: Works with both gasoline and E85 fuel.
• Protective Filters: Includes filters to safeguard the fuel system from debris.

SPECIFICATIONS:

• Manufacturer Part Number: 50019
• Fuel Pump Type: Electric In-tank
• Flow Rate: 340 LPH (90 GPH)
• Voltage: 12V
• Fuel Pressure Regulator: Internal, 58 psi
• Inlet/Outlet Size: -6 AN O-ring
• Tank Depth Compatibility: 7 to 16 inches
• Fuel Compatibility: Gasoline, E85
• Compatibility: Direct fit into tanks offered by TANKS Inc. and most fuel cells with a 12-bolt flange.

HOW TO USE:

• Preparation: Ensure the fuel tank is clean and empty.
• Installation: Mount the CNC-machined billet top to the fuel tank using the 12-bolt flange or a custom mounting method.
• Pump Adjustment: Adjust the pump assembly to the appropriate depth for your tank (7-16 inches).
• Filter Installation: Attach the provided filter sock to the pump inlet.
• Fitting Connection: Connect the -6AN ORB fittings to the feed and return outlets.
• Electrical Connection: Securely connect the terminals to the fuel pump wiring.
• Filler Assembly: Install the 2-inch filler assembly and cap.
• Fuel Line Routing: Route the fuel lines to the engine, ensuring proper connections and secure fittings.
• Testing: Perform a fuel pressure test to ensure proper operation.

BENEFITS OF USING THE FITECH IN TANK FUEL PUMP RETURNLESS MODULE WITH 2-INCH FILL (50019):

• Reliable Solution: Provides an efficient in-tank fuel pump setup.
• Simplifies EFI Conversions: Eases the upgrade process for high-horsepower fuel systems.
• Reduces Fuel Starvation Risk: Minimizes the chances of pump overheating.
• Organized Setup: Offers a clean and tidy fuel system layout.
• Consistent Fuel Pressure: Ensures optimal engine performance.

FEATURES:

• Internal 58-psi Regulator: Designed for returnless fuel systems.
• Dual Filter Sock Sizes: Provides options for different fuel conditions.
• Parallel Port Positions: Facilitates easy fuel line routing.
• Vent Port: Positioned for convenient routing near the fill tube.
• Cut-to-Fit Bracket: Secures the pump in place.
• 2-Inch Fill Neck and Cap: Allows for easy filling.
• Secure Electrical Terminals: Ensures safe and reliable electrical connections.
