FiTech Medium Profile Black 6.25 Qts Engine Oil Pan (130202)

The FiTech Medium Profile Black 6.25 Qts Engine Oil Pan (130202) is engineered to facilitate LS engine swaps in a variety of GM muscle cars and trucks. This medium-profile oil pan offers a 6.2-quart total capacity (including filter) and is constructed from durable cast aluminum with a sleek black finish. Designed to provide necessary clearance for stroker engines, it maintains OEM compatibility for oil filters and related components.

KEY FEATURES AND BENEFITS:

• Medium profile design: Optimized for chassis with limited clearance, making it suitable for a wide range of LS swap applications.
• 6.2 quart capacity: Provides ample oil capacity for proper engine lubrication, including the filter capacity.
• Cast aluminum construction: Offers strength and durability while maintaining a lightweight profile.
• Stroker engine clearance: Designed to accommodate stroker crankshafts up to 3.62 inches.
• OEM compatibility: Maintains compatibility with OEM oil filters, dipsticks, and windage trays (with modifications).

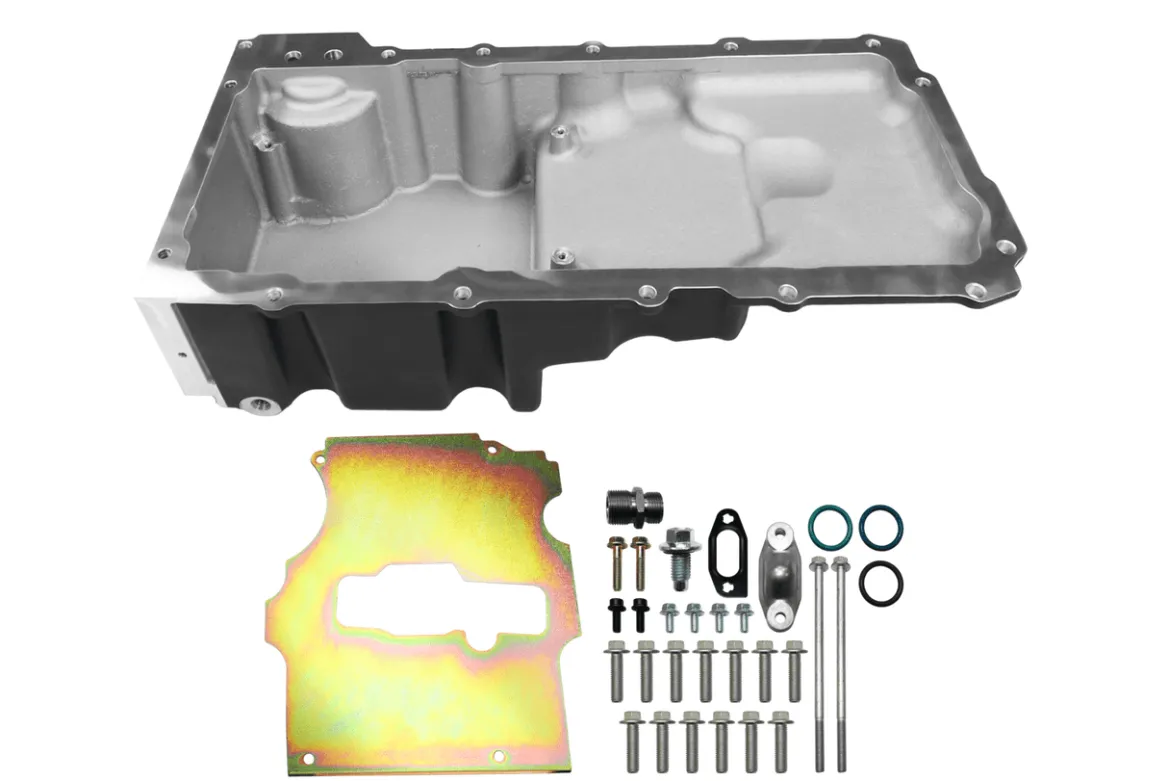

• Complete kit: Includes sump baffle, pick-up tube, sump plug, oil filter stud, and oil passage cover.

SPECIFICATIONS:

• Part Number: 130202
• Sump Style: Wet
• Oil Pan Style: Street/Strip
• Sump Location: Rear
• Oil Pan Capacity: 6.20 quarts (total, including filter)
• Sump Oil Capacity: 5.7 quarts
• Stroker Clearanced: Yes
• Maximum Stroke with OE Rod: 3.620 inches
• Dipstick Provision: No
• Dipstick Included: No
• Oil Pan Depth: 5.460 inches
• Oil Pan Material: Aluminum
• Oil Pan Color: Black
• Baffled: Yes
• Compatibility: Most 1955-1987 GM muscle cars and trucks, including:
  • 1967-1969 F-body (Camaro/Firebird)
  • 1982-1992 F-body
  • 1968-1974 X-body
  • 1978-1987 G-body
  • 1964-1972 A-body applications
  • 1960-1972 C-10 Trucks
• Oil Filter Compatibility: AC Delco PF48 or PF48E, Mobil M1-113, Wix 57060, and K&N HP-1017

HOW TO USE:

1. Verify engine compatibility: Ensure your LS engine and vehicle chassis are compatible with the FiTech 130202 oil pan.
2. Prepare the engine: Remove the existing oil pan and clean the engine block surface.
3. Check for dipstick plug: If your engine has a plug in the dipstick hole, remove it.
4. Install the pickup tube: Attach the included pickup tube to the oil pump.
5. Modify windage tray (if needed): If using an OEM windage tray, modify it to clear the pickup tube. Use GM P/N 12558253.
6. Apply gasket sealer: Apply a suitable gasket sealer to the oil pan flange.
7. Install the oil pan: Carefully position the oil pan and secure it with the provided hardware.
8. Install the dipstick tube: Use an OEM LS3 dipstick tube (GM 12625031) and dipstick (GM 12669528).
9. Install oil filter: Use a compatible oil filter.
10. Add oil: Add the correct amount of oil, verifying the level with the dipstick.

BENEFITS OF USING THE FITECH MEDIUM PROFILE BLACK 6.25 QTS ENGINE OIL PAN (130202):

• Enhanced clearance: Allows for LS engine swaps in vehicles with limited space.
• Increased oil capacity: Provides better engine lubrication and cooling.
• Simplified installation: Designed for OEM compatibility, reducing installation complexity.
• Reliable construction: Cast aluminum build ensures longevity.
• Stroker engine capable: Allows for more engine modifications.

FEATURES:

• Internal rotating assembly clearance patterned after a GM 98-02 LS1 oil pan.
• Includes a sump baffle to control oil slosh.
• OEM oil cooler port provision.
• OEM engine NVH suppression.
• OEM flange gasket and sealing.
• Proper structural rigidity.
• OEM bell-housing attachments.
• Black painted finish.
