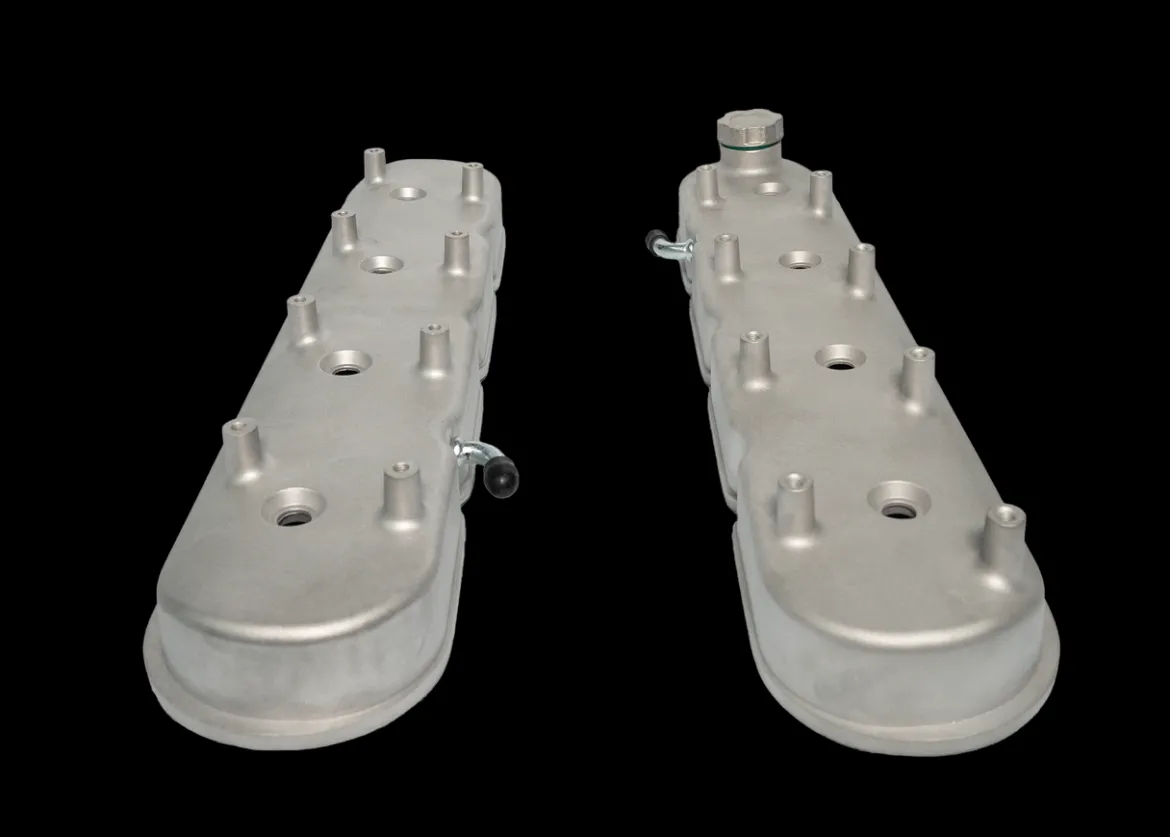

FiTech Plus LS Satin Valve Covers w/ Coil Mounts (131001)

Elevate the style and functionality of your LS engine bay with the FiTech Plus LS Satin Valve Covers w/ Coil Mounts (131001). Designed for enthusiasts seeking a clean and performance-oriented aesthetic, these valve covers offer a significant visual upgrade while providing practical features. Crafted from durable cast aluminum, the satin finish delivers a raw, yet refined look that complements a variety of engine styles. These valve covers are specifically engineered to accommodate Gen 5 LS3 coils with integrated mounting bosses, ensuring a secure and angled coil placement. The tall design provides ample clearance for most high-lift valve train setups, making them suitable for both stock and modified engines. This pair of valve covers comes complete with essential components, including an o-ringed oil filler cap, gaskets, and all the necessary mounting hardware for both the covers and the coils, simplifying the installation process.

KEY FEATURES AND BENEFITS:

• Enhanced Engine Bay Aesthetics: Instantly upgrades the look of your LS engine with a sleek satin finish, providing a cleaner and more organized appearance.
• Integrated Coil Mounts: Specifically designed with mounting bosses for Gen 5 LS3 coils (72mm bolt spacing), ensuring a precise and secure fit.
• High-Lift Valve Train Compatibility: The tall design offers increased clearance, accommodating most aftermarket valve train components with lifts under 0.700 inches.
• Complete Installation Package: Includes an o-ringed oil filler cap, valve cover gaskets, and mounting hardware for both the covers and the coils, facilitating a straightforward installation.
• Durable Cast Aluminum Construction: Provides excellent durability and heat dissipation for long-lasting performance.
• Baffled Design: Incorporates internal baffling to help control oil splash and maintain proper lubrication.

SPECIFICATIONS:

• Part Number: 131001
• Product Line: FiTech Plus
• Product Type: LS Valve Covers with Coil Mounts
• Engine Compatibility: LS-Based Engines
• Finish: Satin (Raw Aluminum)
• Material: Cast Aluminum
• Valve Cover Height: 3.00″ (76.2mm) without coils
• Coil Mounting: Gen 5 LS3 Bolt Spacing (72mm)
• Valve Cover Mounting Style: OEM Style Retentioned Bolts/Pattern (Centerbolt)
• Valve Cover Top Style: Coil Mounts, No Cover
• Baffled: Yes
• Grommets Included: Yes
• Mounting Hardware Included: Yes
• Quantity: Pair

HOW TO USE:

1. Preparation: Ensure the engine is cool and the ignition is off. Gather all necessary tools and the included FiTech Plus LS Valve Covers, gaskets, and mounting hardware.
2. Remove Existing Valve Covers: Carefully remove the existing valve covers from your LS engine, taking note of the location of any hoses or wires that may be attached. Clean the cylinder head surfaces to ensure a proper seal for the new gaskets.
3. Install New Gaskets: Place the provided valve cover gaskets onto the cylinder head surfaces. Ensure they are properly aligned with the bolt holes.
4. Position the Valve Covers: Carefully position the FiTech Plus LS Valve Covers onto the cylinder heads, aligning the bolt holes with the gaskets and the cylinder head.
5. Install Valve Cover Bolts: Install the provided valve cover bolts and tighten them to the manufacturer’s recommended torque specifications in the correct sequence to ensure even sealing.
6. Mount Coils (If Applicable): If using Gen 5 LS3 coils, align them with the mounting bosses on the valve covers and secure them using the included coil mounting hardware.
7. Install Oil Filler Cap: Place the included o-ringed oil filler cap into the designated opening on one of the valve covers.
8. Reattach Components: Reconnect any hoses or wires that were removed during the initial disassembly.
9. Verification: Double-check all connections and ensure that the valve covers and coils (if installed) are securely mounted.

BENEFITS OF USING FITECH PLUS LS SATIN VALVE COVERS W/ COIL MOUNTS (131001):

• Improved Engine Aesthetics: Significantly enhances the visual appeal of your engine bay, adding a touch of style and sophistication.
• Direct Fit for LS Engines: Specifically designed for LS-based engines, ensuring proper fitment and functionality.
• Secure Coil Mounting: Provides a dedicated and stable mounting solution for Gen 5 LS3 coils, preventing movement and potential damage.
• Accommodation for Performance Parts: The tall design allows for the use of aftermarket valve train components, making them suitable for performance builds.
• Simplified Installation: The inclusion of gaskets and mounting hardware makes the installation process more convenient.
• Increased Durability: Constructed from cast aluminum for long-lasting performance and resistance to engine bay conditions.

FEATURES:

• Satin Finish: Offers a raw, unpolished aluminum look that complements various engine bay styles.
• Integrated Gen 5 LS3 Coil Mounts: Specifically designed with 72mm bolt spacing for secure coil attachment.
• Tall Profile: Provides necessary clearance for high-lift camshafts and rocker arms.
• O-Ringed Oil Filler Cap Included: Ensures a tight seal and prevents oil leaks.
• Baffled Interior: Helps to separate oil from the crankcase ventilation system.
• Includes Necessary Gaskets: Provides a proper seal between the valve covers and cylinder heads.
• Comes with Coil Mounting Hardware: Facilitates the installation of Gen 5 LS3 coils.
• Sold as a Pair: Includes valve covers for both the left and right sides of the engine.
