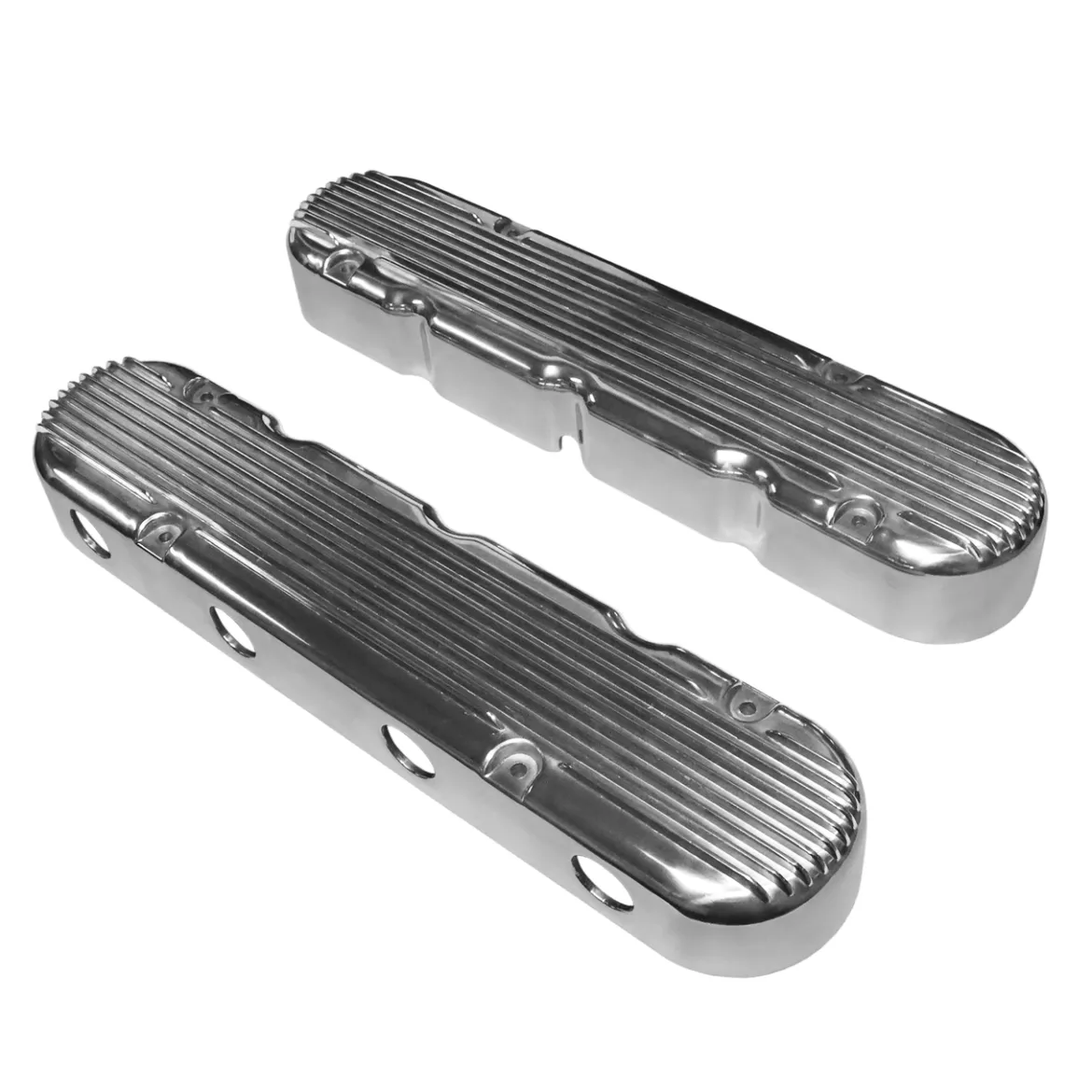

FiTech Polished Valve Covers w/Coil Mounts/Finned Covers (131102)

Elevate the visual appeal of your LS-based engine with the FiTech Polished Valve Covers w/Coil Mounts/Finned Covers (131102). These meticulously crafted valve covers offer a significant aesthetic upgrade, transforming your engine bay with their sleek, polished finish. Designed with both form and function in mind, these valve covers are a perfect choice for automotive enthusiasts seeking to enhance the look of their vehicle without compromising on compatibility or performance. The two-piece design incorporates classic finned top style coil covers, adding a touch of timeless muscle car aesthetics to modern LS powerplants.

KEY FEATURES AND BENEFITS:

• Enhanced Aesthetics: The polished finish of these cast aluminum valve covers dramatically improves the appearance of your engine bay, providing a clean and custom look that stands out.
• Broad LS Engine Compatibility: Designed to fit a wide range of LS-based engines, ensuring seamless integration with your existing setup.
• Versatile Coil Mounting: Accommodates both straight (Gen 1 LS1 bolt spacing 65mm) and angled (Gen 5 LS3 bolt spacing 72mm) coil mounting configurations, offering flexibility for different coil types.
• Tall Profile Design: The increased height of these valve covers provides ample clearance for most aftermarket high-lift valve train components, up to 0.700 inches of lift.
• Complete Installation Package: Includes an O-ringed oil filler cap, high-quality gaskets, and all necessary mounting hardware for both the valve covers and the coils, simplifying the installation process.
• Durable Construction: Made from cast aluminum, these valve covers are built to withstand the rigors of the engine environment, offering long-lasting performance and style.
• Baffled Design: Incorporates internal baffling to help prevent oil splash and ensure proper ventilation, contributing to engine cleanliness and performance.

SPECIFICATIONS:

• Product Name: FiTech Plus LS Valve Covers
• Part Number: 131102
• Valve Cover Mounting Style: OEM Style Retentioned Bolts/Pattern
• Valve Cover Height: 4.12 inches (104.6mm) Overall
• Valve Cover Top Style: Finned Coil Cover
• Valve Cover Material: Cast Aluminum
• Finish: Polished
• Coating Type: Raw, Polished
• Baffled: Yes
• Grommets Included: Yes
• Mounting Hardware Included: Yes
• Quantity: 2 Valve Covers, 2 Coil Covers
• Compatibility: Designed for LS-based engines (Gen 1 LS1, Gen 2 LS6, Gen 3 LS2, LS3, LS7, LSA, etc.)

HOW TO USE:

• Preparation: Ensure the engine is cool and the vehicle is safely supported. Gather all necessary tools, including sockets, wrenches, and potentially a torque wrench.
• Removal of Old Valve Covers: Carefully remove the existing valve covers from your LS engine. This typically involves disconnecting any wiring or hoses attached to the covers and then unbolting them. Keep track of the bolt locations.
• Clean Mating Surfaces: Thoroughly clean the engine cylinder head mating surfaces to ensure a proper seal with the new gaskets. Remove any old gasket material or debris.
• Install New Gaskets: Place the provided new gaskets onto the cylinder head mating surfaces. Ensure they are correctly aligned.
• Position New Valve Covers: Carefully position the FiTech Plus LS Valve Covers onto the cylinder heads, aligning the bolt holes.
• Install Valve Cover Bolts: Install the provided valve cover bolts. Tighten them gradually in a crisscross pattern to the manufacturer’s recommended torque specification.
• Mount Coils: Attach your LS coils to the coil mounting bosses on the new valve covers. Utilize the appropriate bolt spacing (65mm or 72mm) based on your coil type. Secure them with the included mounting hardware.
• Install Oil Filler Cap: Install the provided O-ringed oil filler cap onto the designated valve cover.
• Reconnect Components: Reconnect any wiring or hoses that were removed during the old valve cover removal process.
• Final Check: Double-check all connections and ensure everything is properly secured. Start the engine and inspect for any leaks.

BENEFITS OF USING FITECH POLISHED VALVE COVERS W/COIL MOUNTS/FINNED COVERS (131102):

• Significant Aesthetic Improvement: Instantly enhances the visual appeal of your engine bay, adding a touch of style and sophistication.
• Increased Valve Train Clearance: The tall design allows for the installation of performance camshafts and rocker arm setups with higher lift, opening up possibilities for increased engine power.
• Flexible Coil Mounting: Accommodates a wider range of LS coil types, simplifying engine swaps or upgrades.
• Reliable Seal: The included high-quality gaskets and proper installation ensure a tight and reliable seal, preventing oil leaks.
• Easy Installation: The inclusion of all necessary hardware makes the installation process relatively straightforward for both DIY enthusiasts and professional mechanics.
• Enhanced Engine Bay Presentation: Contributes to a cleaner and more organized engine bay appearance, which is particularly beneficial for car shows or simply personal pride.
• Durable and Long-Lasting: The cast aluminum construction ensures the valve covers can withstand the heat and vibrations of the engine environment for years to come.

FEATURES:

• Polished Aluminum Finish: Provides a brilliant and reflective surface that enhances the engine’s appearance.
• Finned Top Style Coil Covers: Adds a classic muscle car aesthetic to the modern LS engine design.
• Dual Coil Mounting Bosses: Supports both 65mm and 72mm coil bolt spacing for wide compatibility.
• O-Ringed Oil Filler Cap: Ensures a secure and leak-free seal for the oil fill port.
• Included Gaskets: Provides new, high-quality gaskets for a proper seal between the valve covers and cylinder heads.
• Complete Mounting Hardware: Includes all necessary bolts and fasteners for installing the valve covers and coils.
• Internal Baffling: Helps to manage oil splash and promote proper crankcase ventilation.
