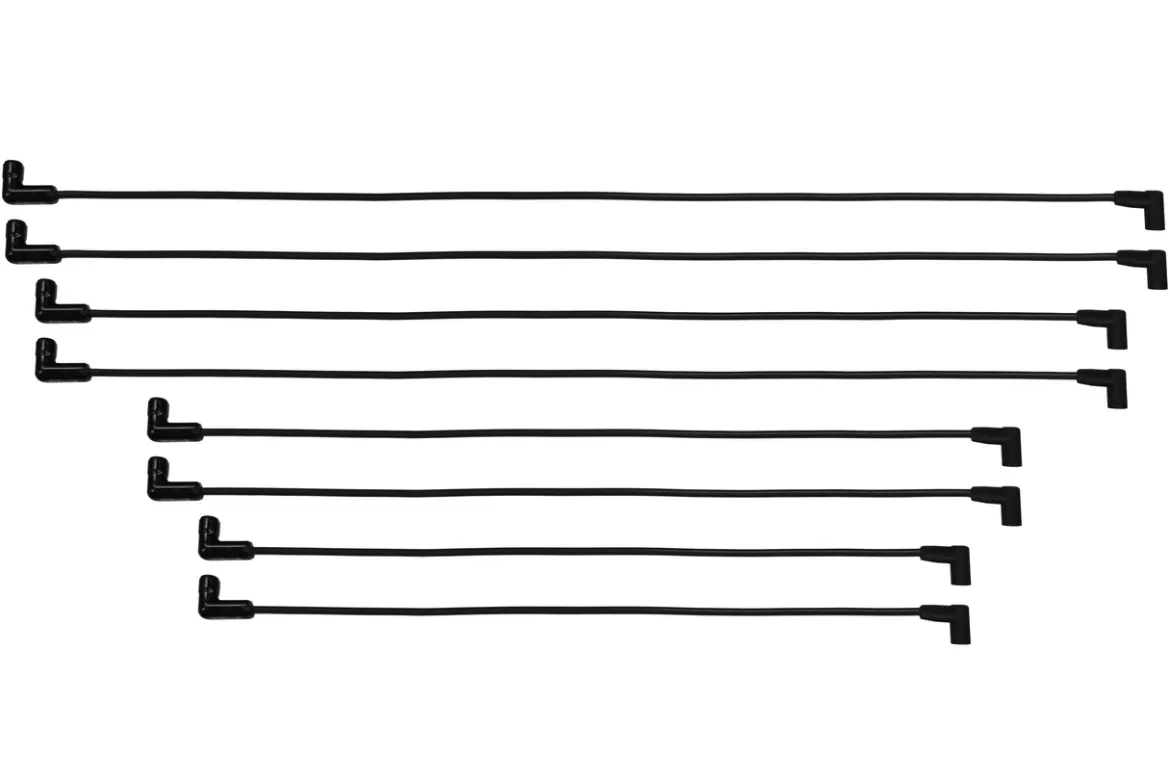

FiTech SBC (UH) HEI Dist End 90/90 Spark Plug Wire Kit (90014)

The FiTech SBC (UH) HEI Dist End 90/90 Spark Plug Wire Kit (90014) is engineered for Small Block Chevy engines, offering reliable ignition performance in high-temperature environments. This kit features 8mm wires with ceramic boots, designed to withstand extreme heat, making it ideal for applications with close-tolerance headers. The kit includes extra unterminated wires and tools, allowing for custom fitment and precise installation.

KEY FEATURES AND BENEFITS:

• High-Temperature Protection: Ceramic boots rated to 2,000 degrees F and 8mm wires rated to 600+ degrees F.
• Enhanced Performance: Optimized energy delivery and effective RFI/EMI suppression.
• Versatility: Includes extra wires and tools for custom fitment.
• Reliability: Stainless steel terminals and a 3-year limited warranty.
• Specific Design: Intended for Small Block Chevy (SBC) engines with HEI distributors and under-header routing.

SPECIFICATIONS:

• Product: FiTech 90014 Go Spark Ceramic Spark Plug Wire Kit
• Application: Small Block Chevy (SBC) engines
• Distributor Type: HEI (High Energy Ignition)
• Wire Diameter: 8mm
• Boot Material: Ceramic (spark plug), Silicone (distributor)
• Boot Ends: 90/90 degree
• Wire Core: Ferro-Spiral
• Resistance: 350 Ohms/Ft
• Temperature Rating: 2,000 degrees F (boots), 600+ degrees F (wires)
• Compatibility: Small Block Chevy Engines with HEI distributors.
• RFI Suppression: Yes

HOW TO USE:

• Disconnect the negative terminal of the vehicle’s battery.
• Carefully remove the old spark plug wires from the distributor and spark plugs, noting the firing order.
• Select the appropriate FiTech 90014 wires for each cylinder, ensuring proper length and routing.
• If necessary, use the included crimping tool to terminate the extra unterminated wires to the desired length.
• Apply the included silicone grease to the inside of the boots.
• Connect the distributor end of each wire to the corresponding terminal on the HEI distributor.
• Connect the spark plug end of each wire to the corresponding spark plug.
• Use the included wire separators to organize and secure the wires.
• Reconnect the negative terminal of the battery.
• Start the engine and verify proper operation.

BENEFITS OF USING THE FITECH SBC (UH) HEI DIST END 90/90 SPARK PLUG WIRE KIT (90014):

• Improved ignition reliability in high-temperature conditions.
• Reduced risk of boot failure due to heat.
• Customizable fitment for various engine configurations.
• Minimized RFI/EMI interference.
• Long-term performance and durability.

FEATURES:

• 8mm low-resistance Ferro-Spiral core wires.
• Ceramic spark plug boots for extreme heat protection.
• Stainless steel spark plug terminals.
• Includes extra unterminated wires and crimping tool.
• Numbered wire labels for organized installation.
• Wire separators for secure routing.
• 55 inch unterminated coil wire included.
• 3 year limited warranty.
