FiTech SBC(UH) Dragster HEI Dist End 90/90 Spark Plug Wire Kit (90018)

The FiTech SBC(UH) Dragster HEI Dist End 90/90 Spark Plug Wire Kit (90018) is engineered for small block Chevy (SBC) engines requiring high-temperature protection and reliable spark delivery. This set provides 8mm spiral core wires with ceramic spark plug boots, designed to withstand extreme heat. It offers both pre-made wires and custom fitment options, ensuring compatibility with various engine configurations.

KEY FEATURES AND BENEFITS:

• High-Temperature Ceramic Spark Plug Boots: Protect against header heat.
• 8mm Spiral Core Wires: Reduce RFI/EMI and improve spark delivery.
• Pre-Made Wires: Simplify installation, while extra unterminated wires allow for custom fitment.

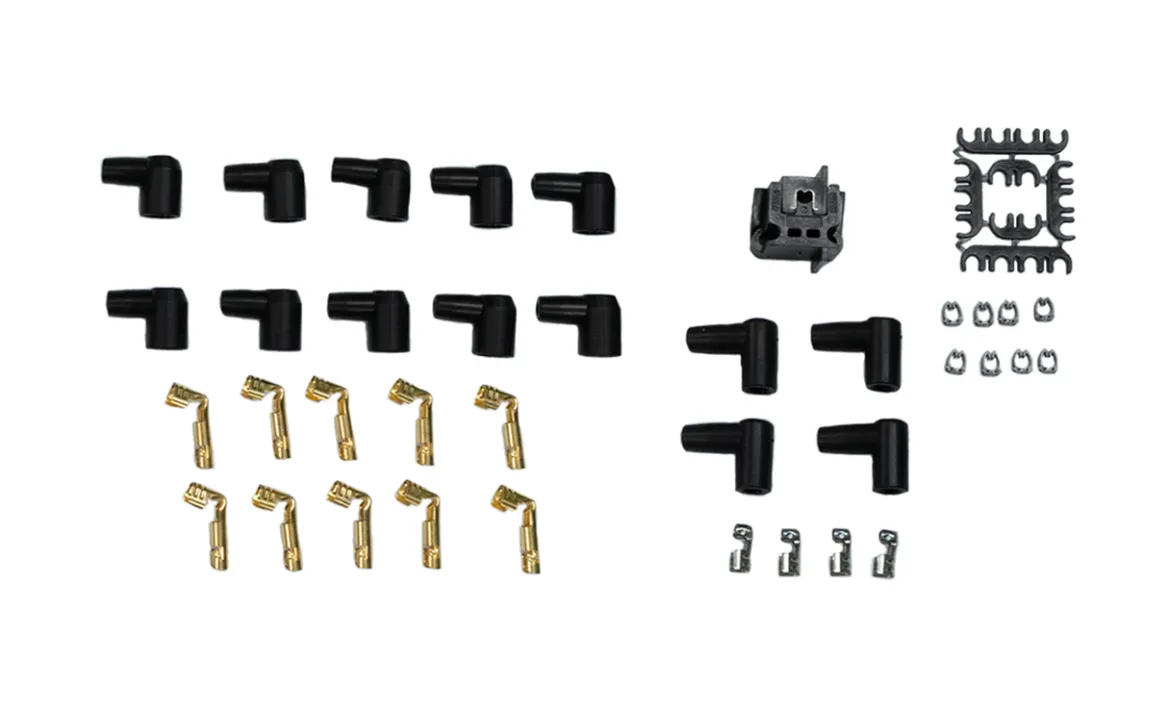

• Complete Installation Kit: Includes crimping tool, boots, terminals, and wire separators.
• Designed for Under-Header Routing: Compatible with dragster HEI distributors.

SPECIFICATIONS:

• Wire Diameter: 8mm
• Conductor: Spiral wound wire on carbon impregnated fiberglass core
• Resistance: 350 Ohms/Ft
• Boot Materials: Ceramic (spark plug end), Silicone (distributor end)
• Distributor Terminal: Male/HEI (socket)
• Spark Plug Boot Angle: 90 degrees
• Compatibility: Small Block Chevy (SBC) engines with under-header routing and dragster HEI distributor.

HOW TO USE:

• Disconnect the negative battery terminal.
• Remove the old spark plug wires from the spark plugs and distributor.
• Select the appropriate pre-made or custom wire for each cylinder.
• For custom wires, measure and cut the wire to the desired length.
• Use the included crimping tool to attach the boots and terminals to the wire ends.
• Apply dielectric grease to the inside of the boots.
• Connect the spark plug wires to the spark plugs and distributor in the correct firing order.
• Secure the wires using the included wire separators.
• Reconnect the negative battery terminal.
• Start the engine and verify proper operation.

BENEFITS OF USING THE FITECH SBC(UH) DRAGSTER HEI DIST END 90/90 SPARK PLUG WIRE KIT (90018):

• Improved engine performance through consistent spark delivery.
• Reduced risk of ignition failure due to heat damage.
• Flexible installation options for various engine setups.
• Minimized interference with electronic components.
• Reliable connections.

FEATURES:

• Ceramic boots rated for high temperature applications.
• Spiral wound core for effective RFI/EMI suppression.
• Pre-terminated and unterminated wires are included.
• Included crimping tool for custom installations.
• Wire separation and wire labels included.
• Double silicone wire jacket.
